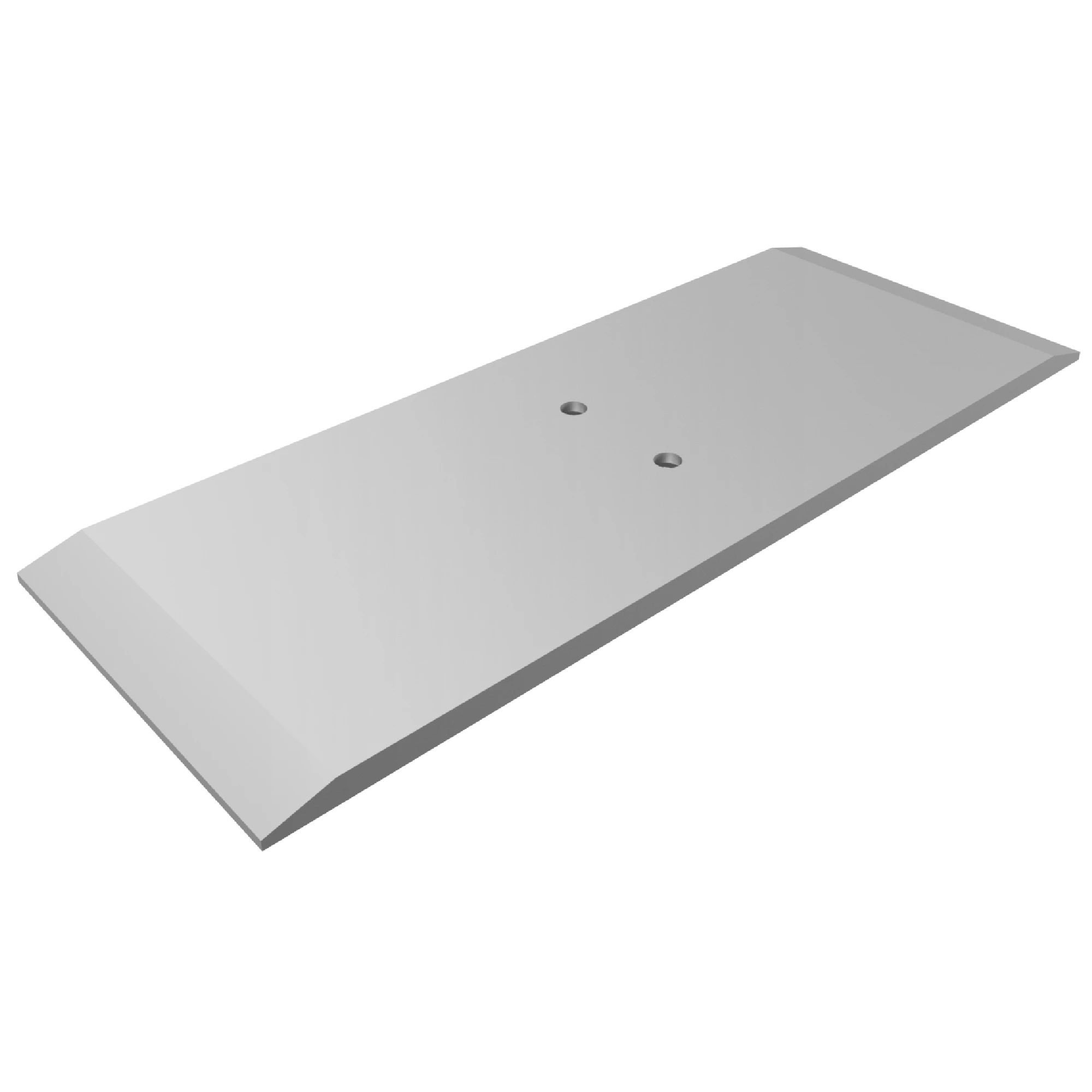

M 1347.21Base platefor M 1307L 320 × W 120 × H 8 mm
additional accessories for trade fairs
Accessories that complete the system.
Additional accessories round off octanorm setups with base plates and castors for mobility, holders for cables, panels and brochures, hinges and doors, connectors, tension locks and screws. Small parts that add functionality, stability and a finished look to the system.
Base plates and castors
7

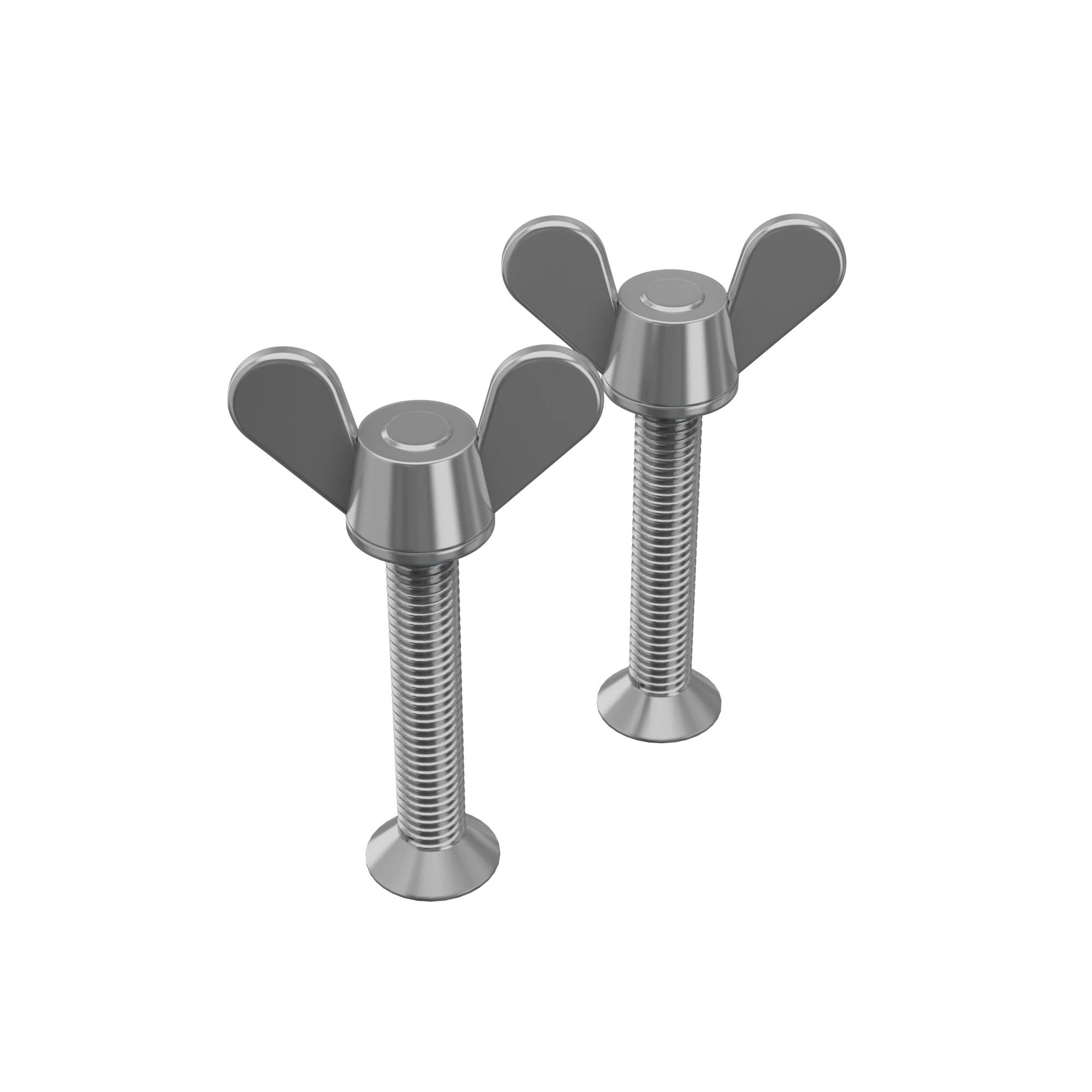

M 1347/SK.90Fixing setfor M 1357 / M 1347L 61 × W 32 × H 17 mm

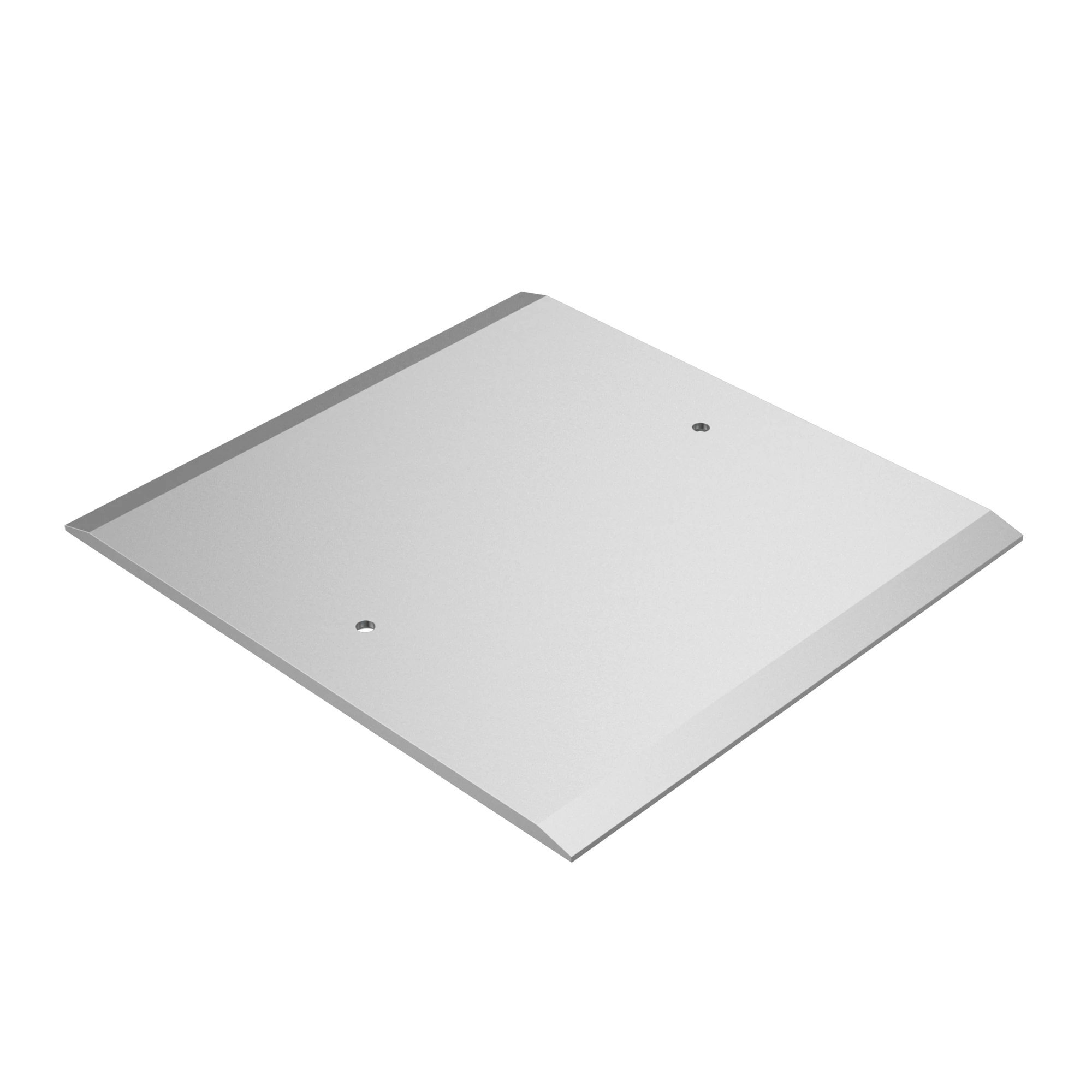

M 1357.21Base platefor M 1307L 320 × W 300 × H 8 mm

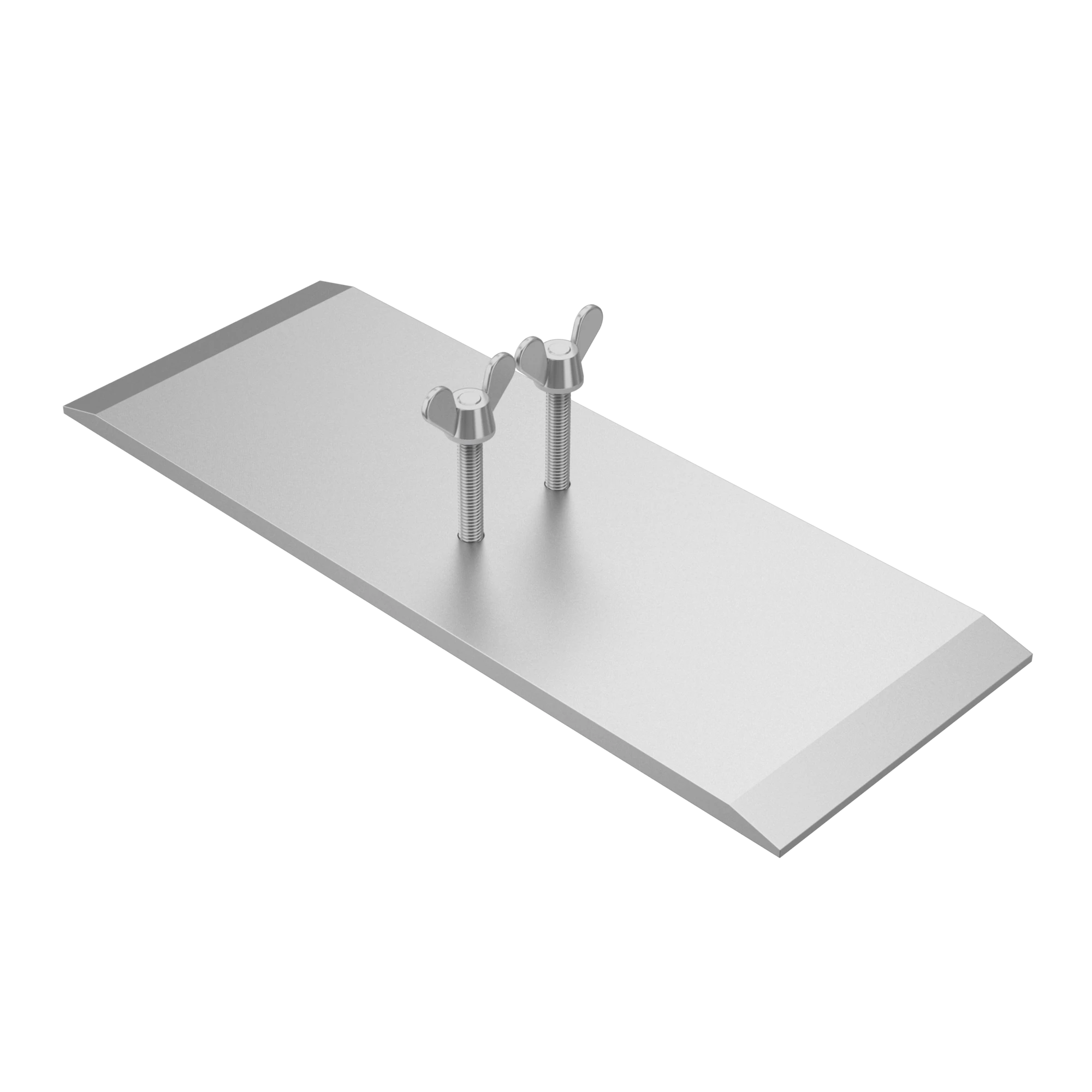

M 1398.21Base platefor M 1307L 320 × W 120 × H 8 mm

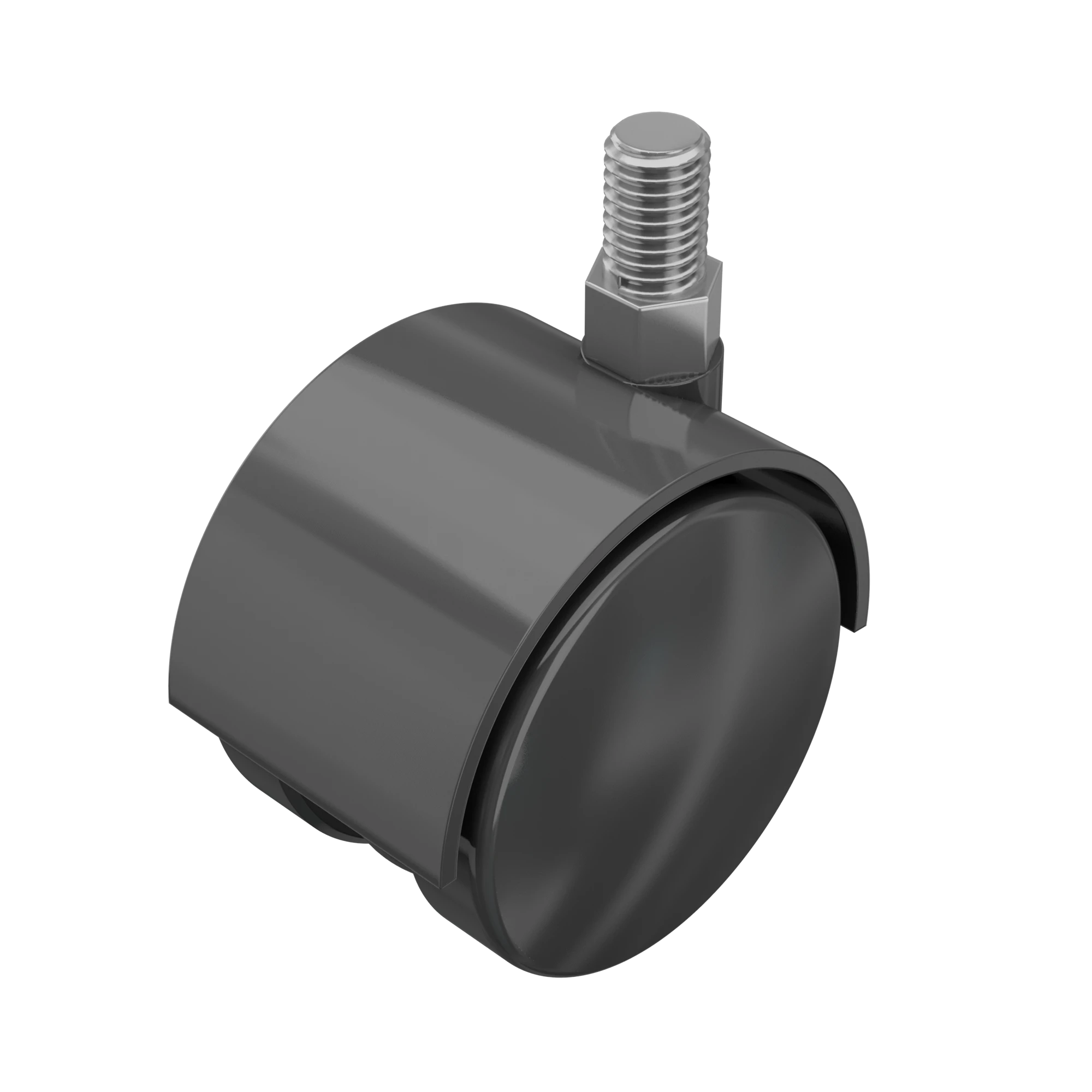

S 745.33Castormax 55 kgL 52 × W 46 × H 78 mm

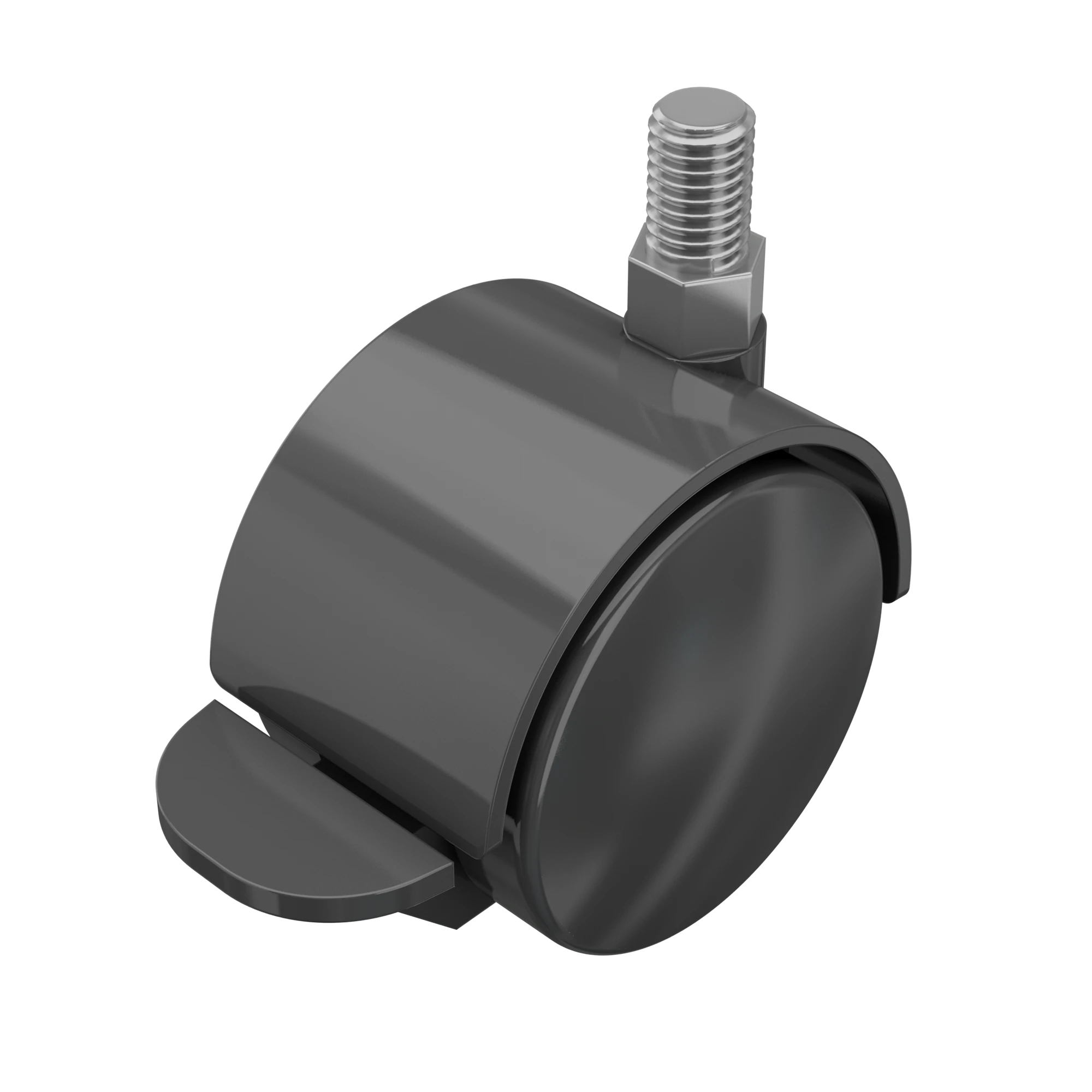

S 746.33Castorwith brakemax 55 kgL 52 × W 46 × H 78 mm

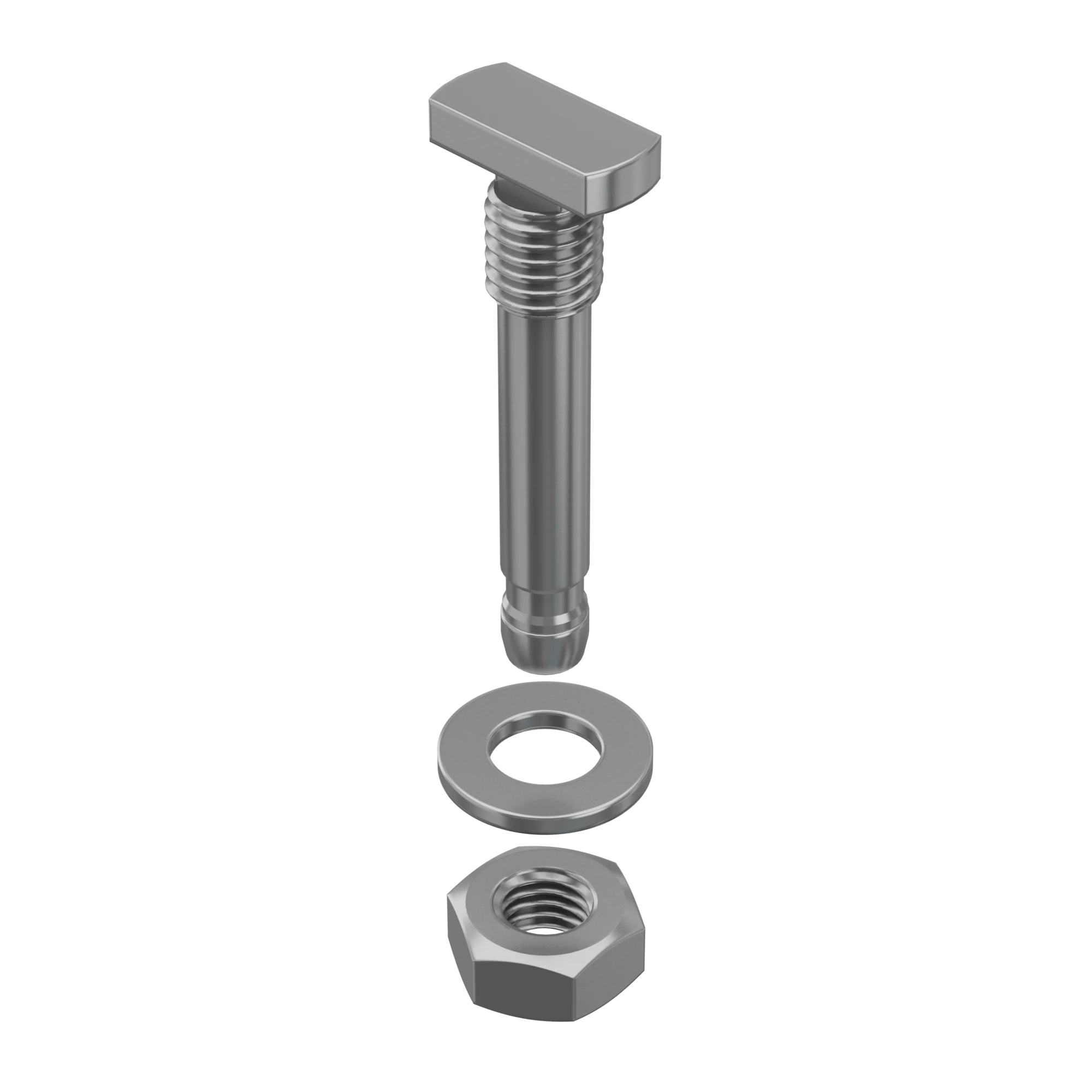

S 748.37Bolt for castor wheelsfor S 745/S 746L 48 × W 20 × H 20 mm
Holders
7

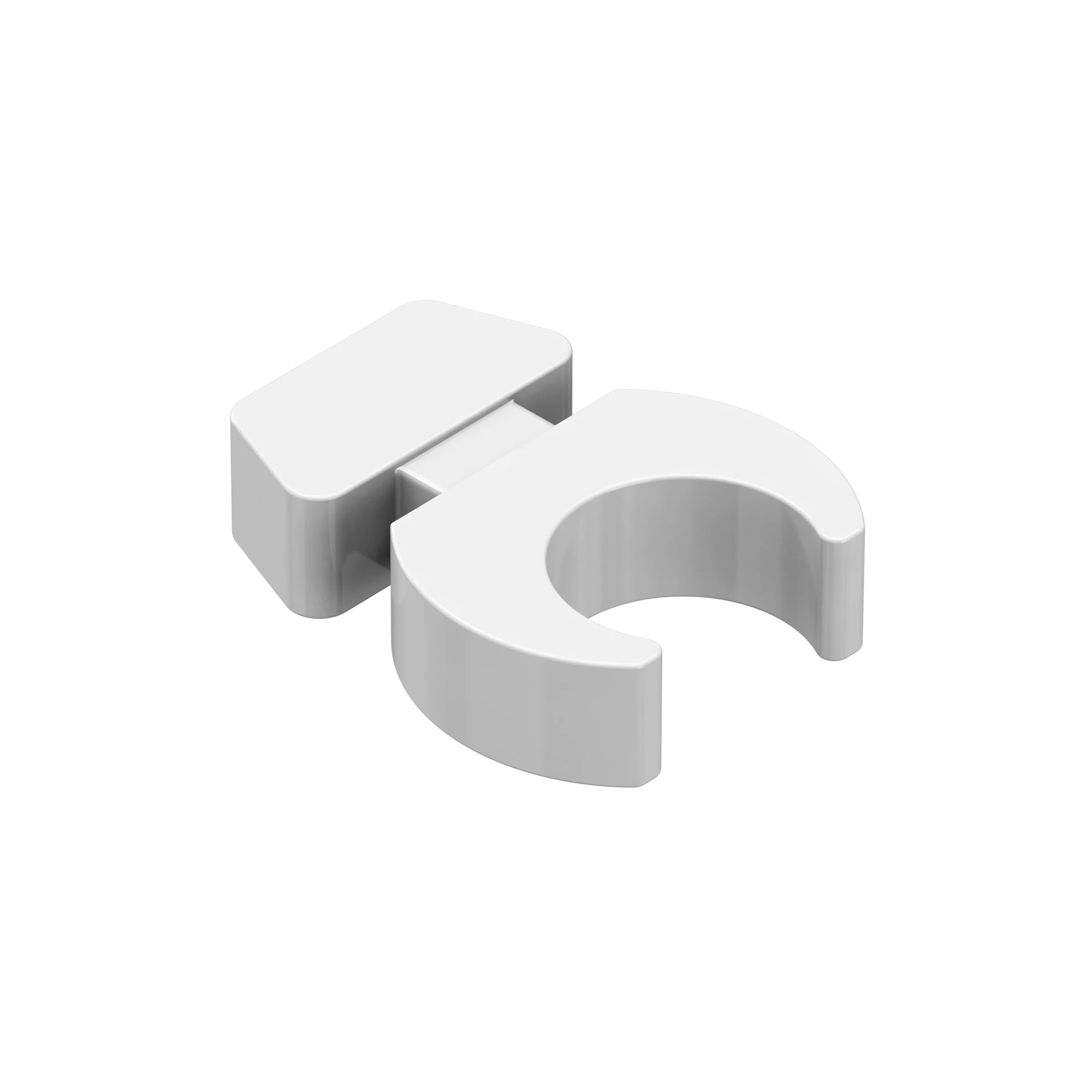

E 245.30Clipfor cablesL 16 × W 12 × H 4 mm

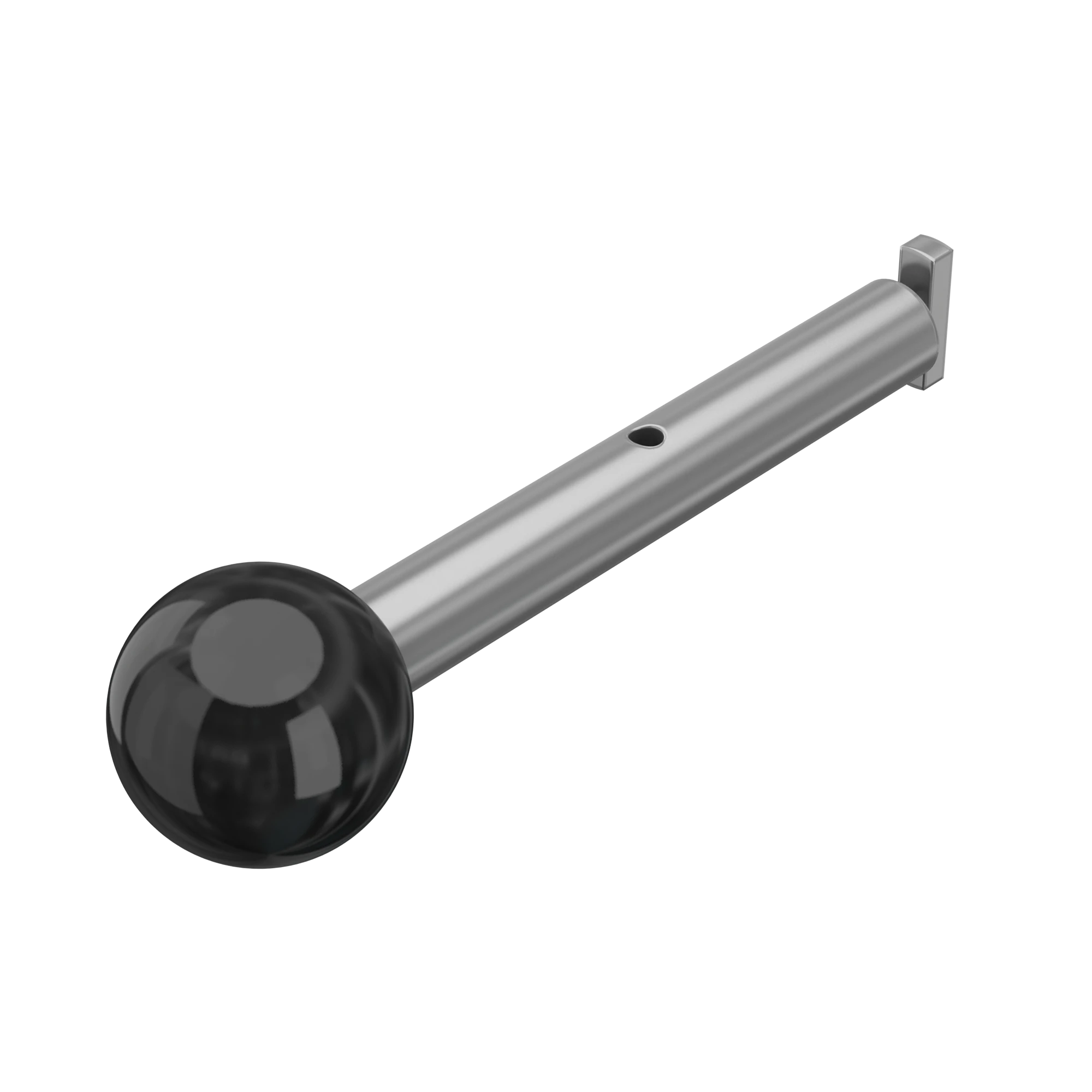

E 275.38Bag holdermax. 15 kgfor system groove

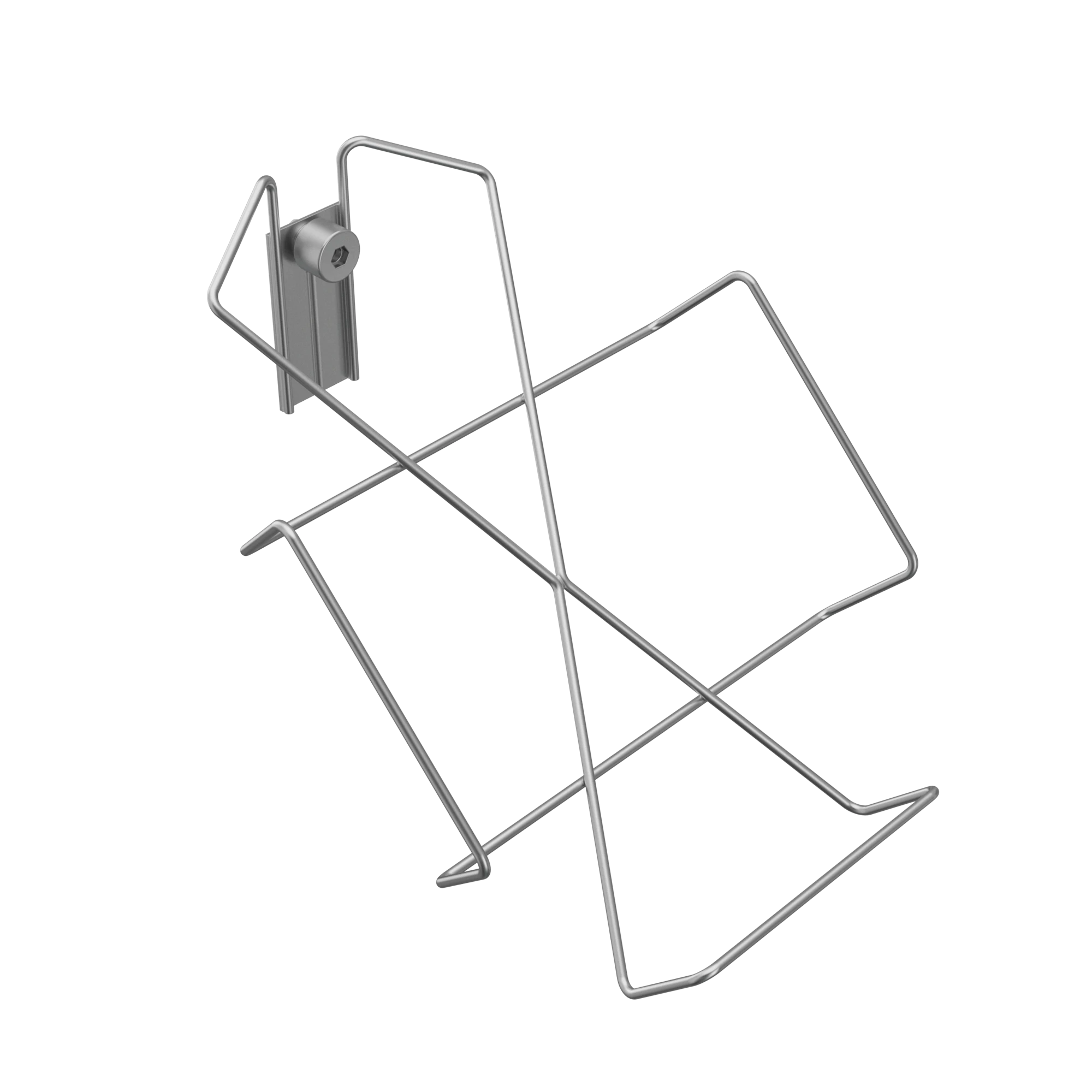

E 277.21Brochure shelf45°for DIN A4

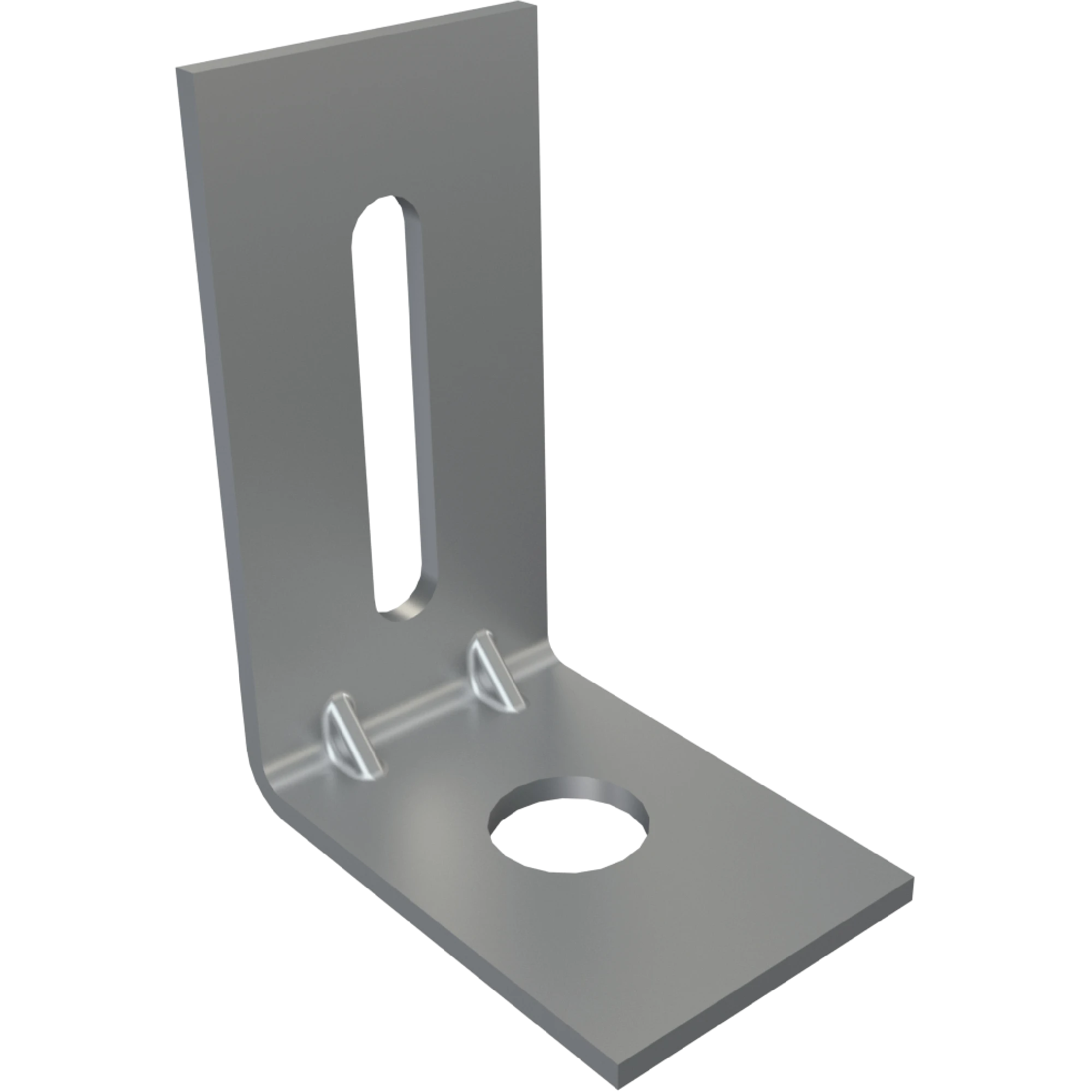

M 1077.37Fixing angleL 40 × W 30 × H 20 mm

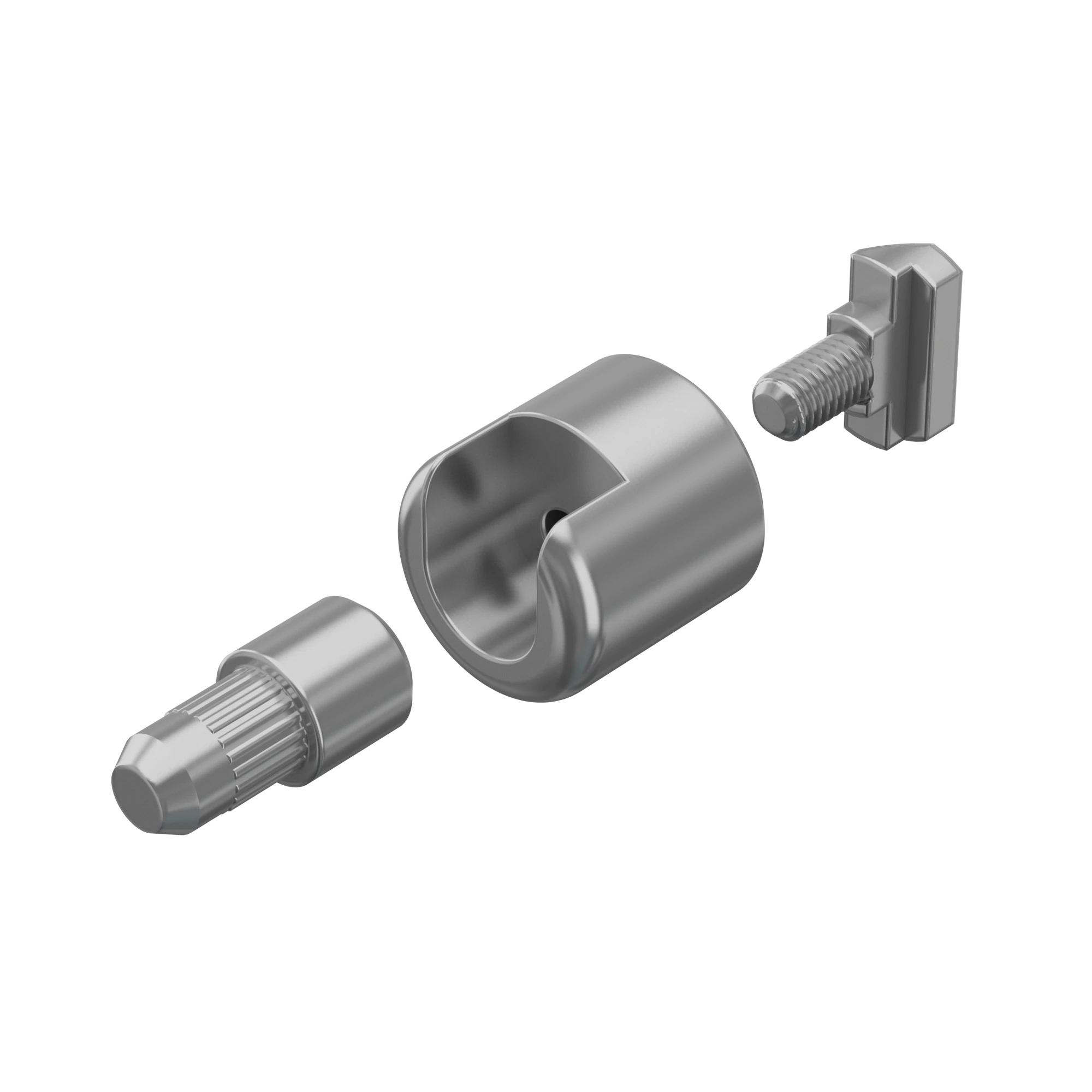

M 1369.37Fixing setfor bannerL 140 × W 80 × H 20 mm

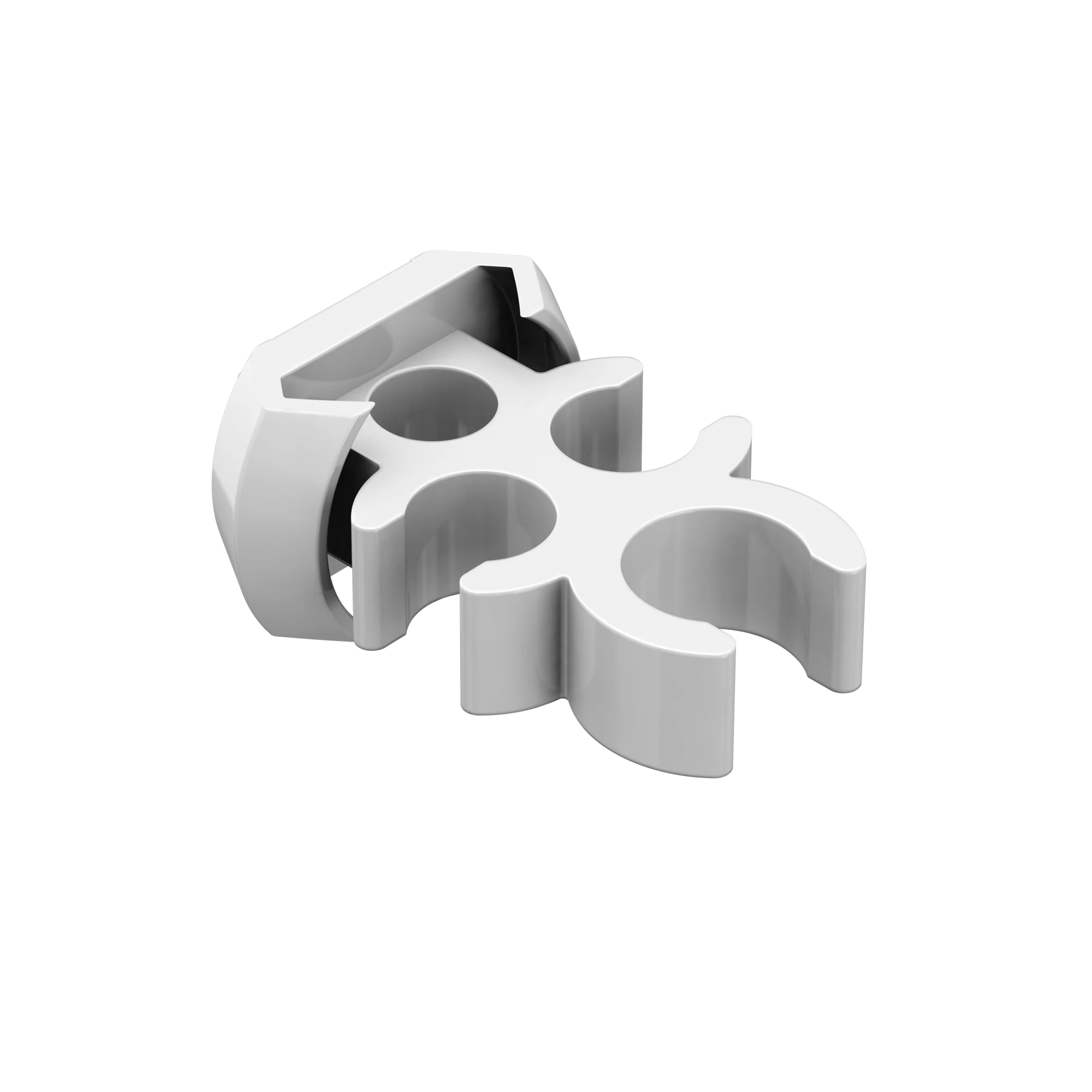

M 1488.35Clipfor cablesL 36 × W 25 × H 15 mm

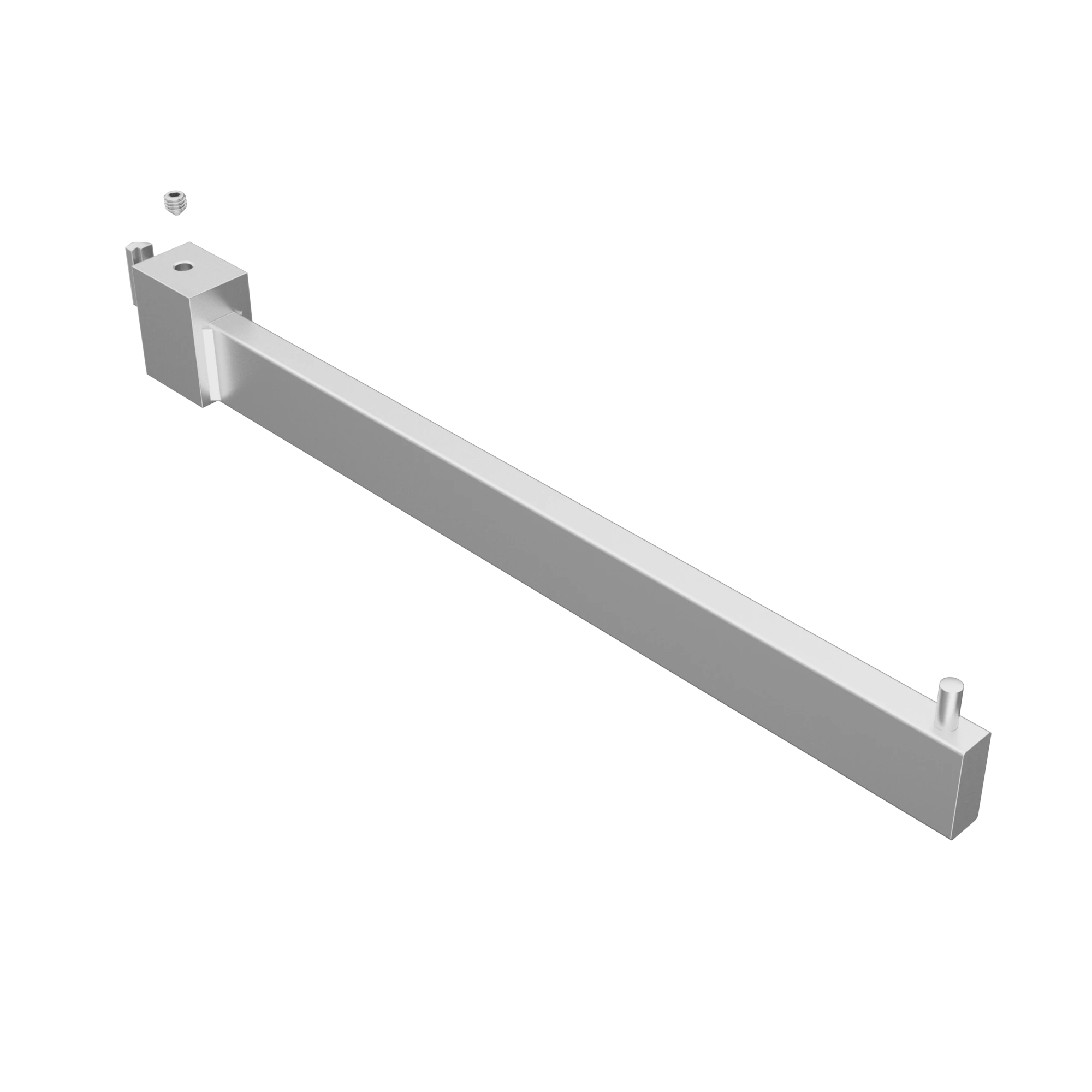

M 1582.21Front suspension barmax. 15 kgfor system groove 4.3 mmL 276 × W 25 × H 25 mm
Doors
3

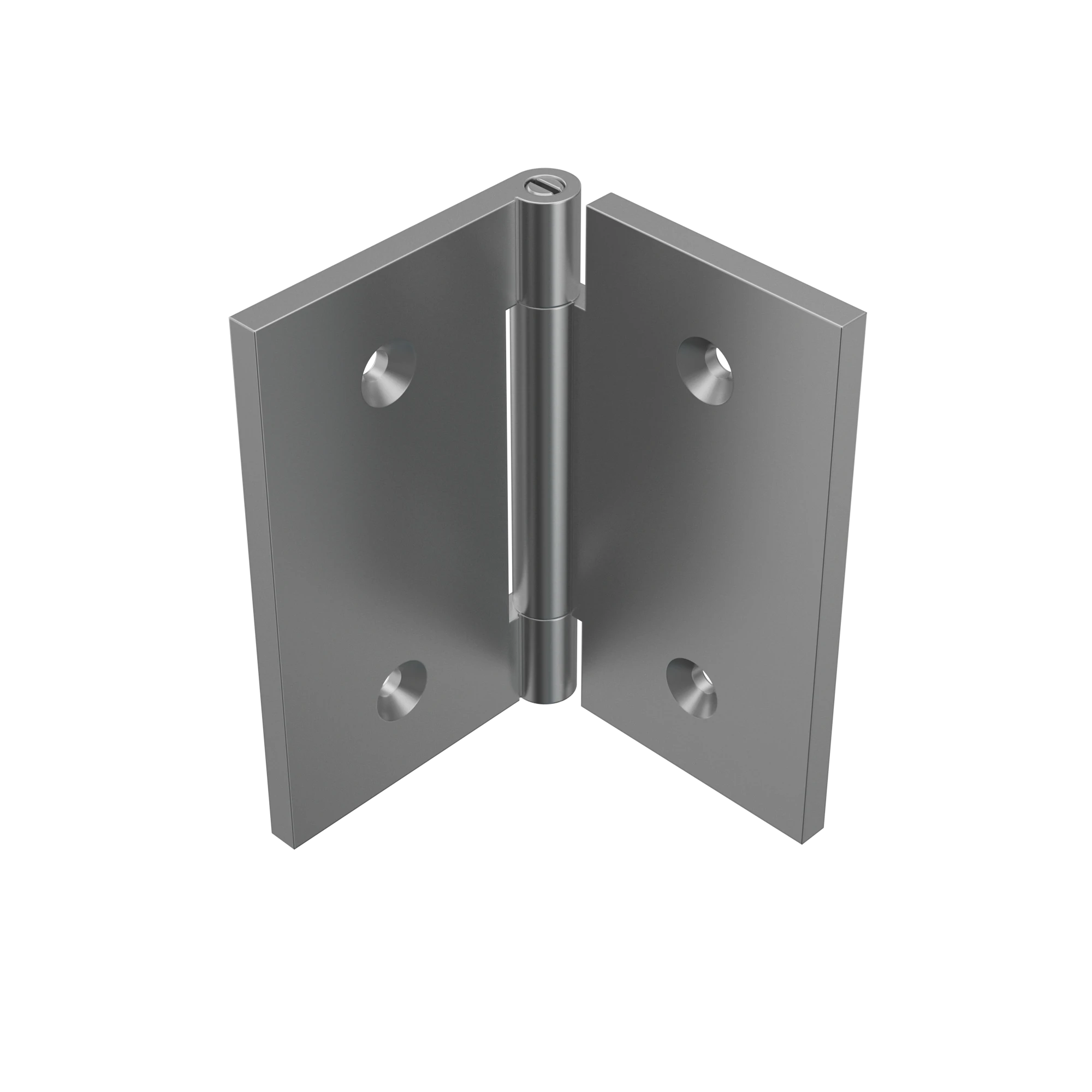

E 306.01Door hingefor system grooveL 80 × W 94 × H 5 mm

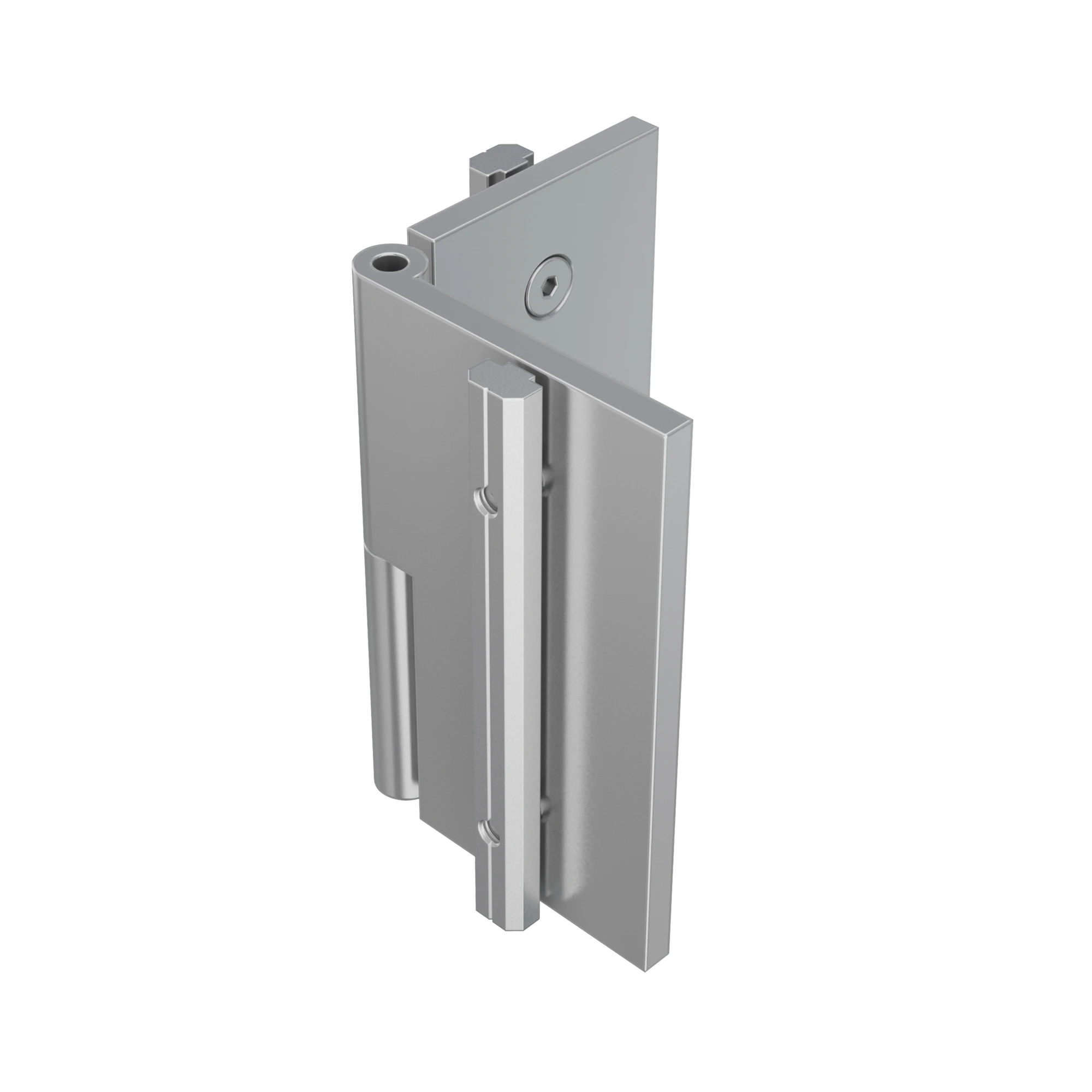

E 307/L.01Door hingeleftL 80 × W 80 × H 5 mm

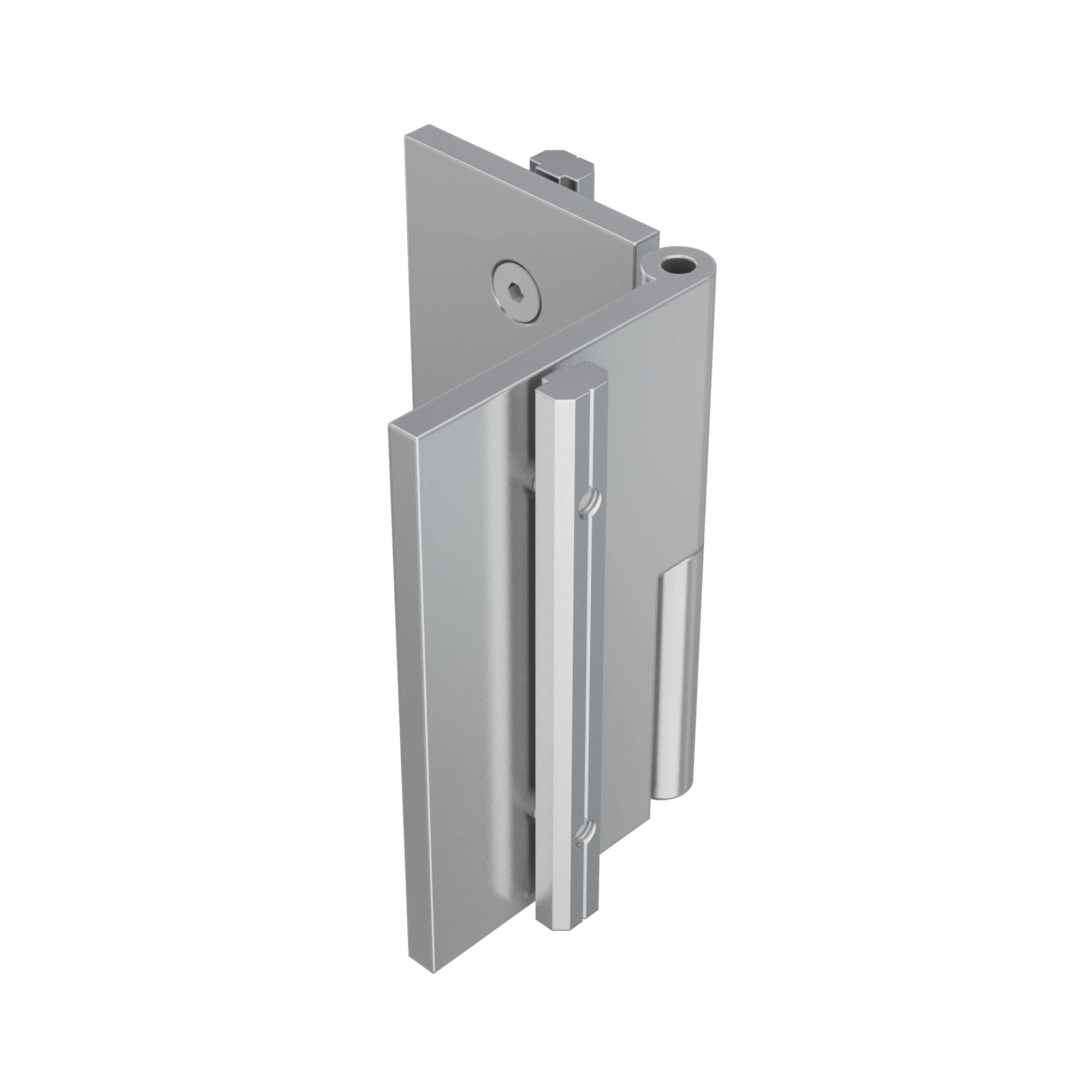

E 307/R.01Door hingeL 80 × W 80 × H 5 mm
Hinges
2

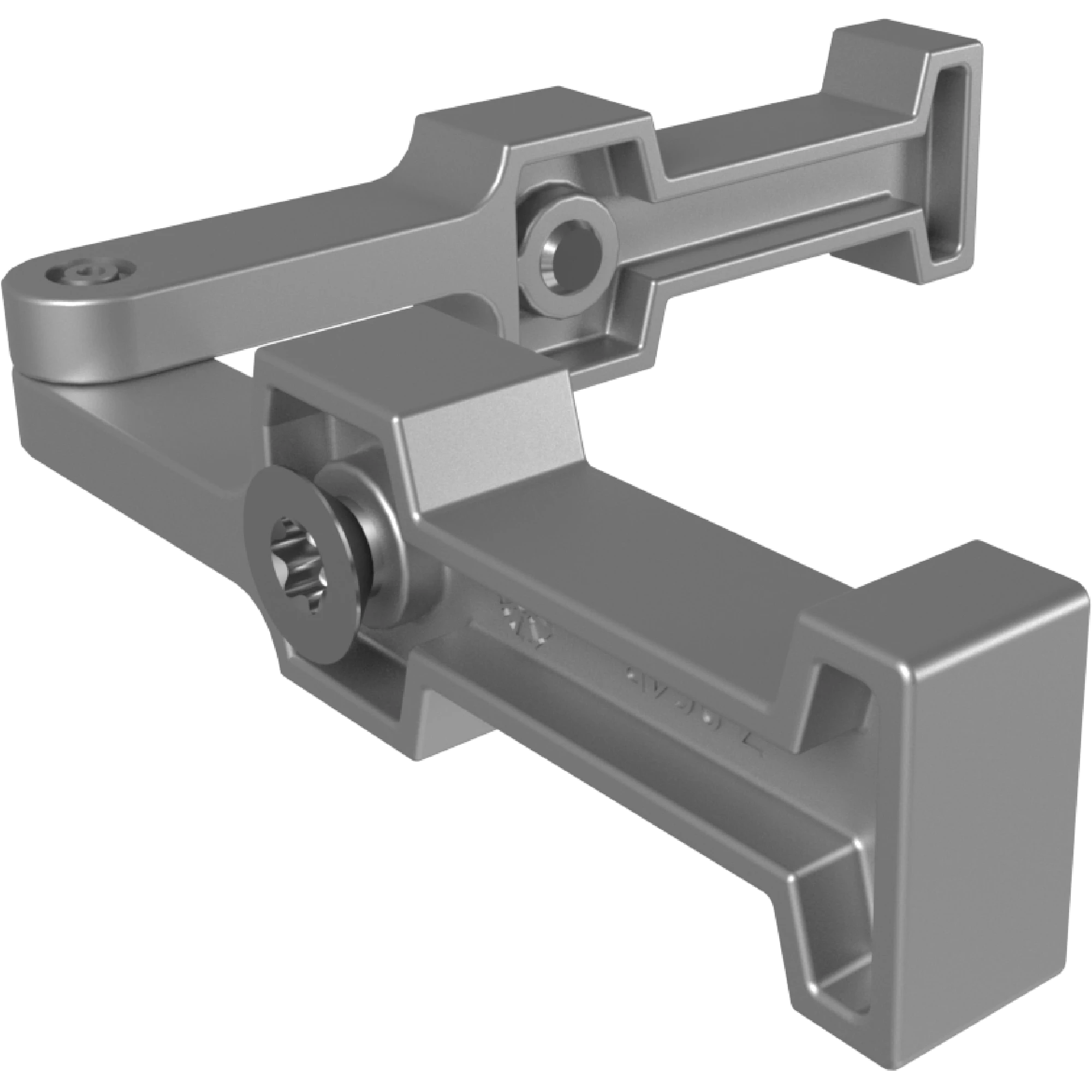

Z 964B.00Internal corner connector22.5° - 337.5°lock chamber 21 × 12 mm

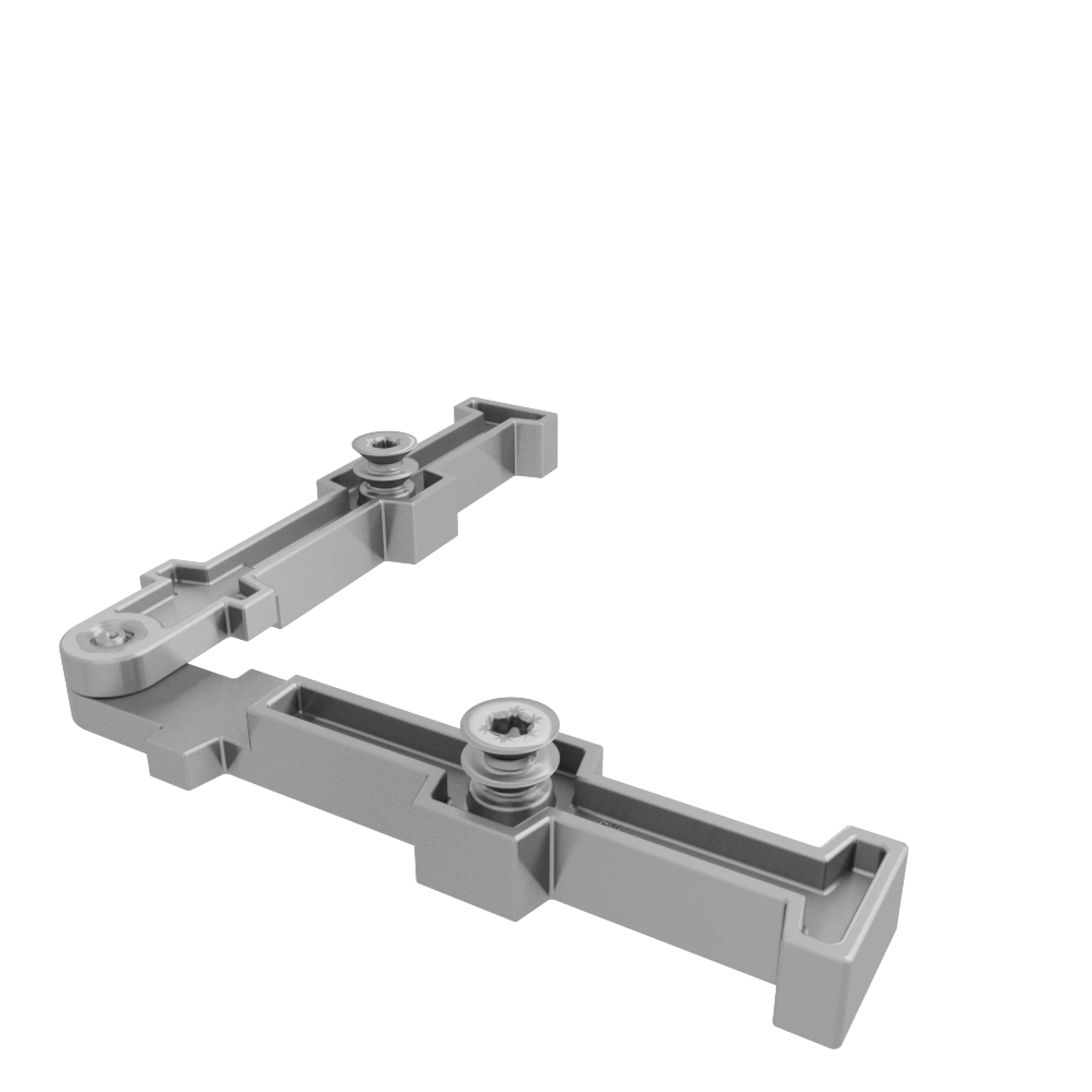

Z 966B/V.00Internal corner connector22.5° - 337.5°lock chamber 21 × 12 mm
Connectors
9

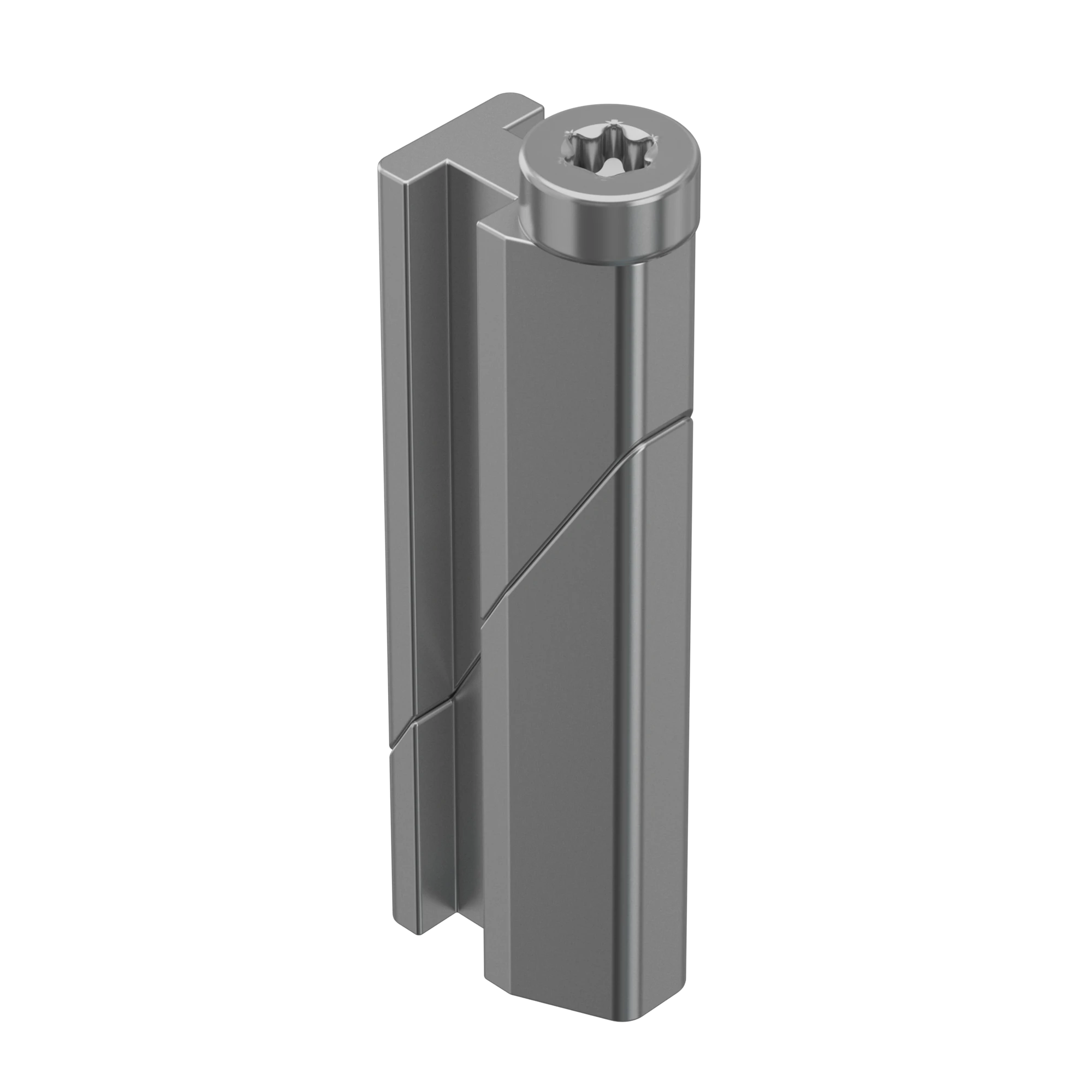

E 261.00Connecting clampconicalgroove depth 10 mmL 50 × W 16 × H 10 mm

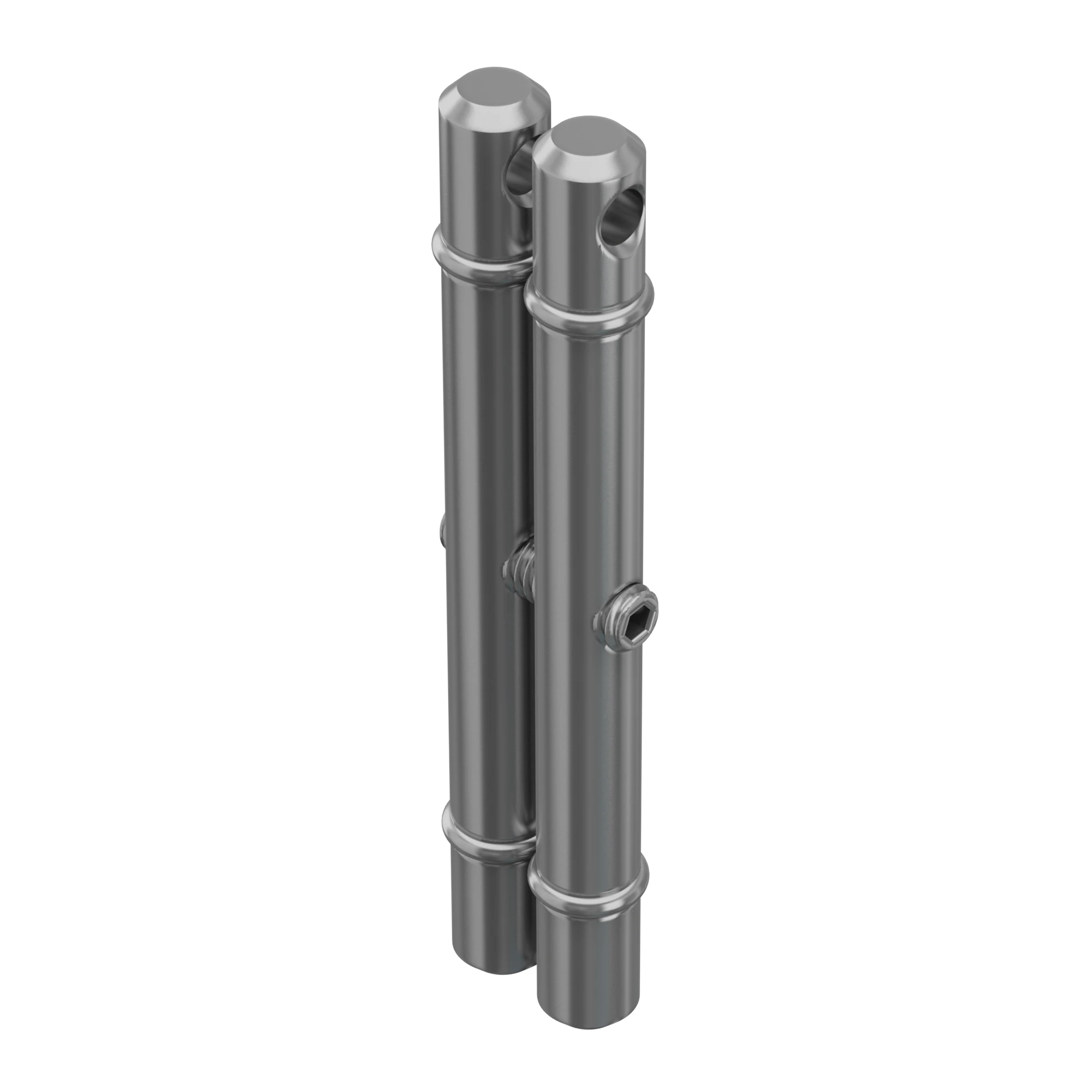

E 262.37Connecting clampgroove depth 7.5 mmL 60 × W 12 × H 6 mm

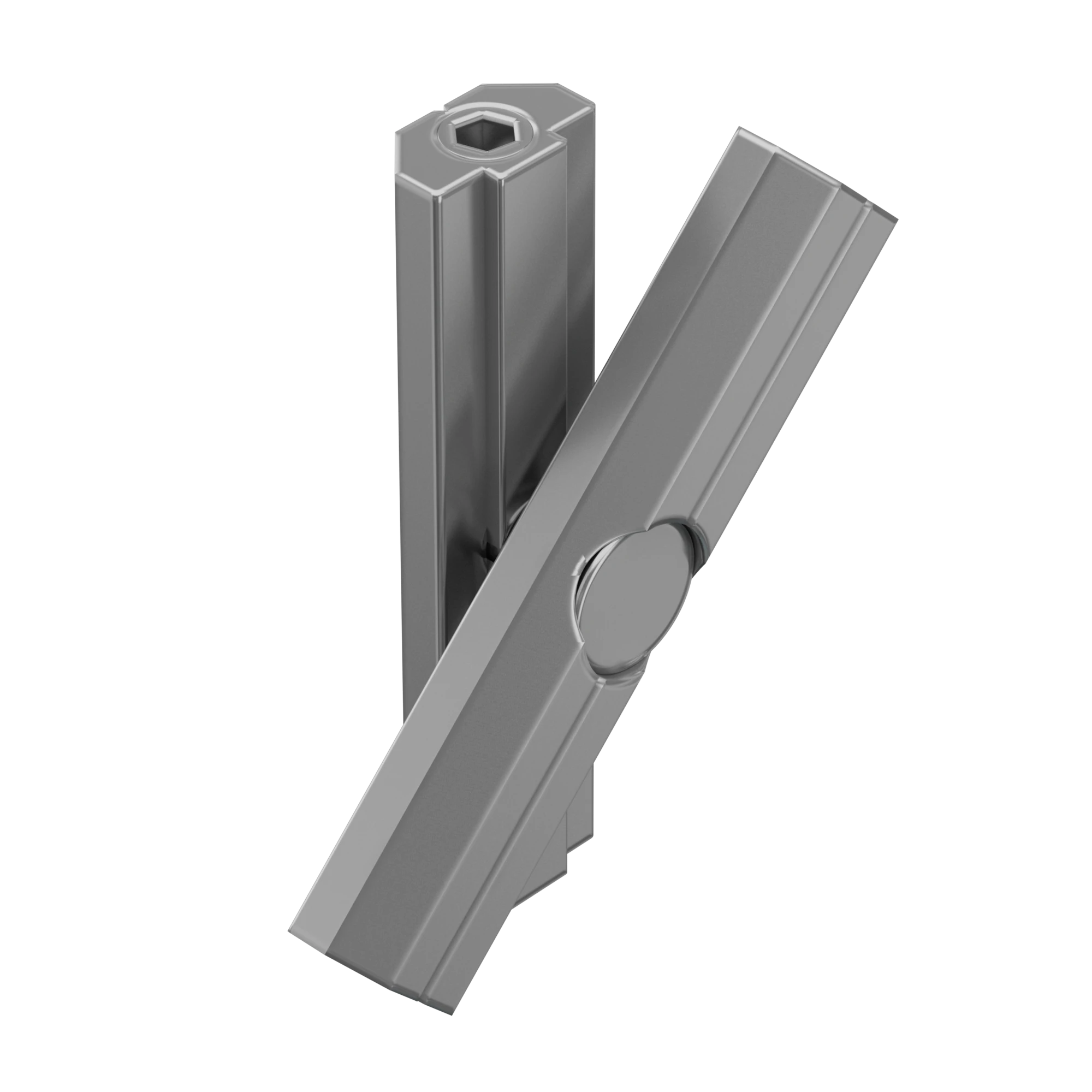

E 263.00Connecting clampgroove depth 7.5 mmL 41 × W 12 × H 10 mm

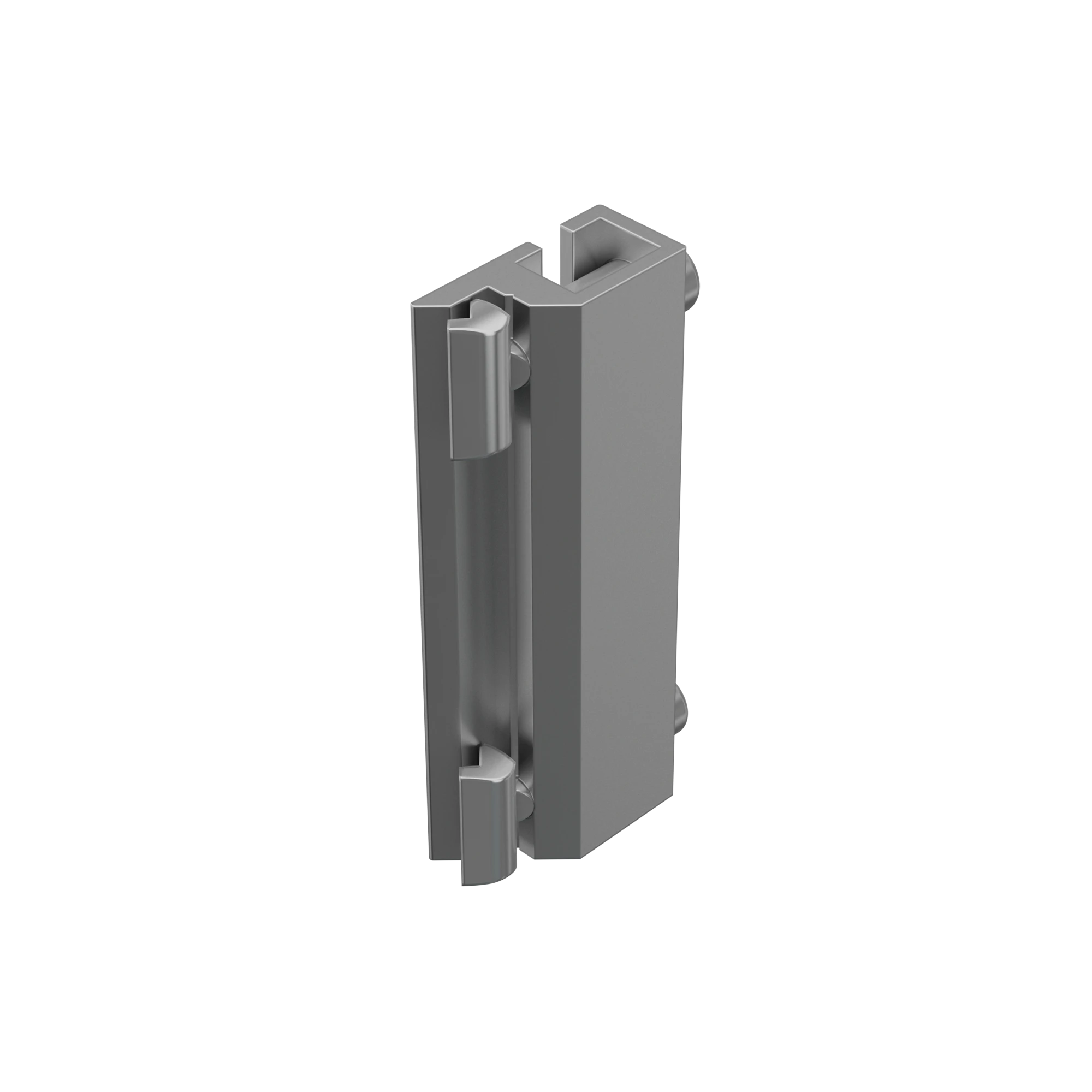

E 702.01Connector part

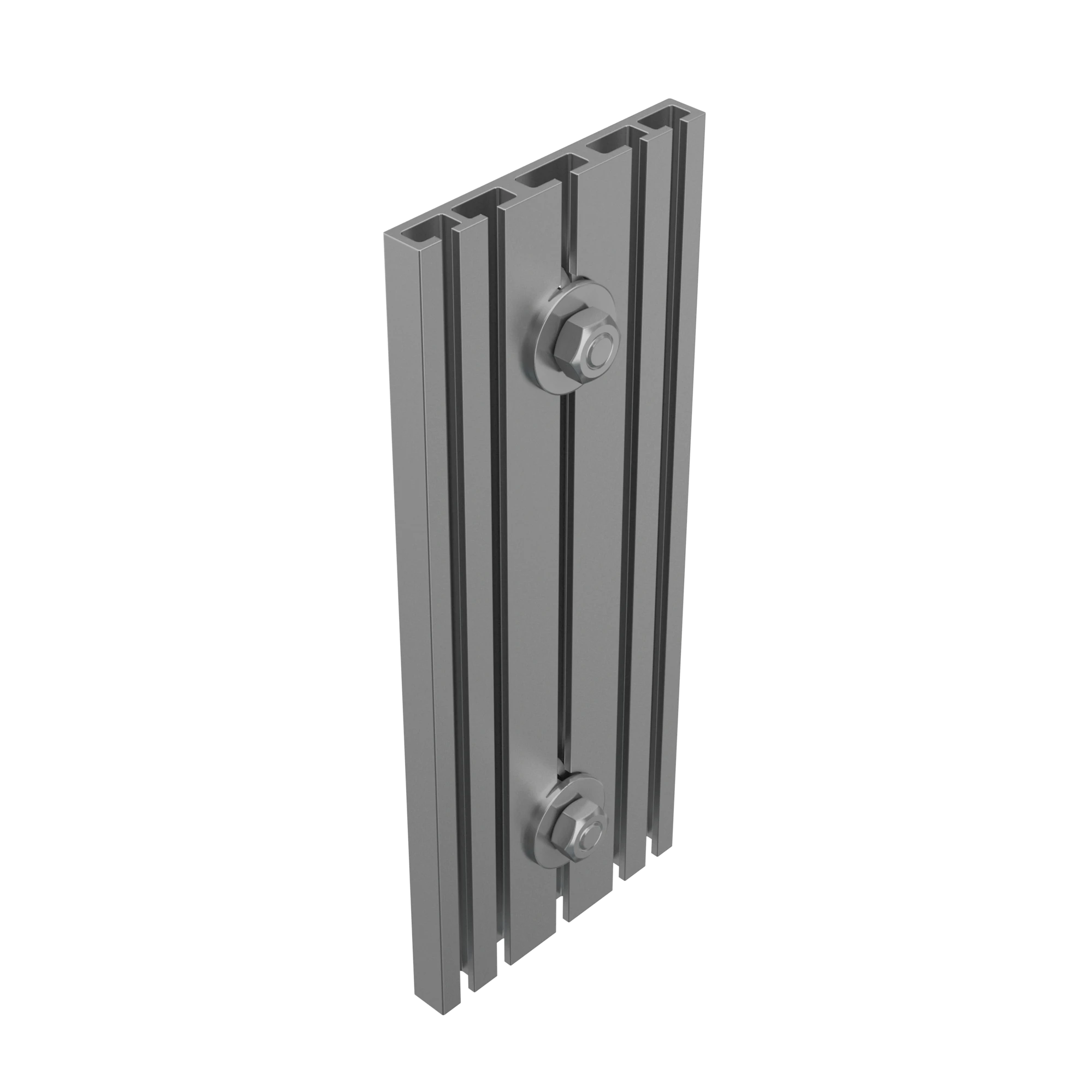

M 1079.01Connector partwith 2 × M 1089for extrusions 80 mmL 80 × W 10 × H 200 mm

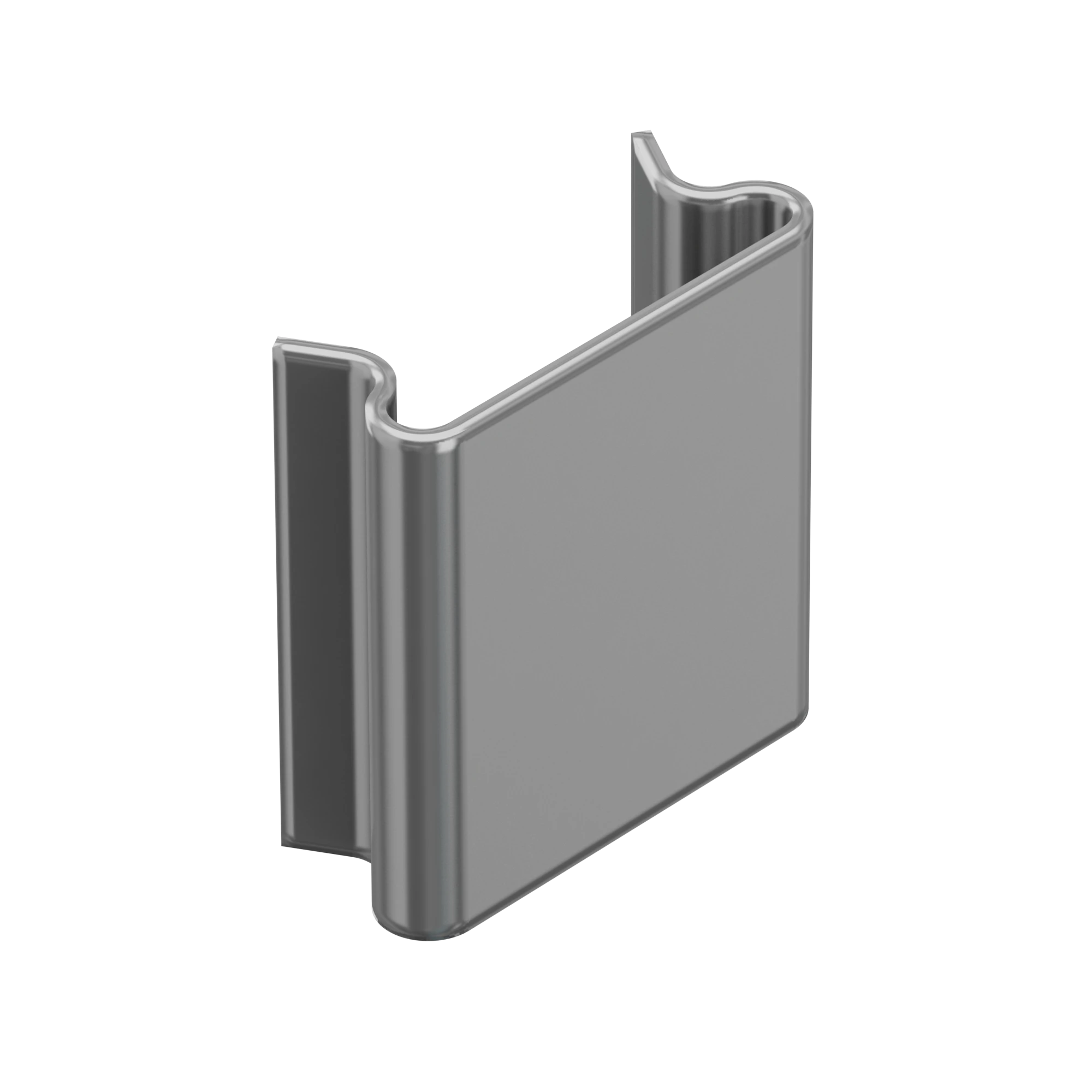

S 1154.44Clipfor extrusionsL 15 × W 14 × H 6 mm

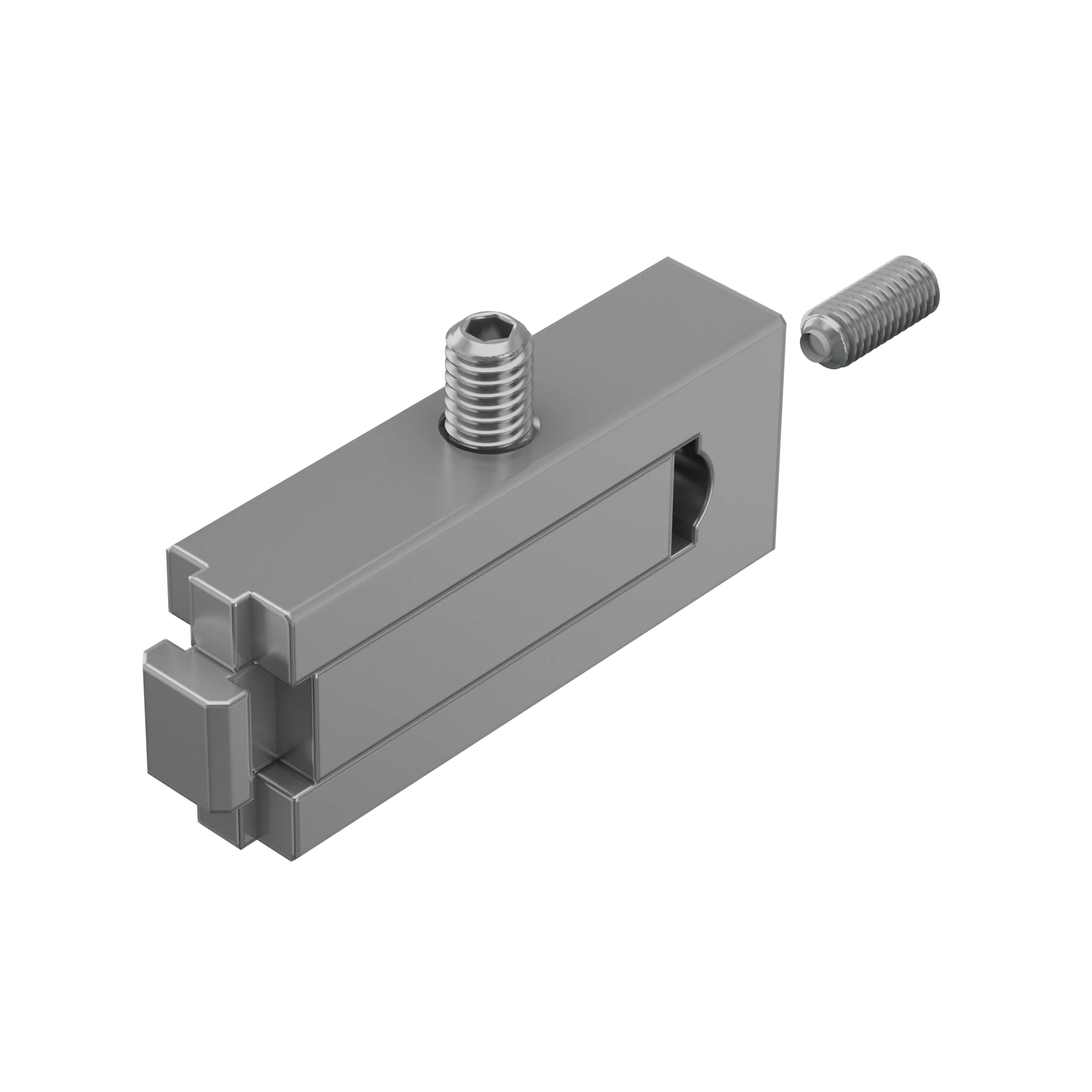

Z 940.37Clamping elementlock chamber 21 × 12 mm

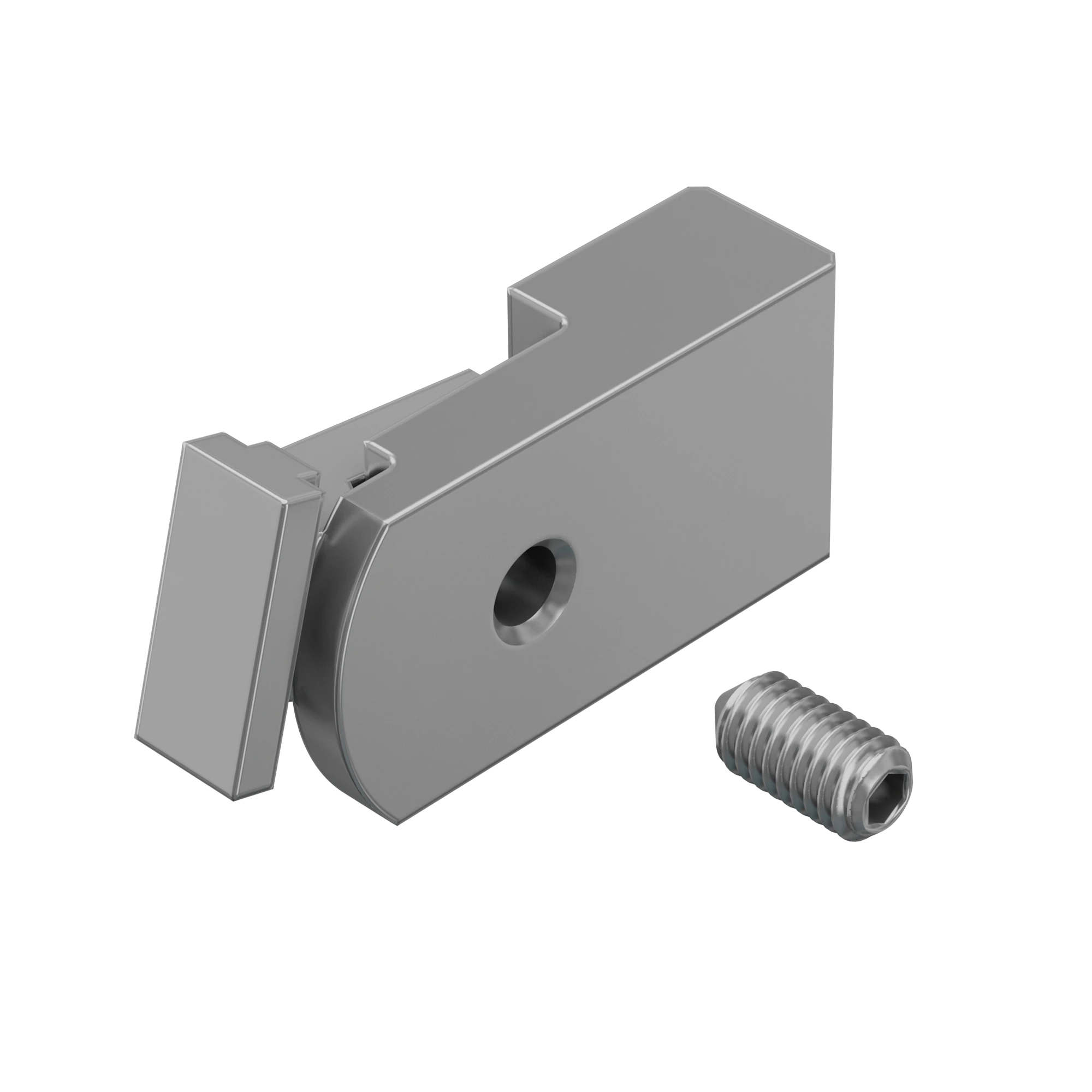

Z 942.37Clamping elementvariable in angle max. 15°for lock chamber 21 × 12 mm

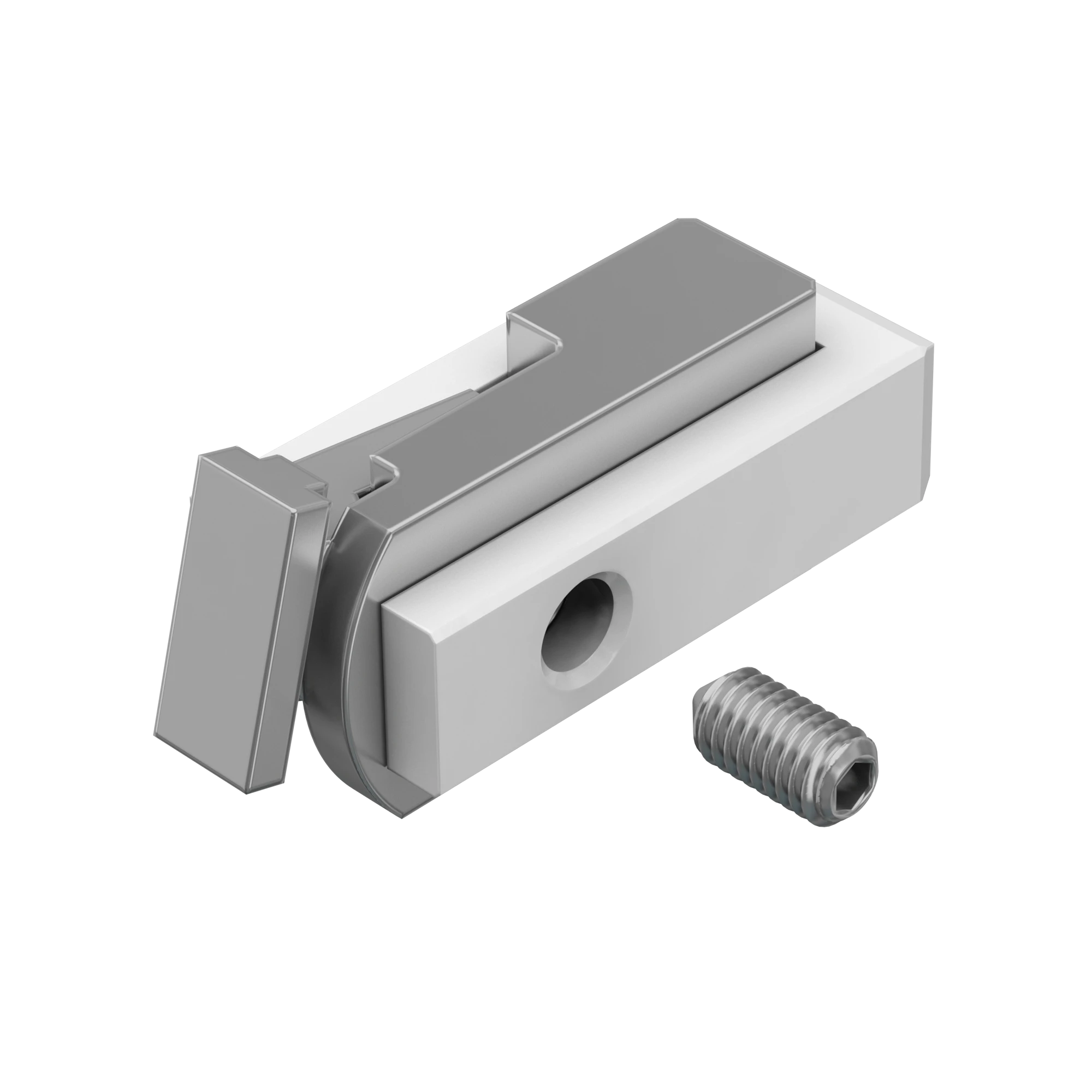

Z 943.37Clamping elementvariable in angle max. 15°for lock chamber 21 × 12 mm
Tension locks
8

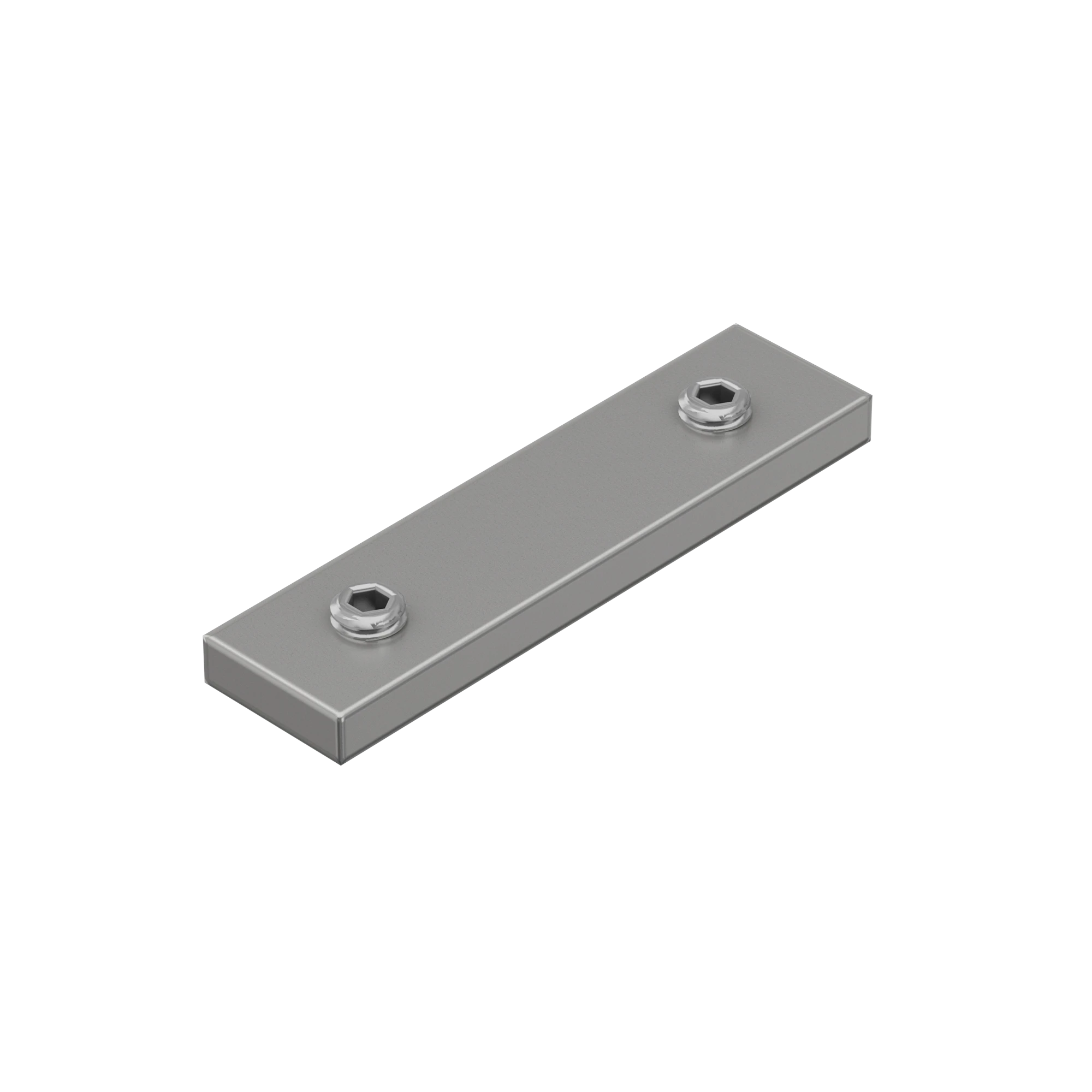

E 212.37Reinforcing platefor groove depth 7.5 mmfor Z 961/13L 40 × W 10 × H 3 mm

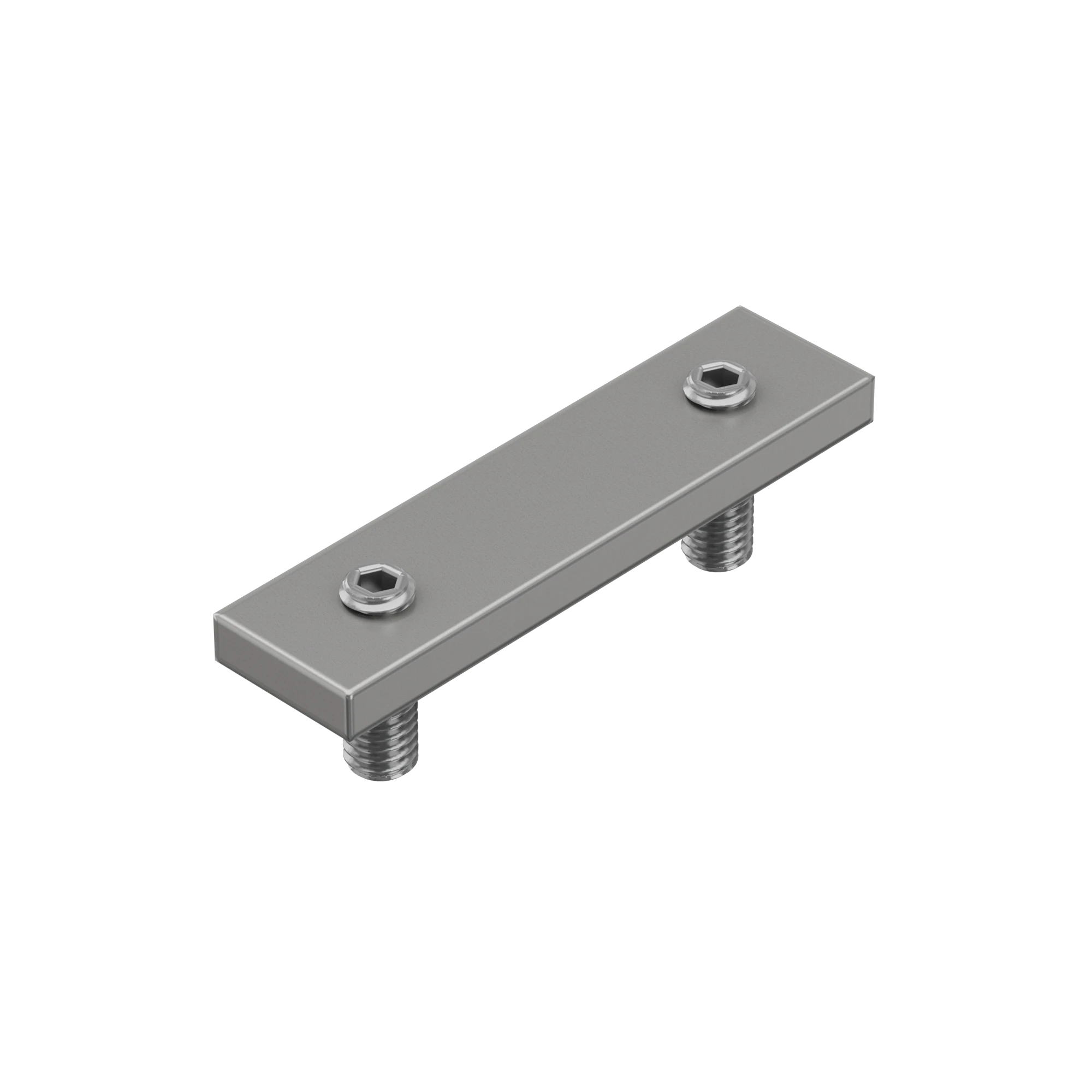

E 213.37Reinforcing platefor groove depth 10 mmfor Z 961/13L 40 × W 10 × H 12 mm
Z 951/13.00Tension lockkey hole aperturelock chamber 21 × 12 mm

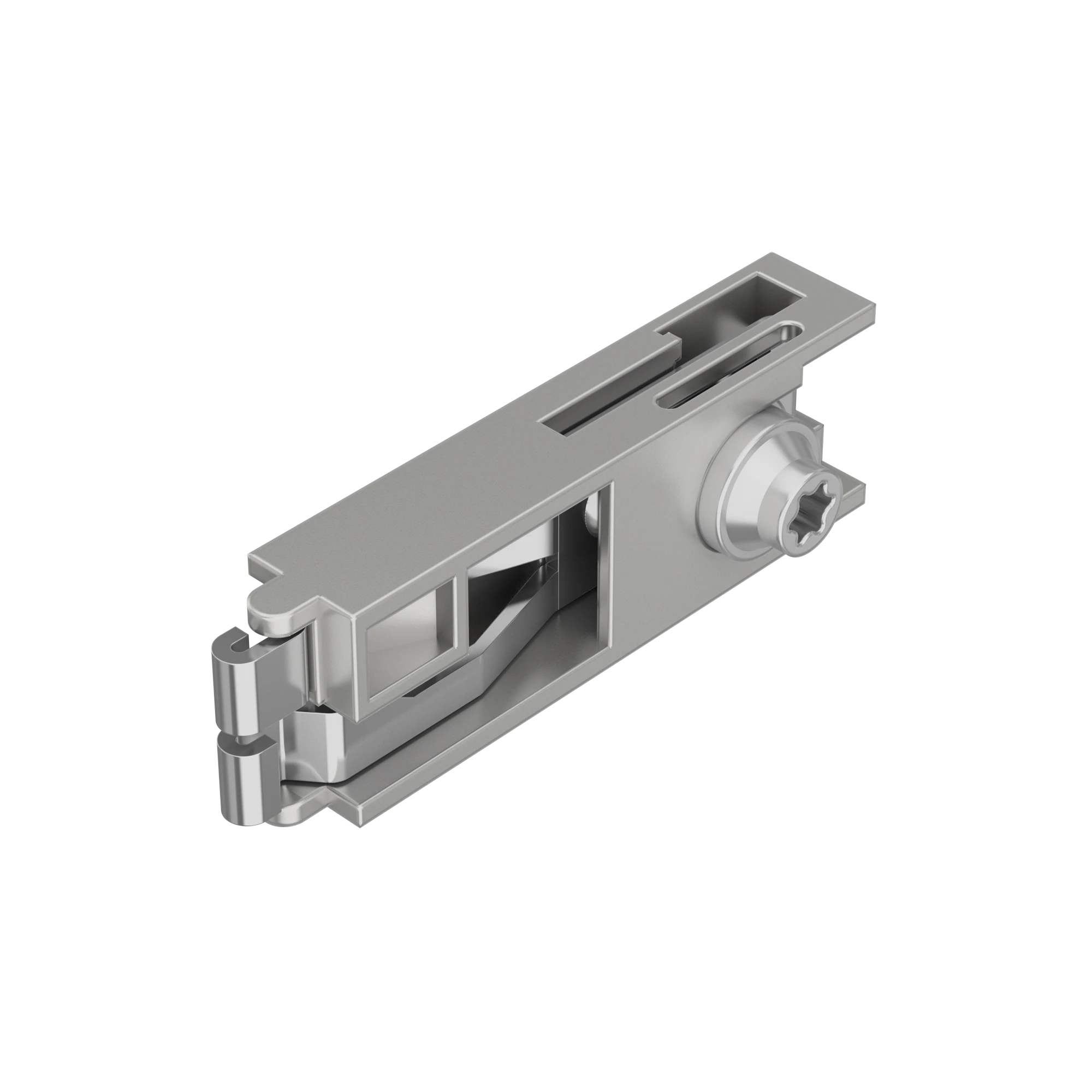

Z 951/8.00Tension lockkey hole aperturelock chamber 21 × 12 mm

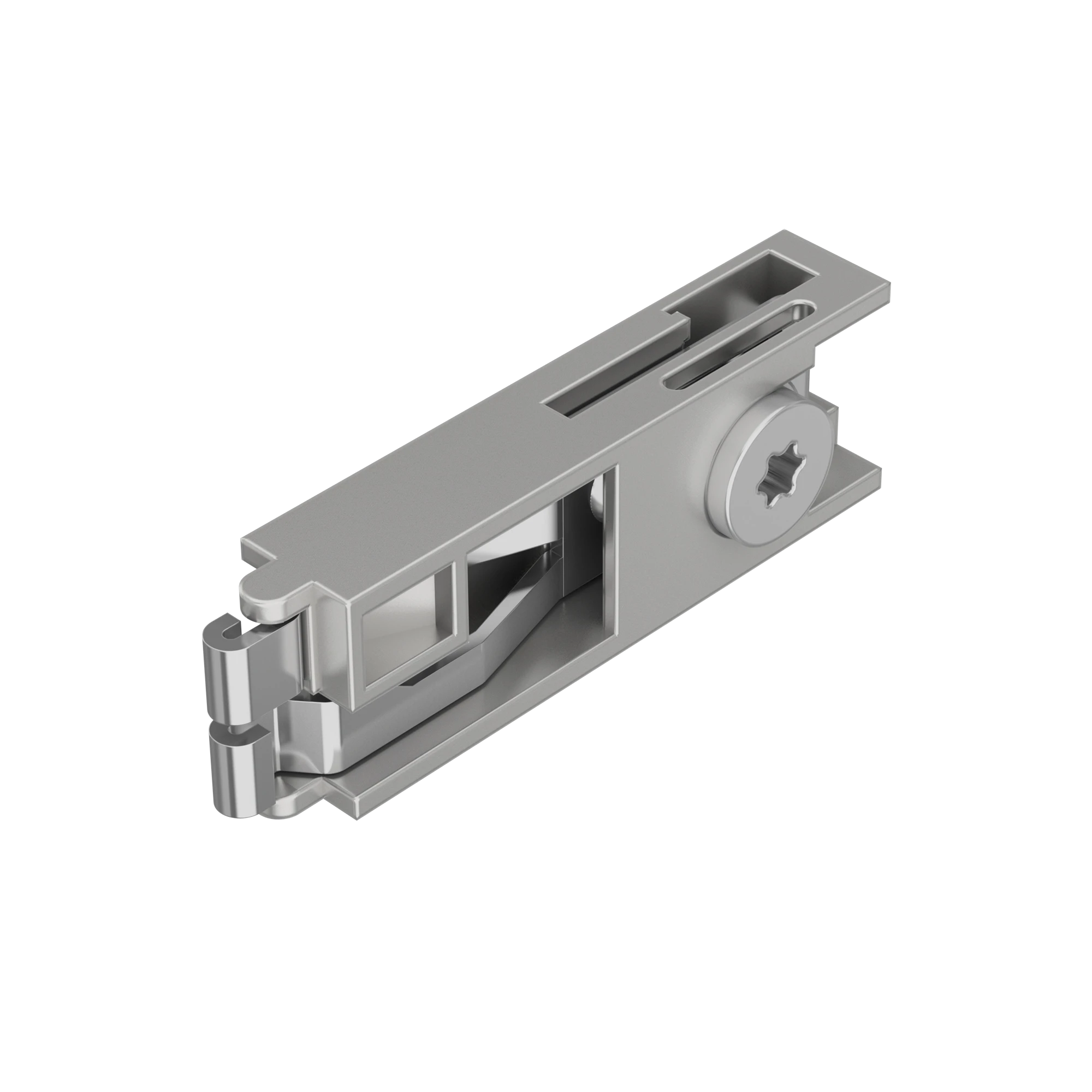

Z 961/13.00Tension lock13 mmL 70 × W 21 × H 13 mm

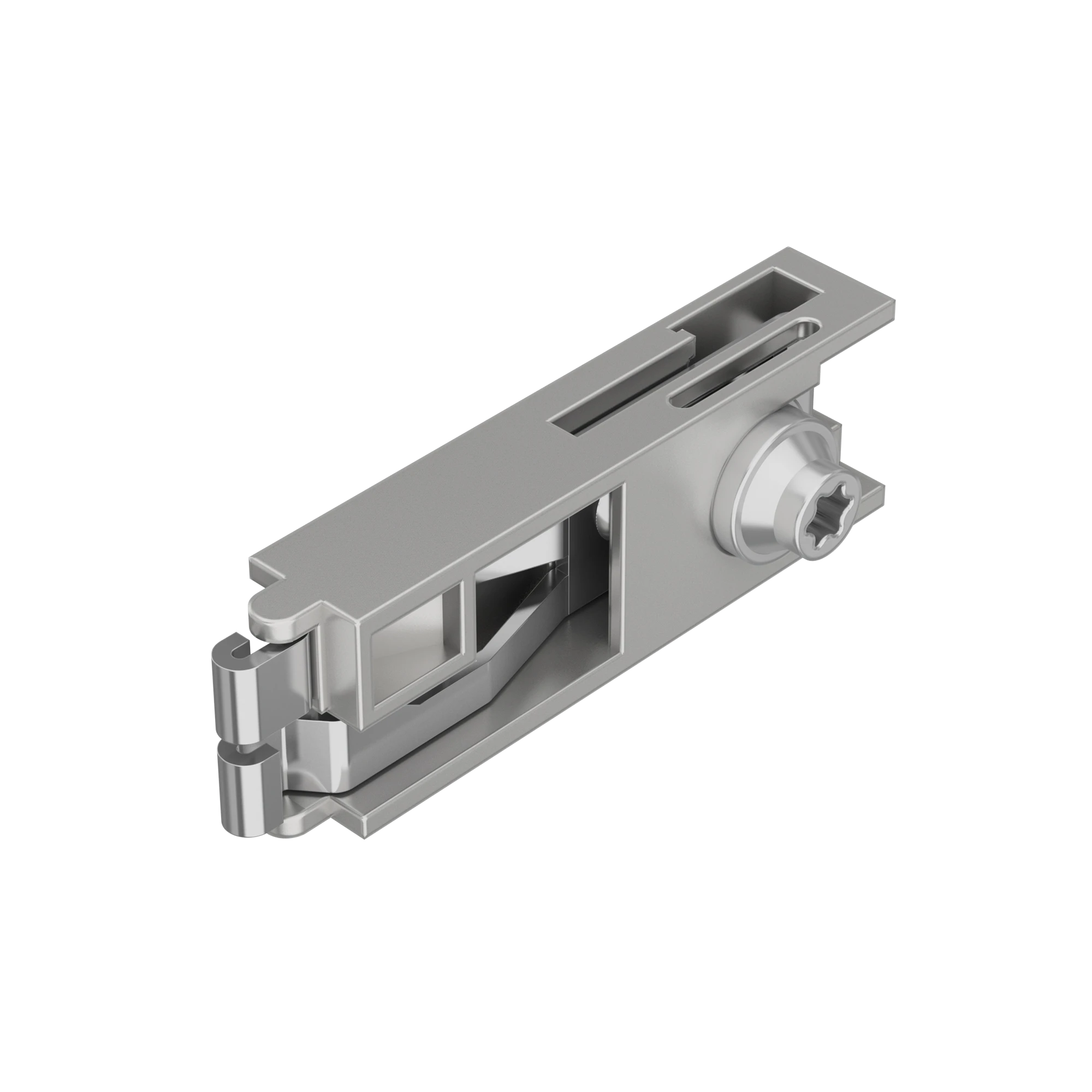

Z 961/8.00Tension lock8 mmL 70 × W 20 × H 12 mm

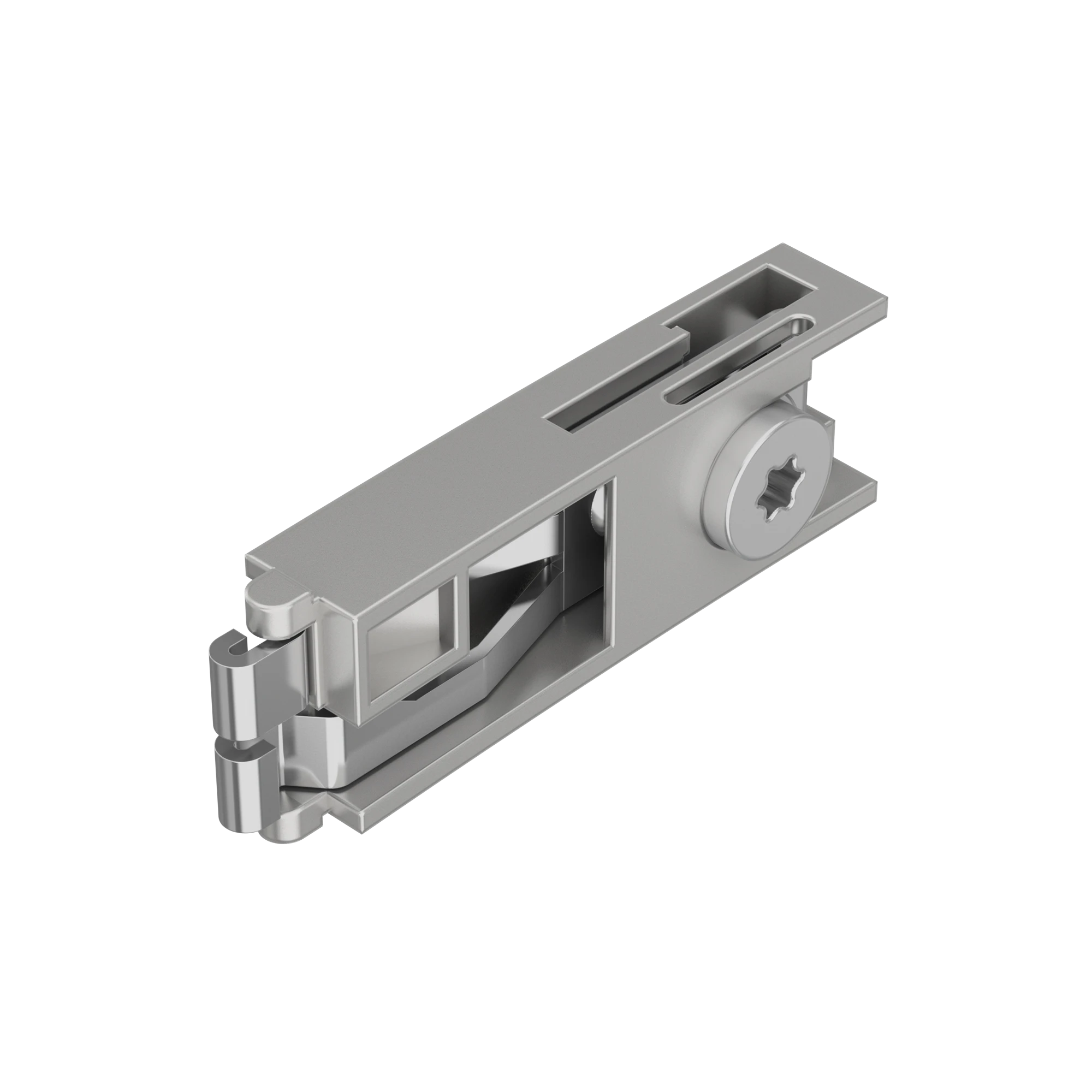

Z 962/13.00Curved beam tension lock13 mmfor curved extrusionsL 70 × W 23 × H 13 mm

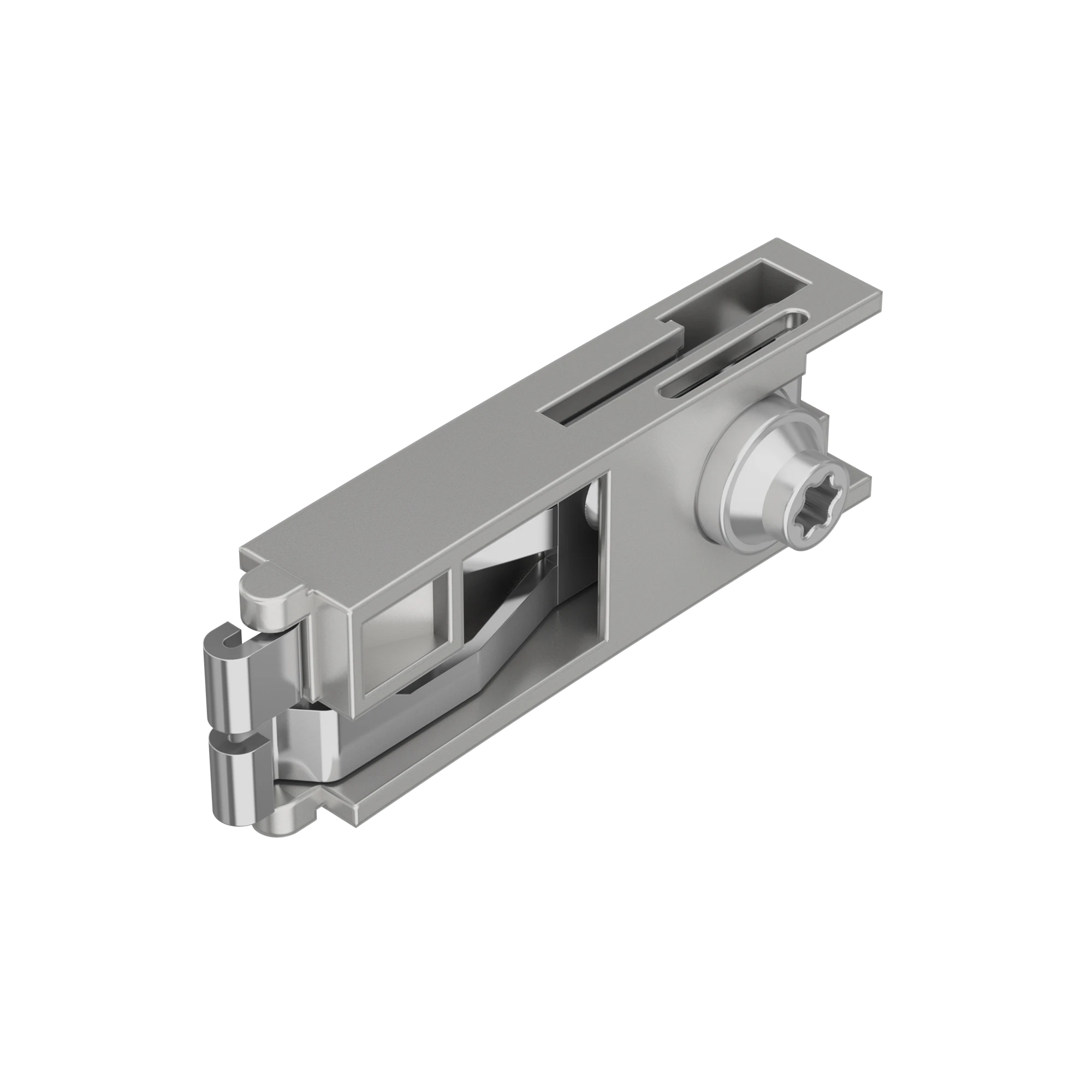

Z 962/8.00Curved beam tension lock8 mmfor curved extrusionsL 70 × W 21 × H 12 mm
Screws
13

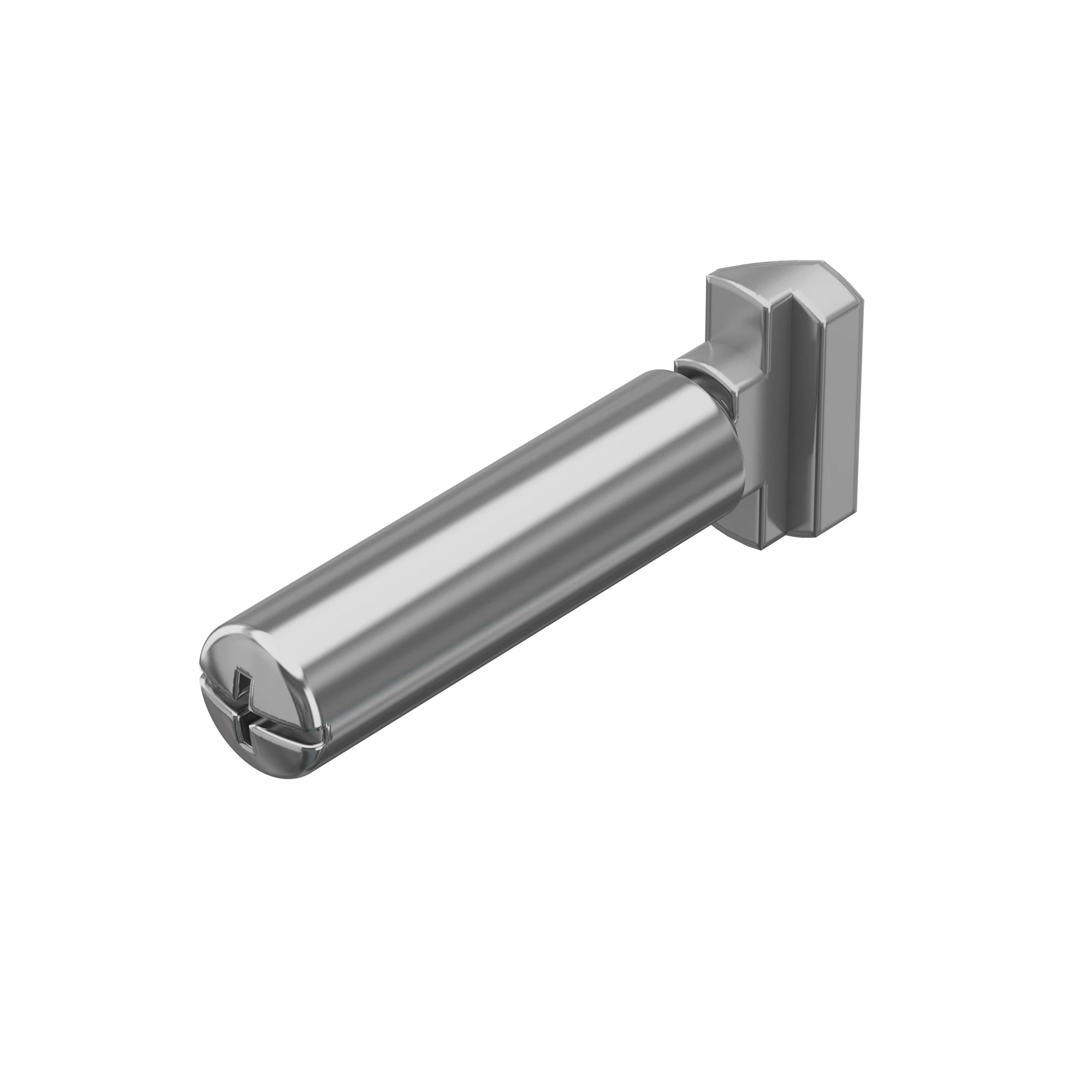

E 203.38Hammerhead screwcombination cross-slotmax. 35 kgL 30 × W 8 × H 8 mm

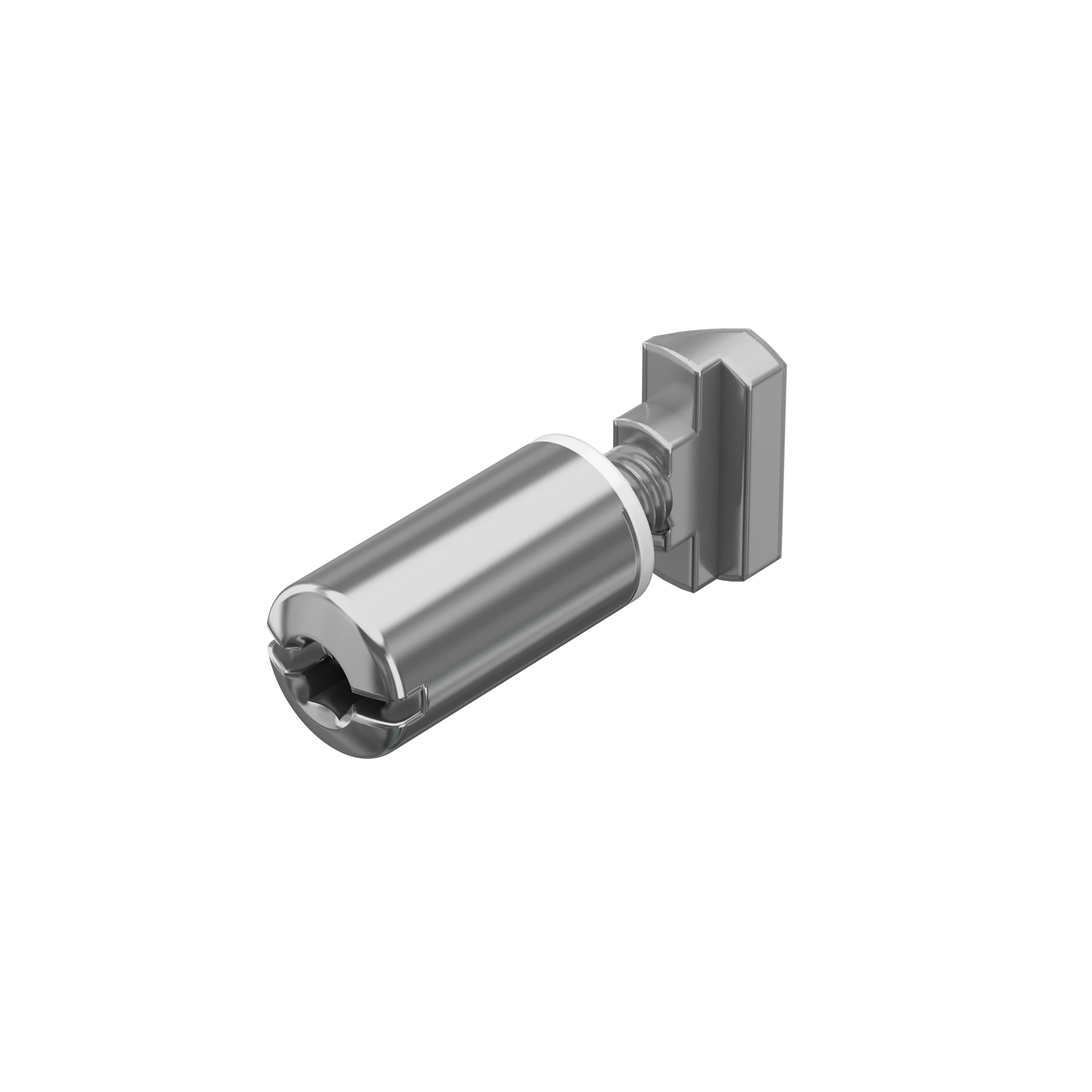

E 205.38Hammerhead screwelongated slot / allen screwmax. 35 kgL 19 × W 15 × H 10 mm

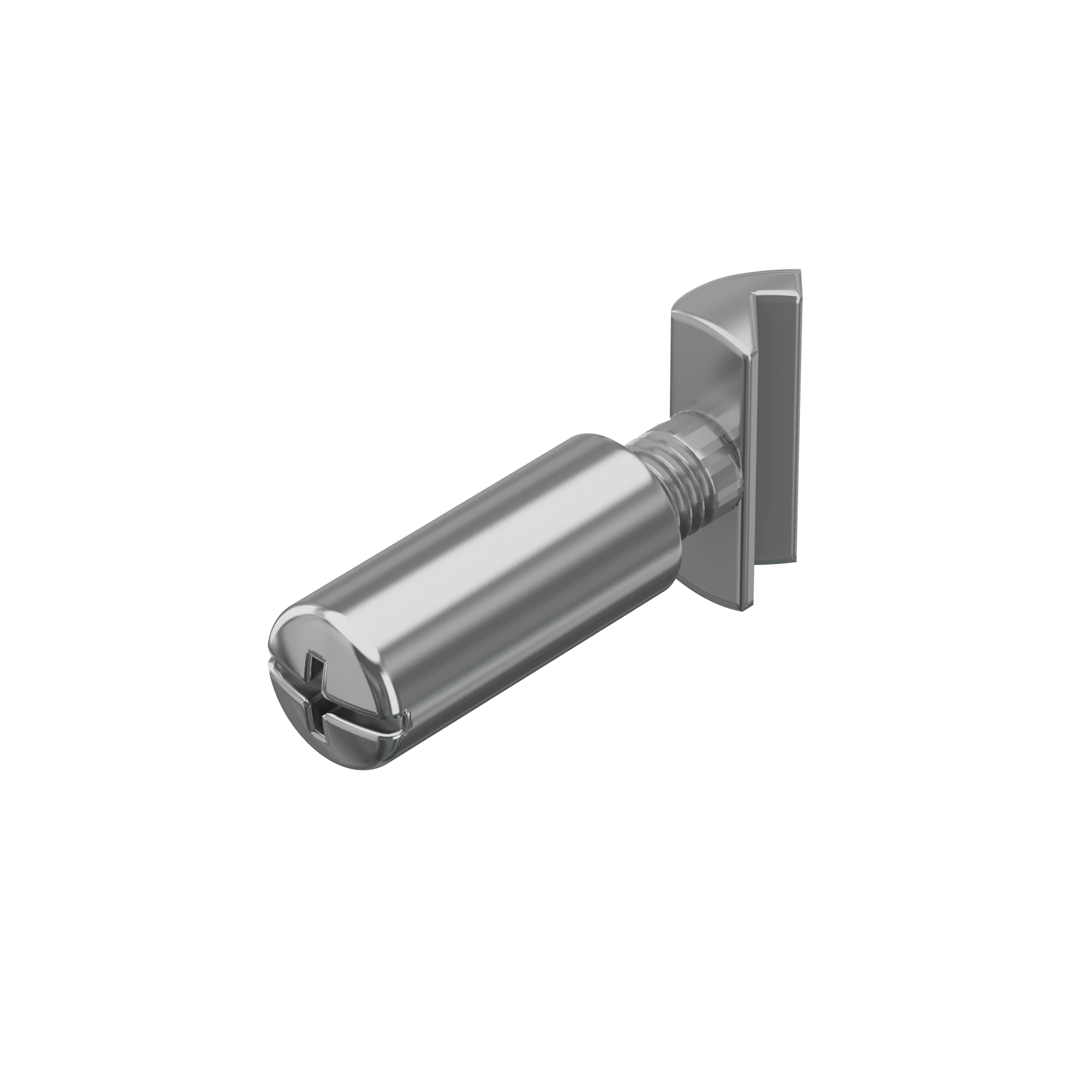

E 206.37Hammerhead screwL 19 × W 8 × H 8 mm

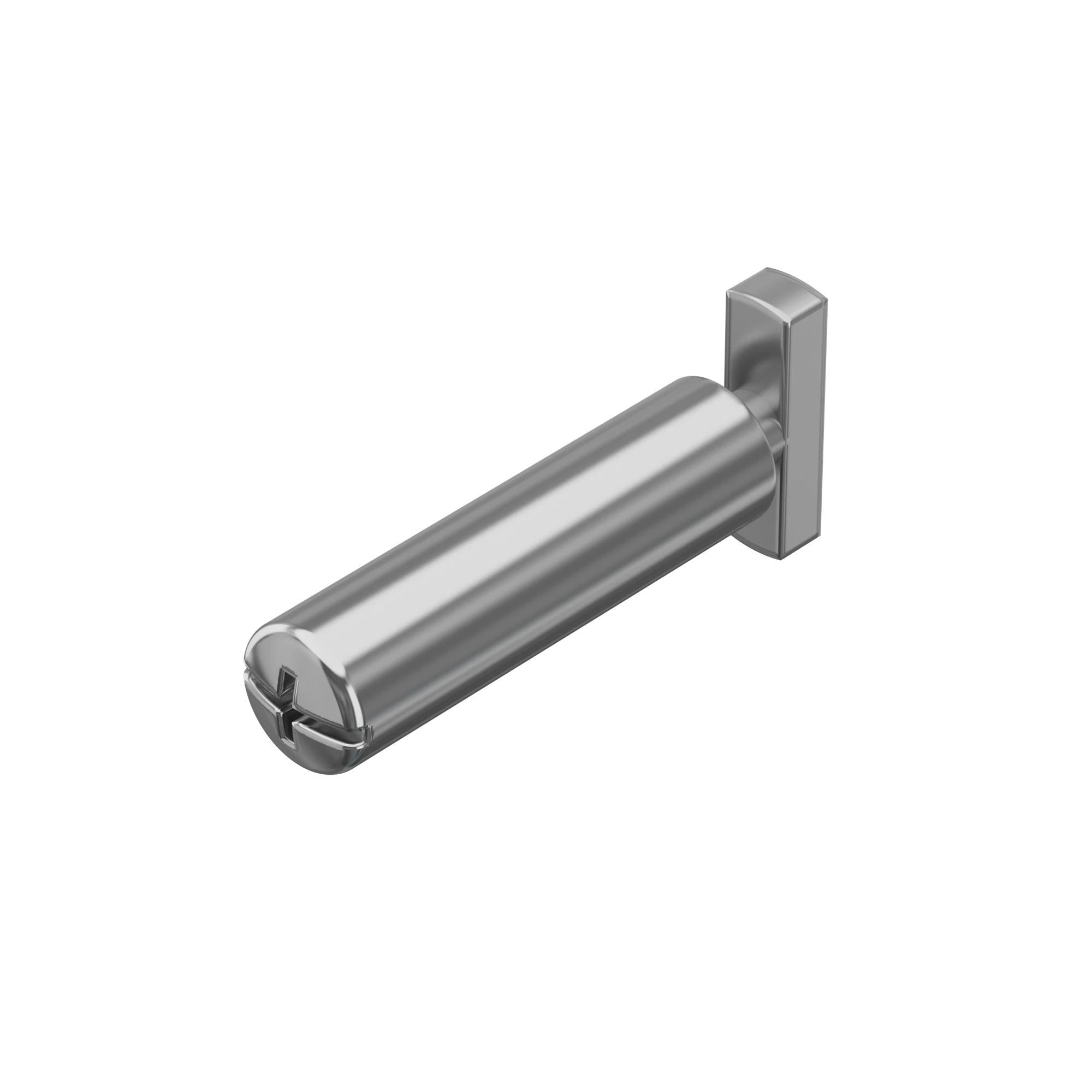

E 209.38Hammerhead screwcombination cross-slotL 30 × W 15 × H 8 mm

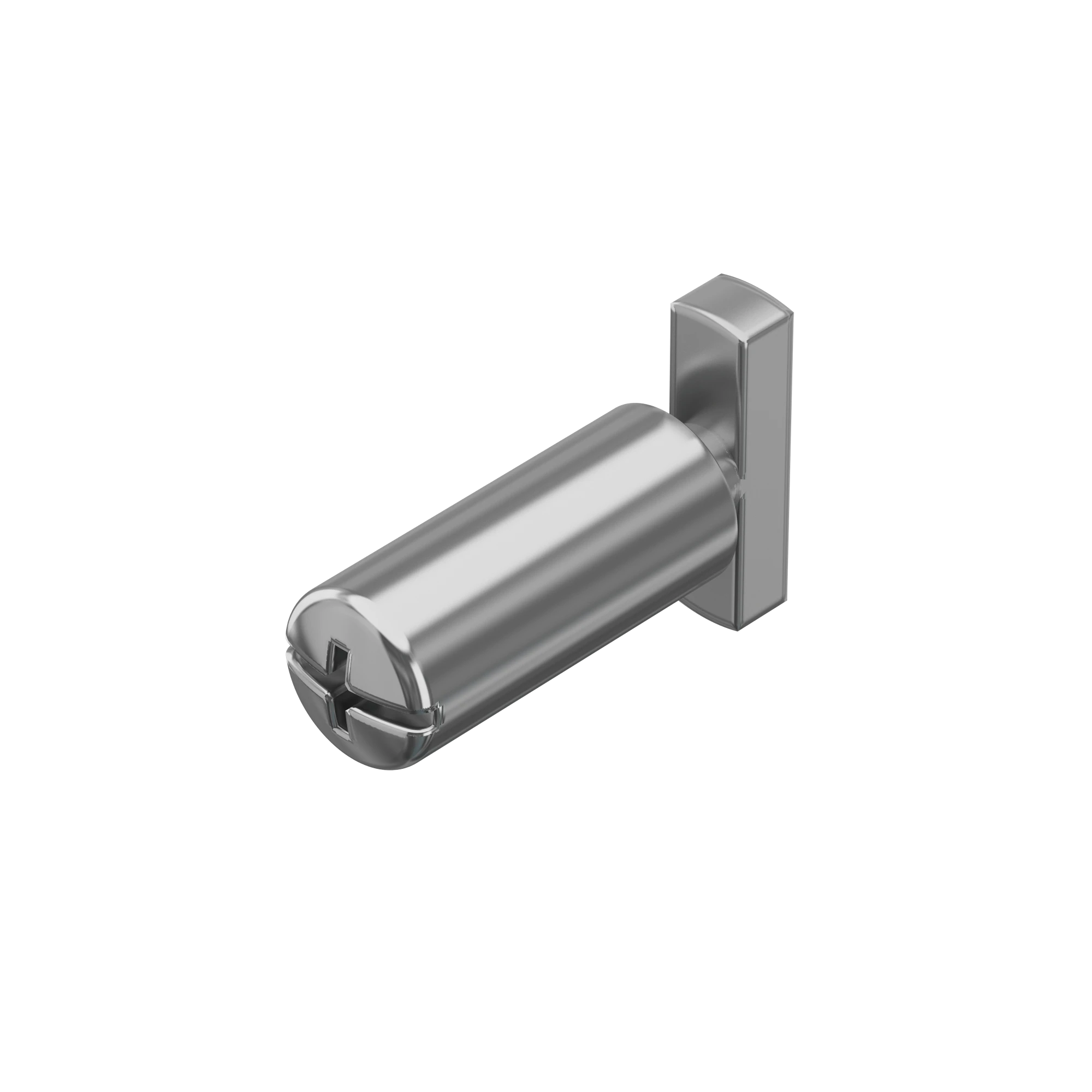

E 210.38Hammerhead screwcombination cross-slotmax. 35 kgL 19 × W 15 × H 8 mm
E 210/M8.30Hammerhead screwhexagon socket 4 mmfor glass shelfL 16 × W 15 × H 9 mm

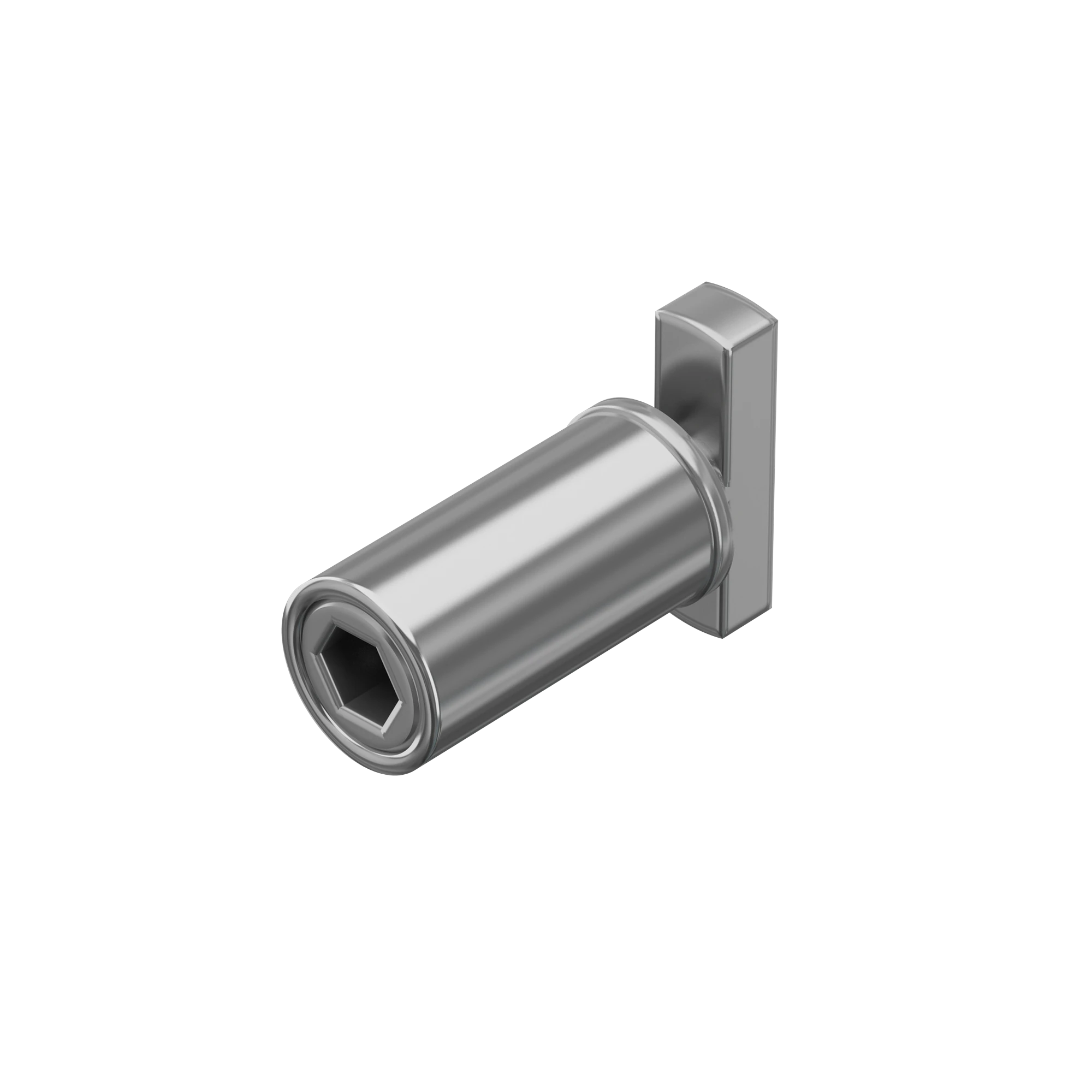

E 210/M8.35Hammerhead screwhexagon socket 4 mmfor glass shelfL 16 × W 15 × H 9 mm
E 218.41Screw eyemax. 45 kgOpening 12.3 mm dia.L 28 × W 22 × H 12 mm

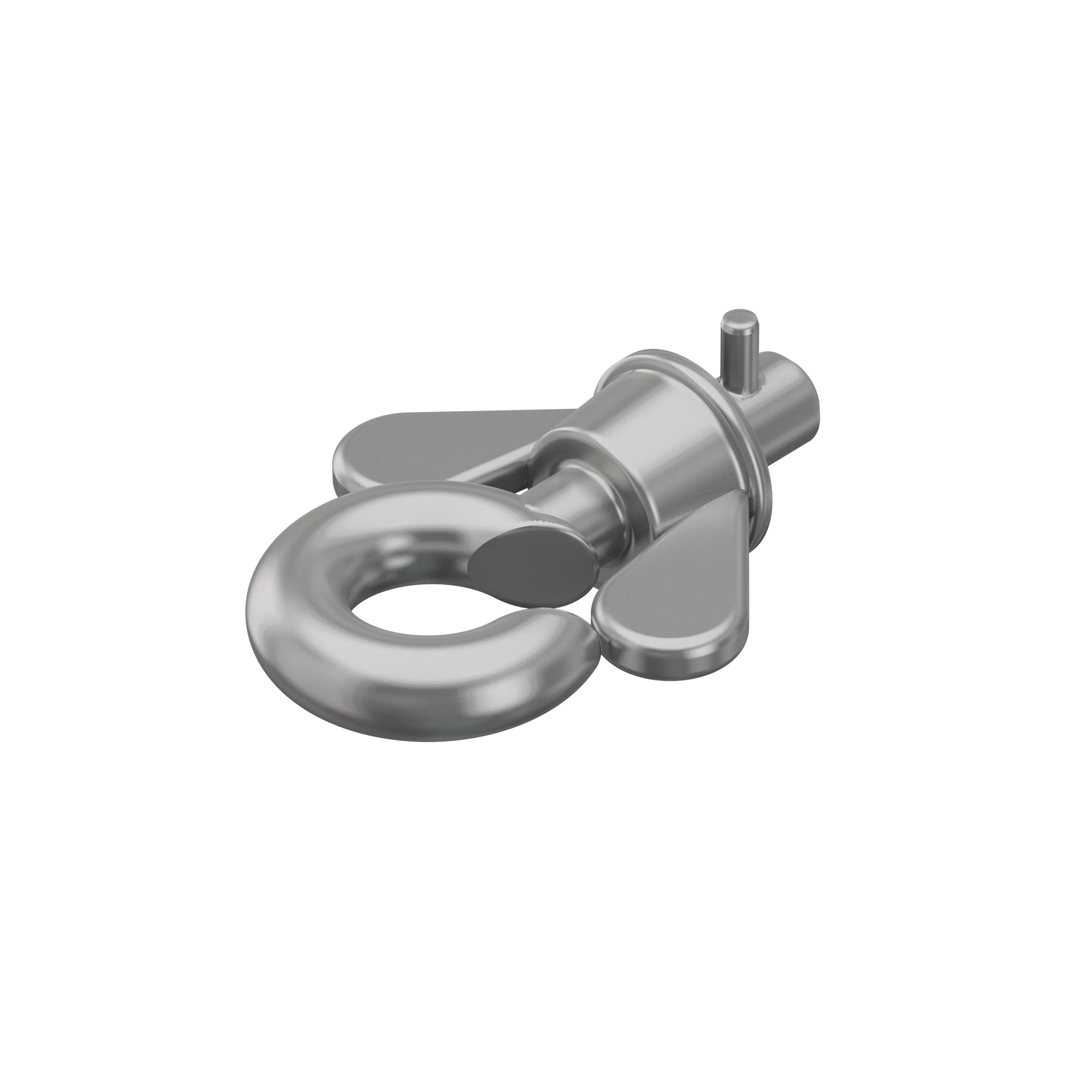

E 219.37Screw hookmax. 8 kgL 27 × W 20 × H 11 mm

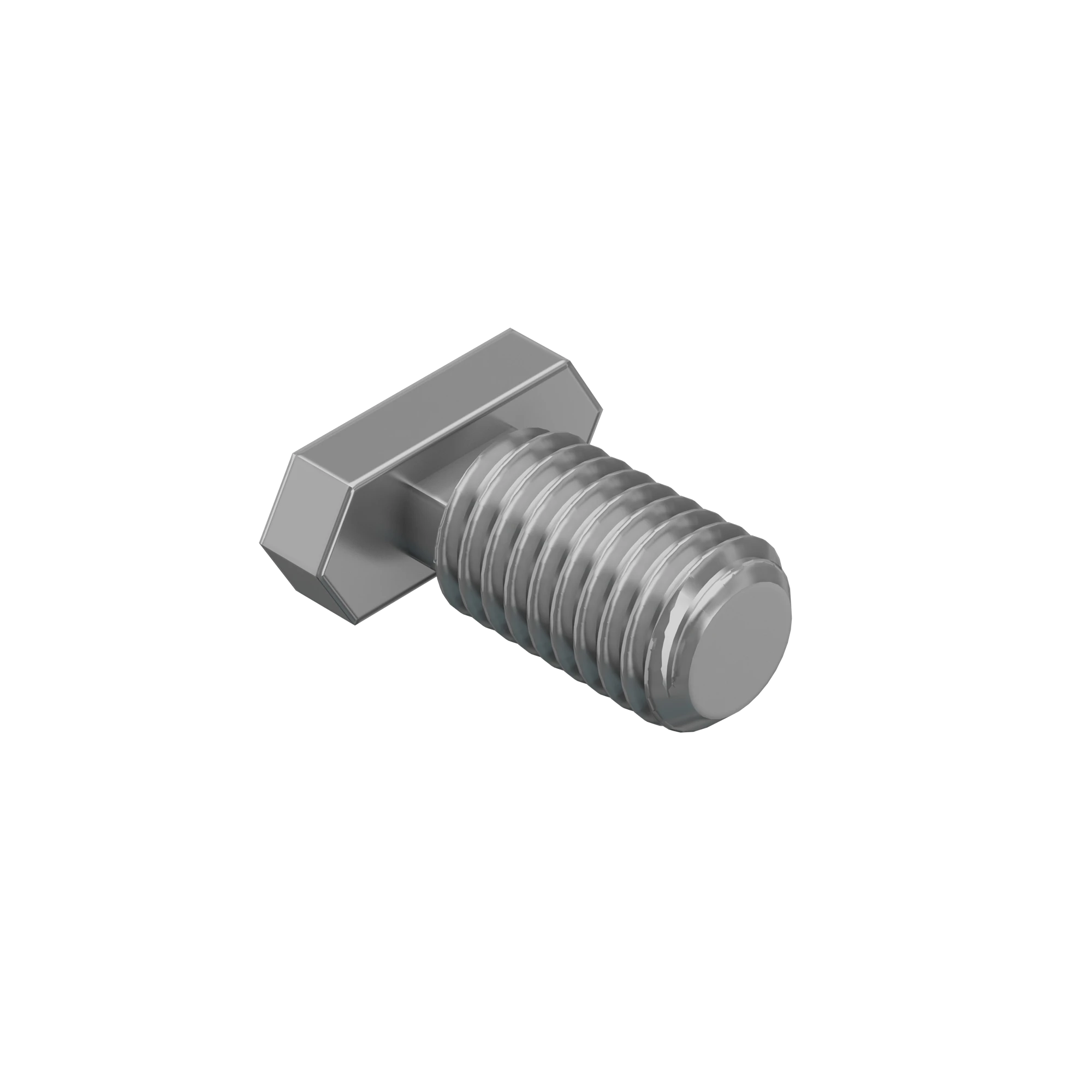

E 265.37Hammerhead screwM10L 22 × W 10 × H 10 mm

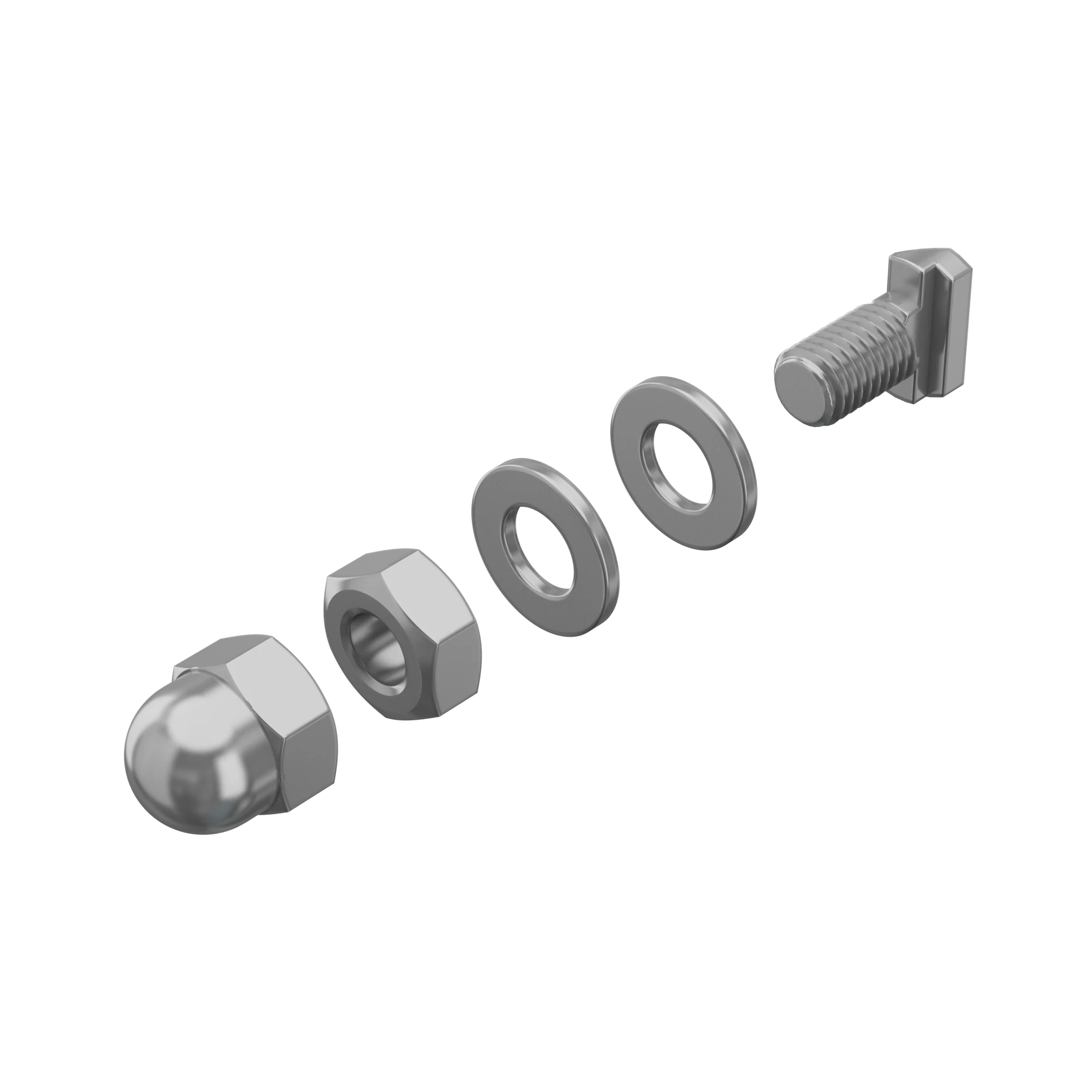

M 1472.37Hammerhead screwM8×19 mm

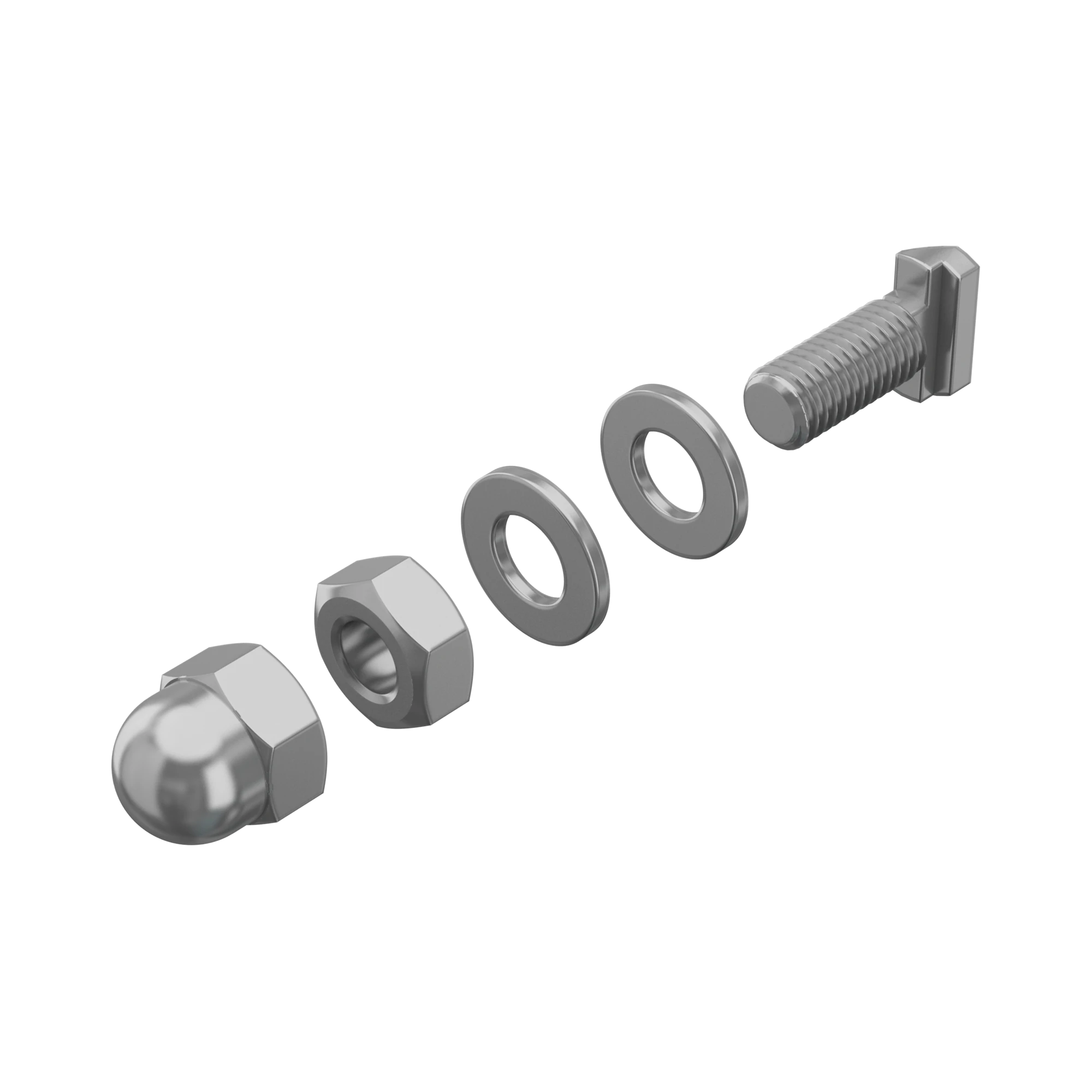

M 1473.37Hammerhead screwM8×24 mm

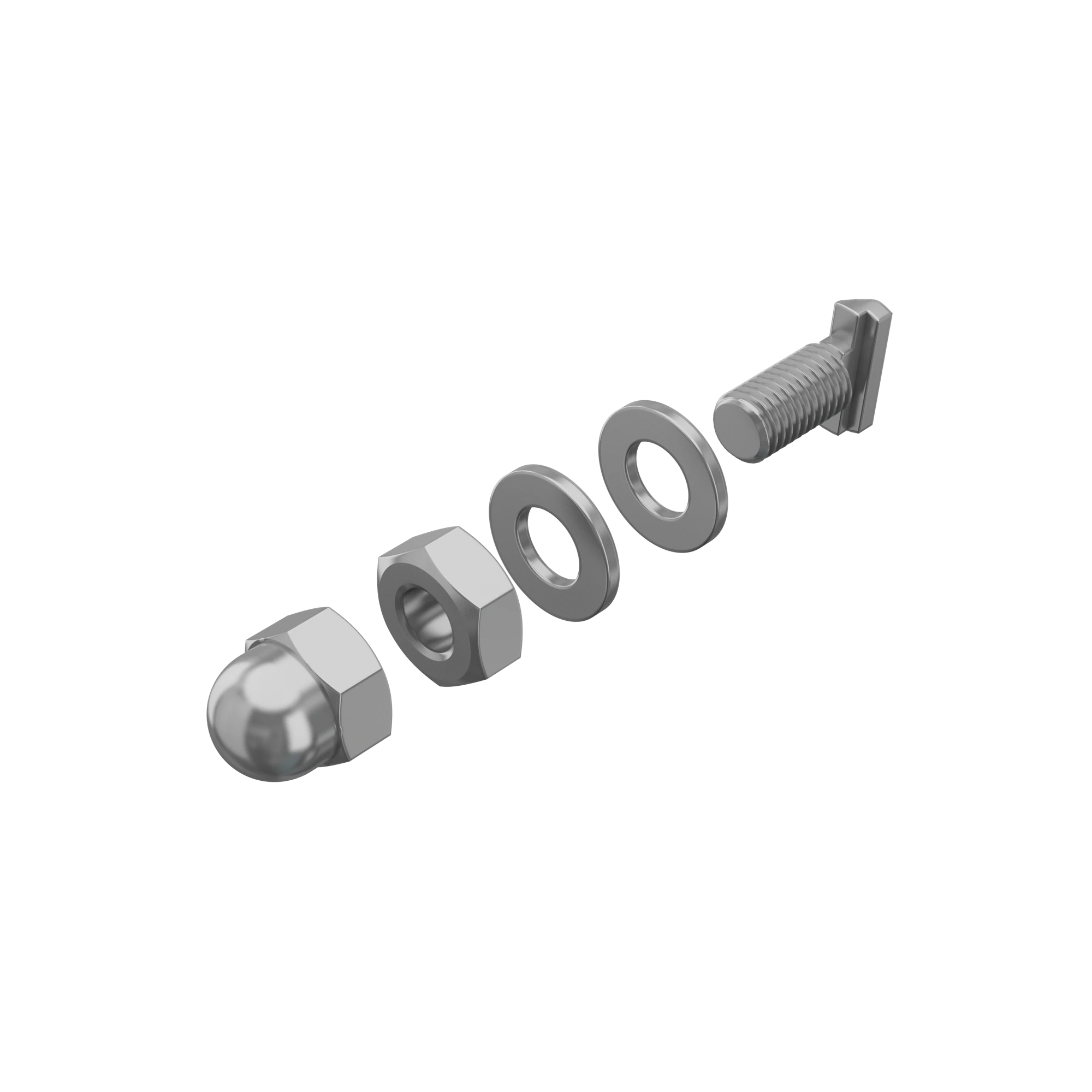

M 812.37Hammerhead screwM10×23 mm
