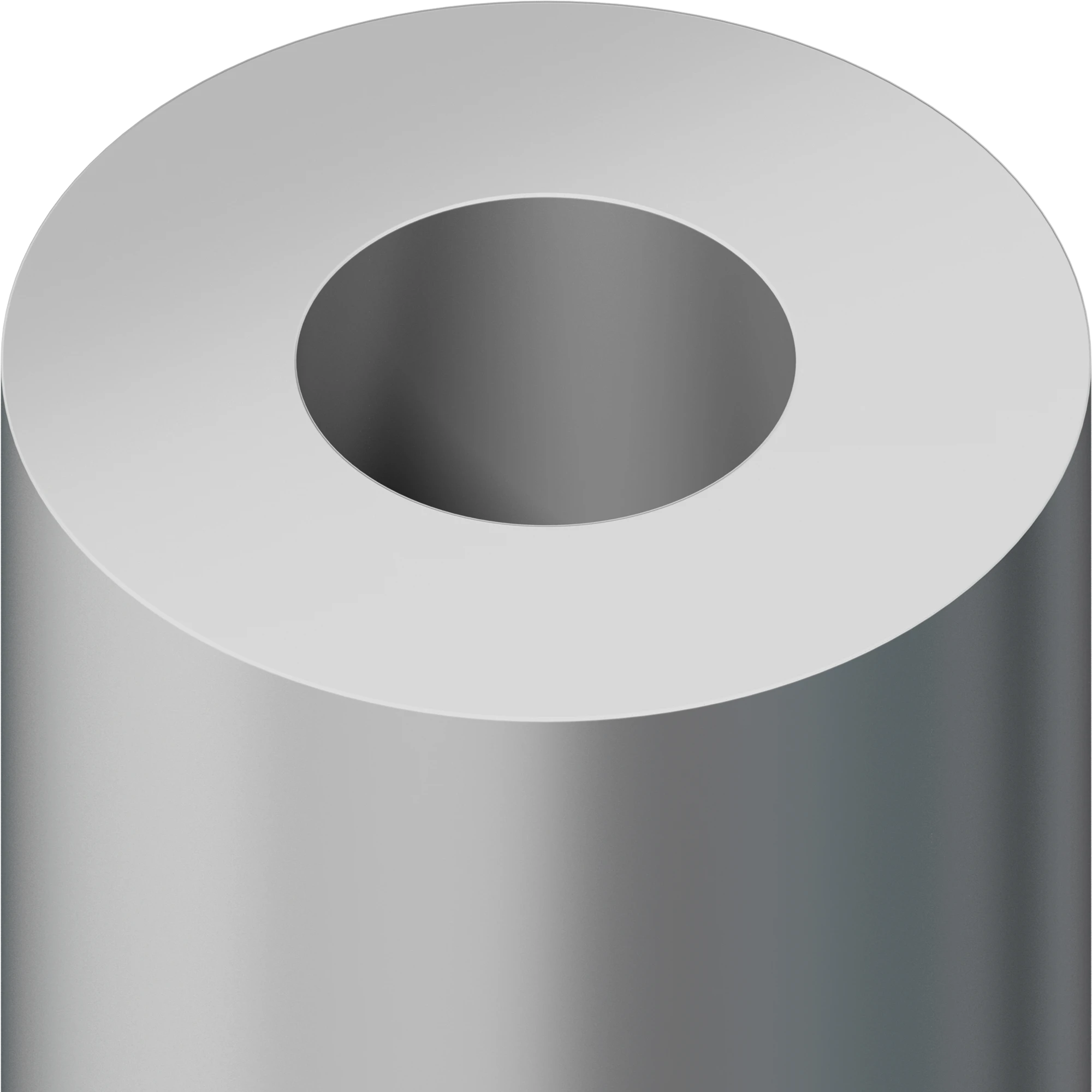

M 1140.01Round extrusionL 5000 × W 24 × H 24 mm
shop fitting system for trade fairs
System for retail spaces.
The octanorm shop fitting system combines base profiles, corner pieces and connectors, doors and sliding doors, holders, and finished products such as counters and literature stands. With it you can assemble shelves, display cases and entire retail layouts, sturdily and with a polished look.
Base profiles
19

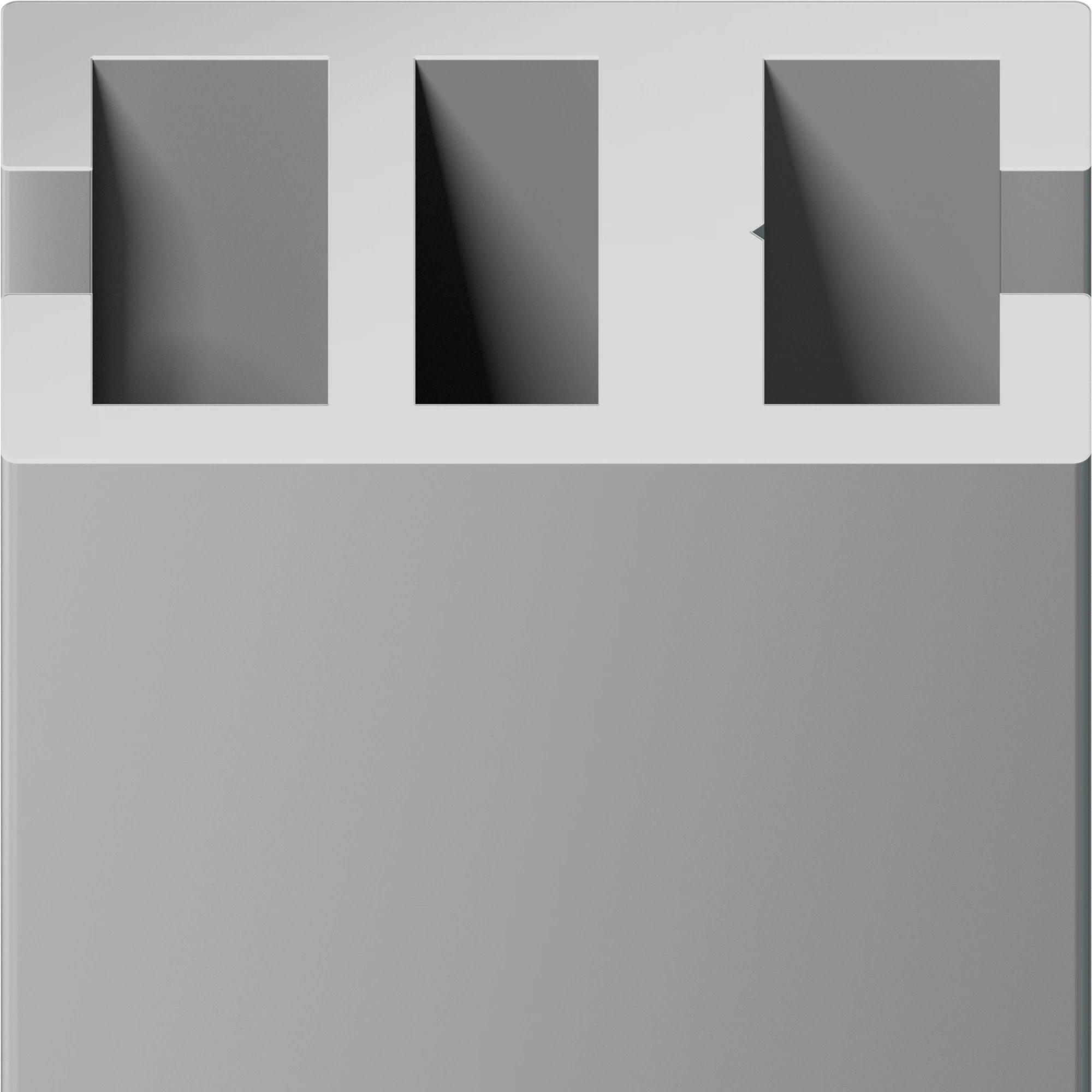

M 1602.01Beam extrusion2 system groovesL 5000 × W 25 × H 16 mm

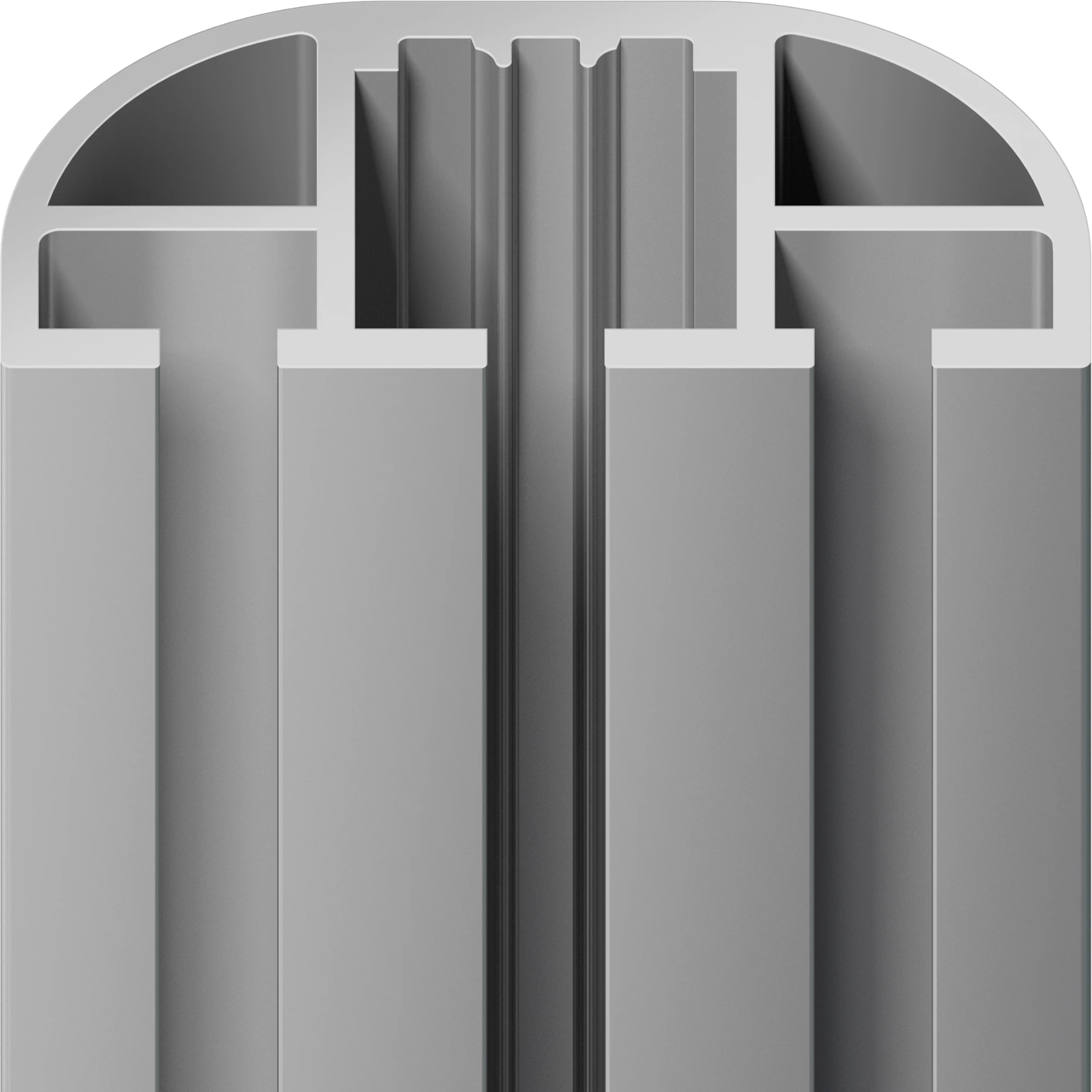

M 1606.01Semi-circular extr.2 system groovesL 5000 × W 40 × H 20 mm

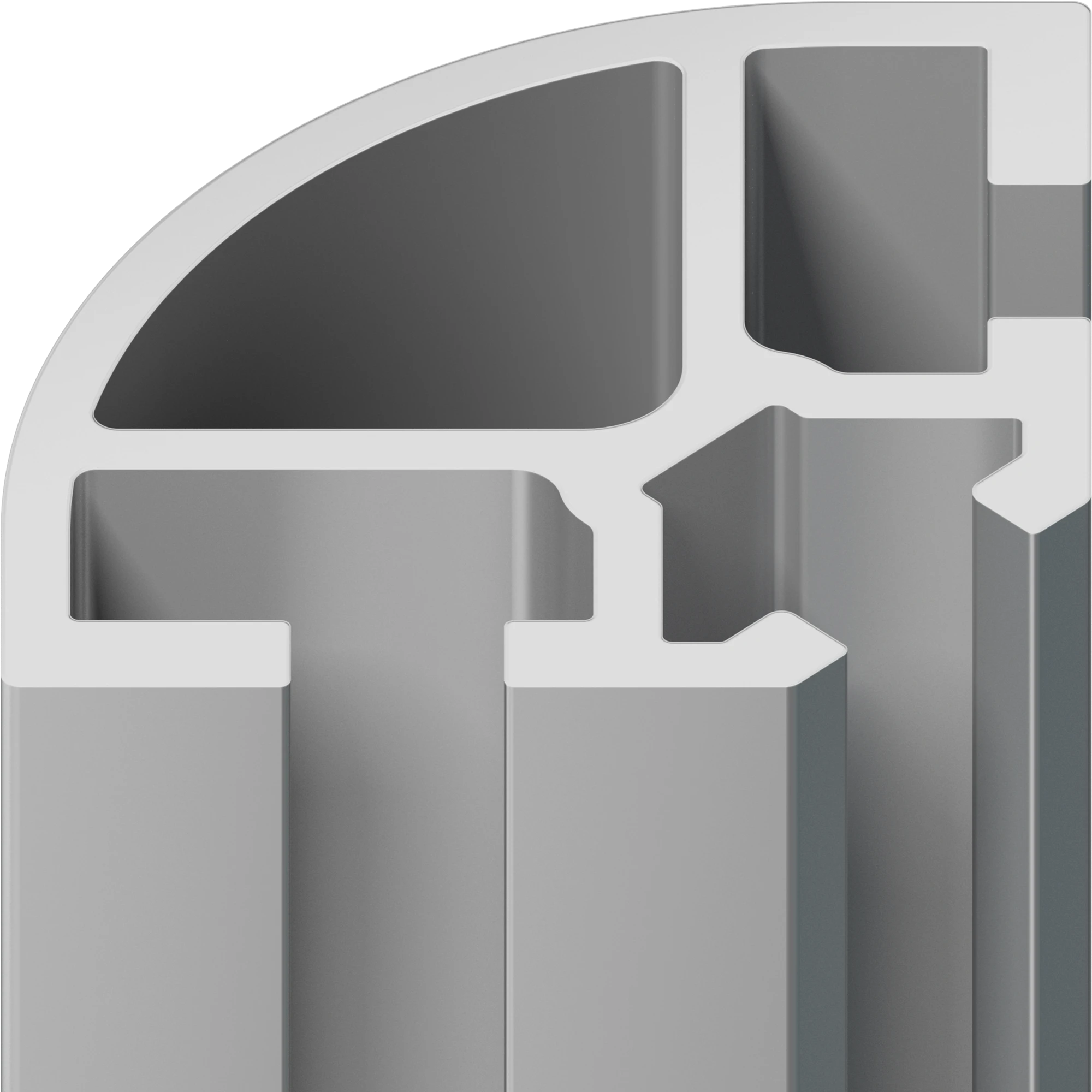

M 1620.01Quarter-round extrusion2 system groovesL 5000 × W 22 × H 22 mm

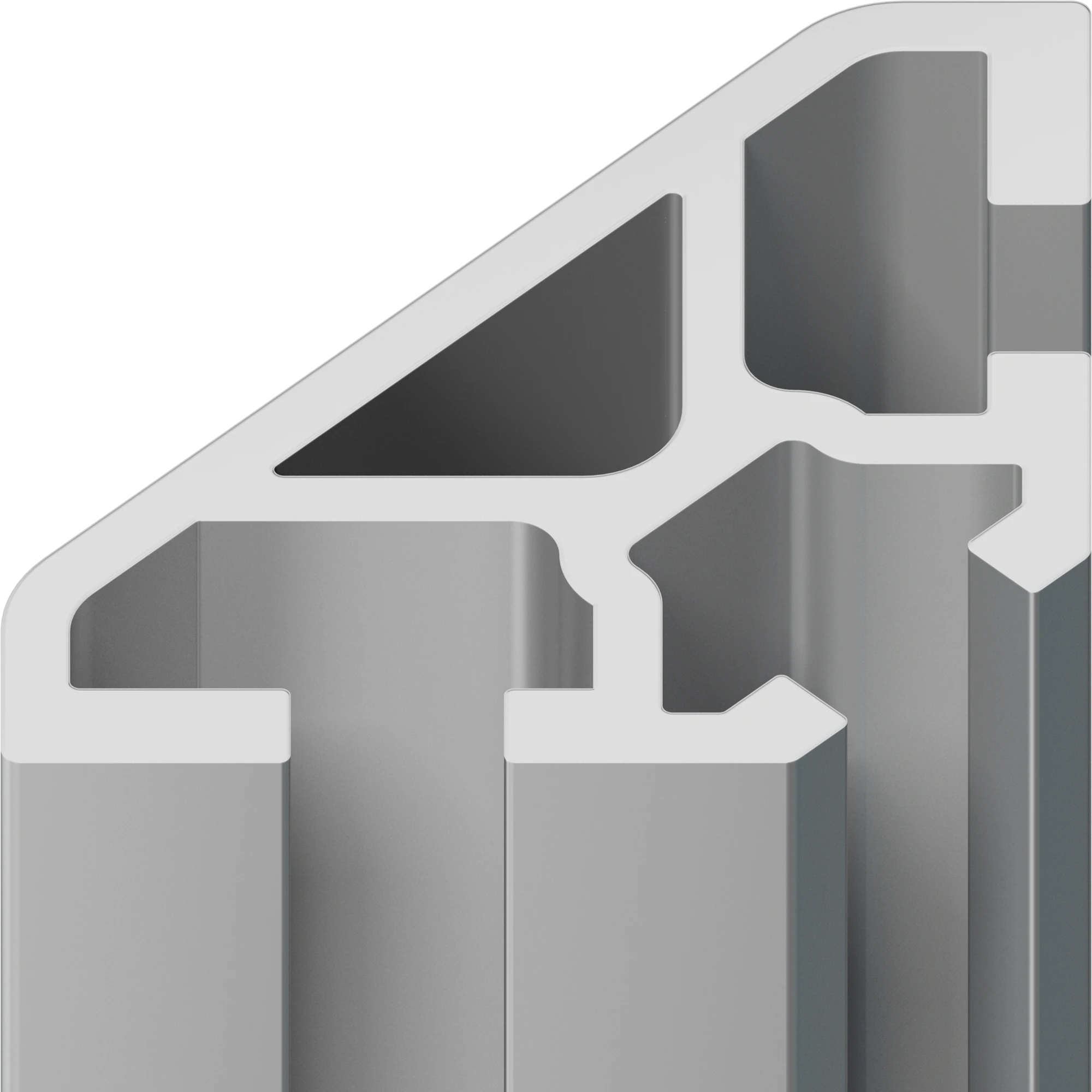

M 1622.01Double triangular2 system groovesL 5000 × W 22 × H 22 mm
M 1622.41Double triangular2 system groovesL 5000 × W 22 × H 22 mm

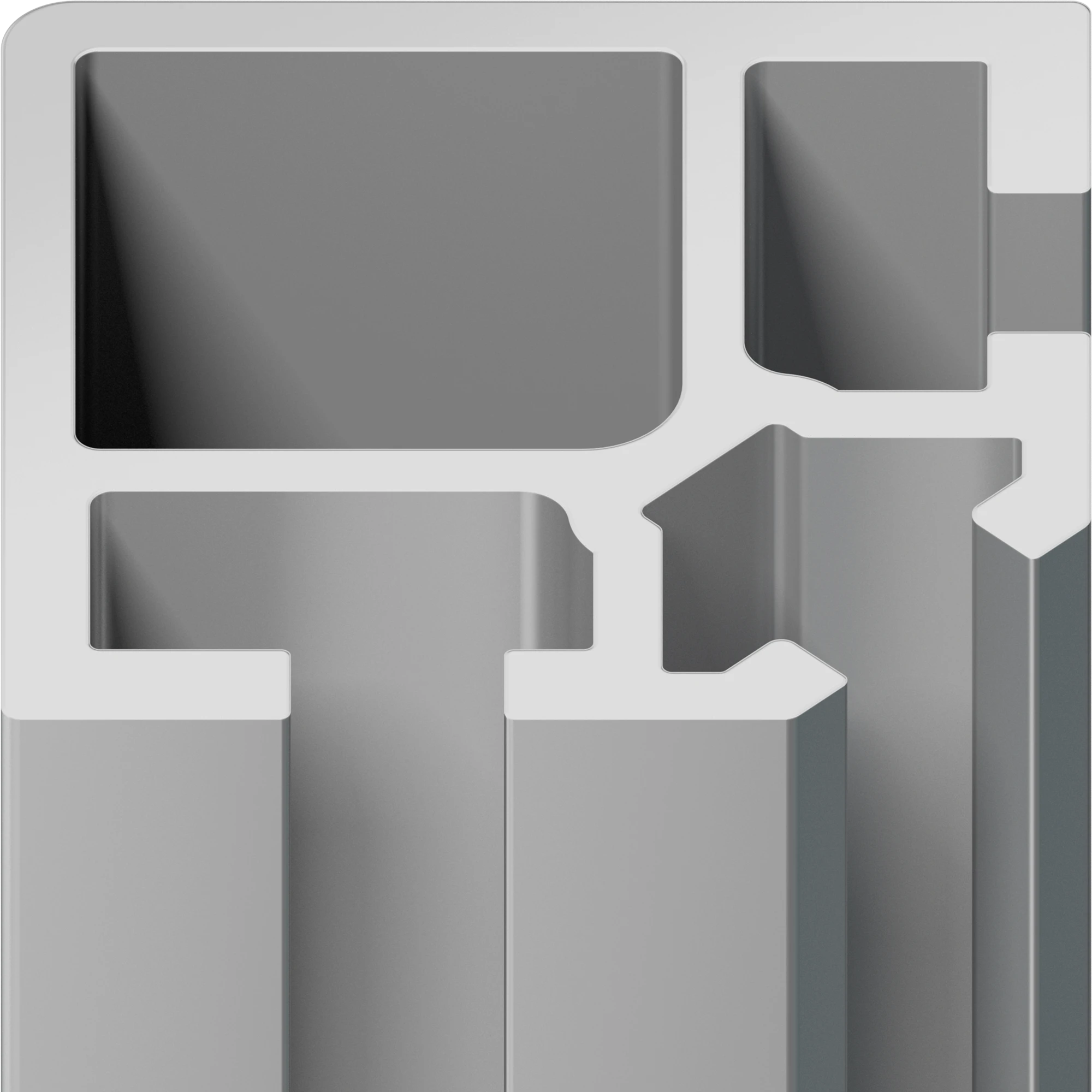

M 1625.01Square extrusion2 system groovesL 5000 × W 22 × H 22 mm
M 1629.01Angle extrusion135°2 system groovesL 5000 × W 16 mm

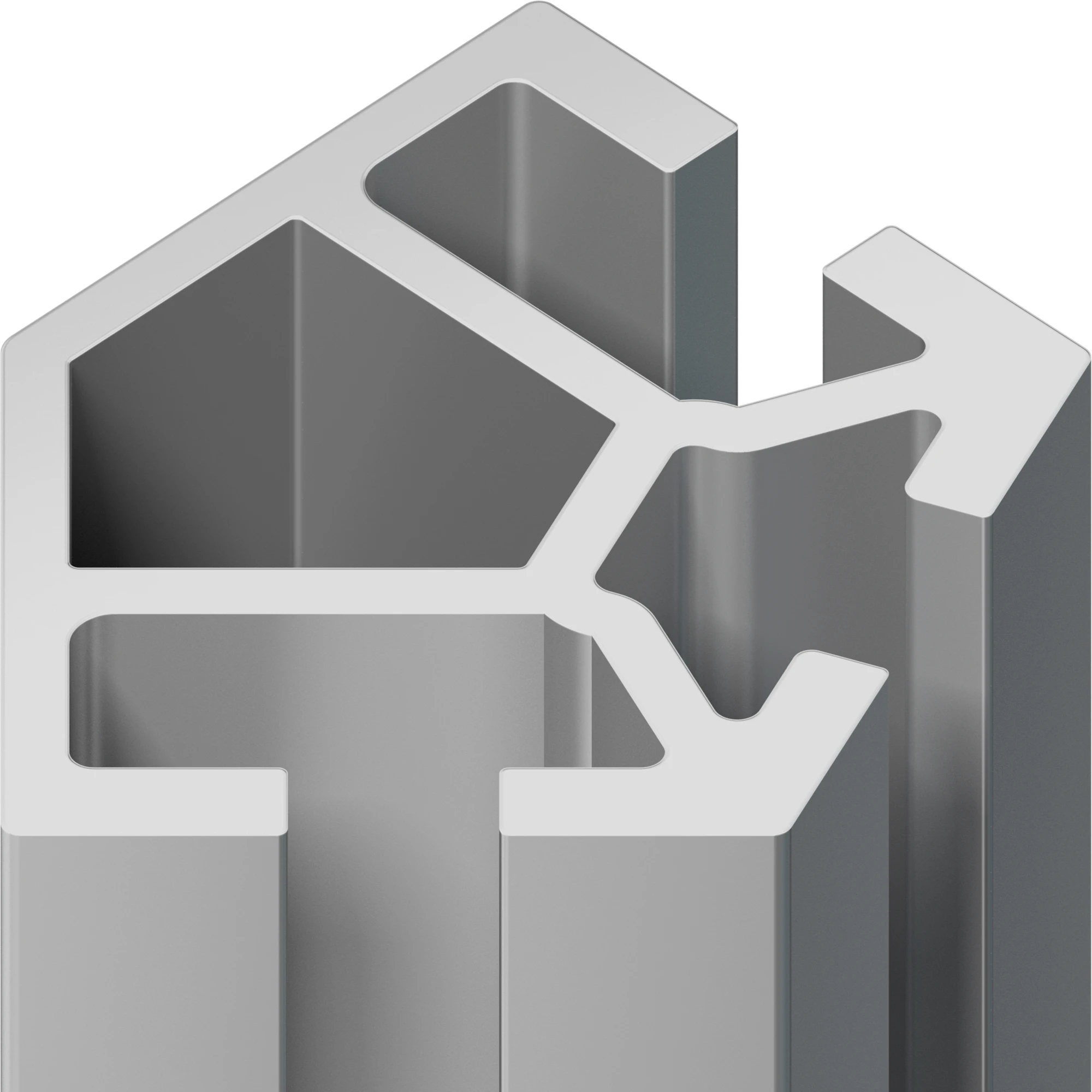

M 1629.41Angle extrusion135°2 system groovesL 5000 × W 16 mm

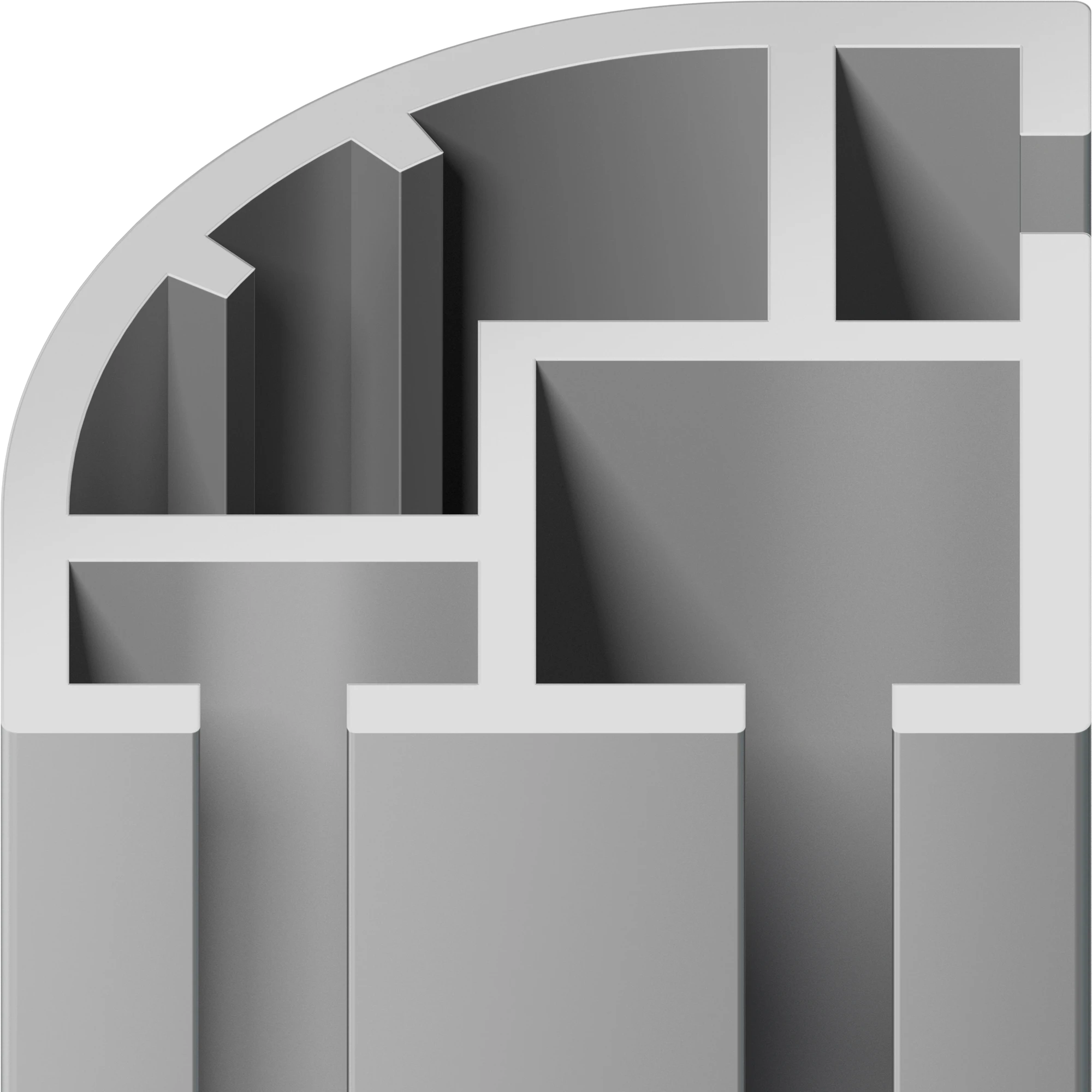

S 1105.01Quarter-round extrusion3 system groovesL 5000 × W 32 × H 32 mm

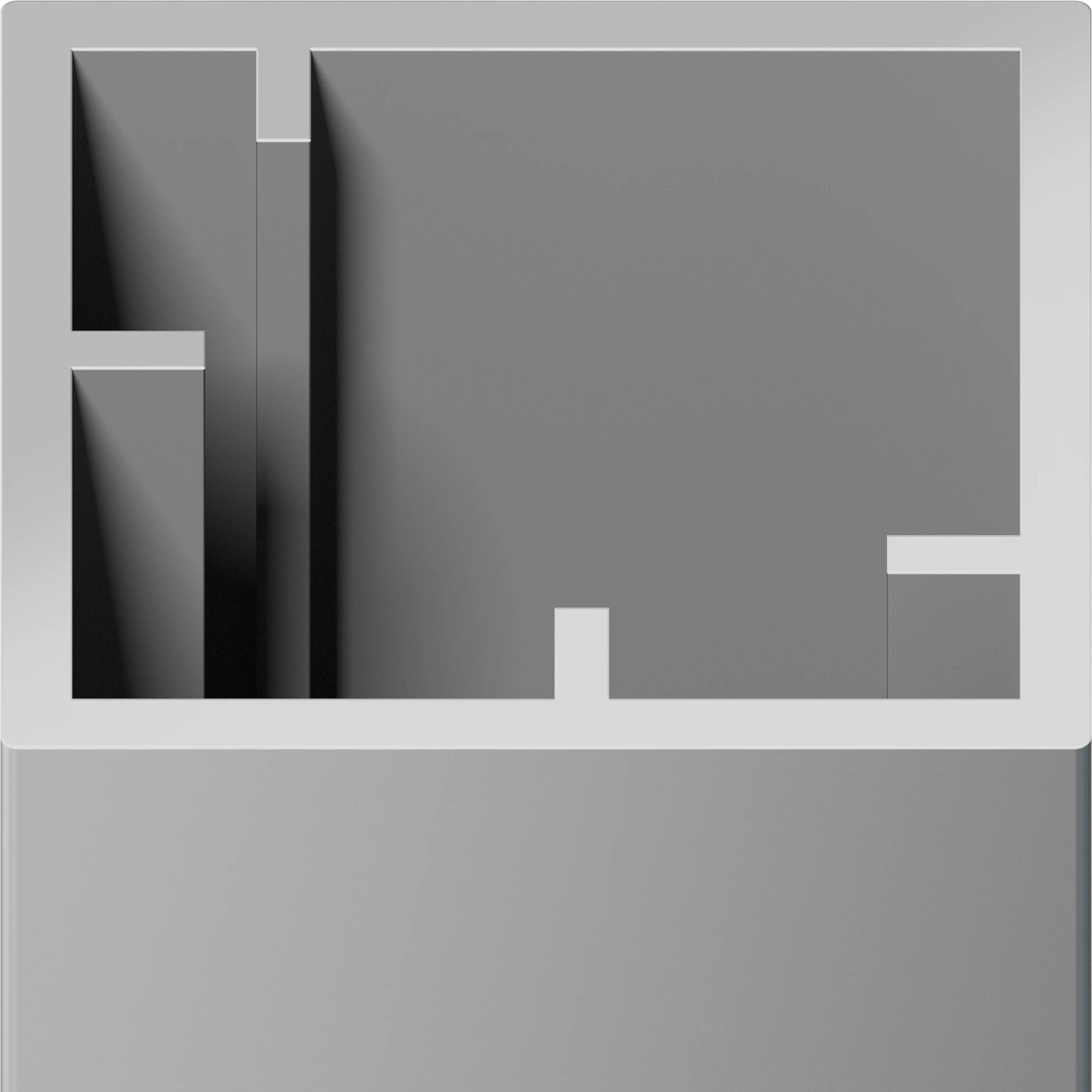

S 1123.01Square extrusionwithout system grooveL 5000 × W 32 × H 32 mm

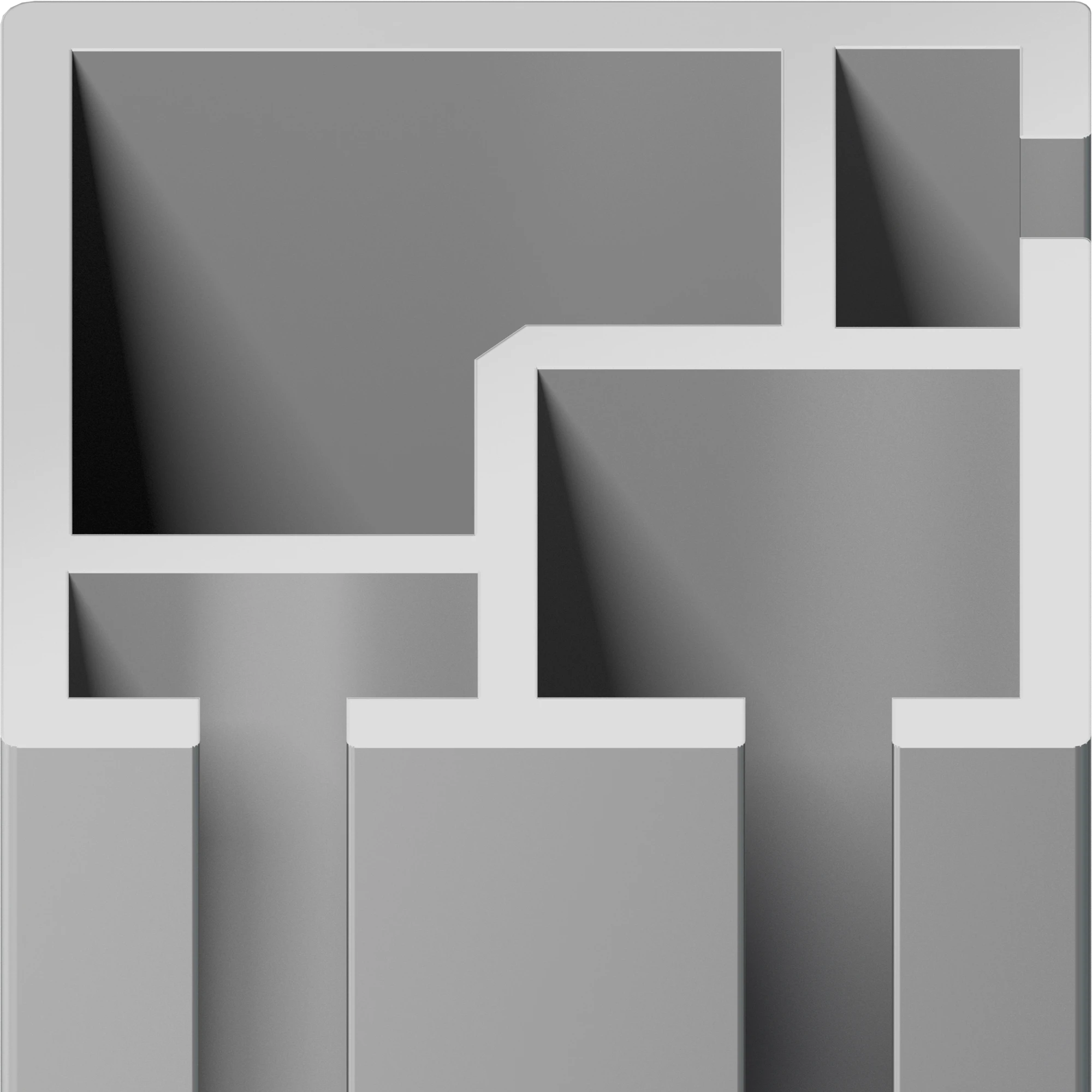

S 1125.01Square extrusion3 system groovesL 5000 × W 32 × H 32 mm

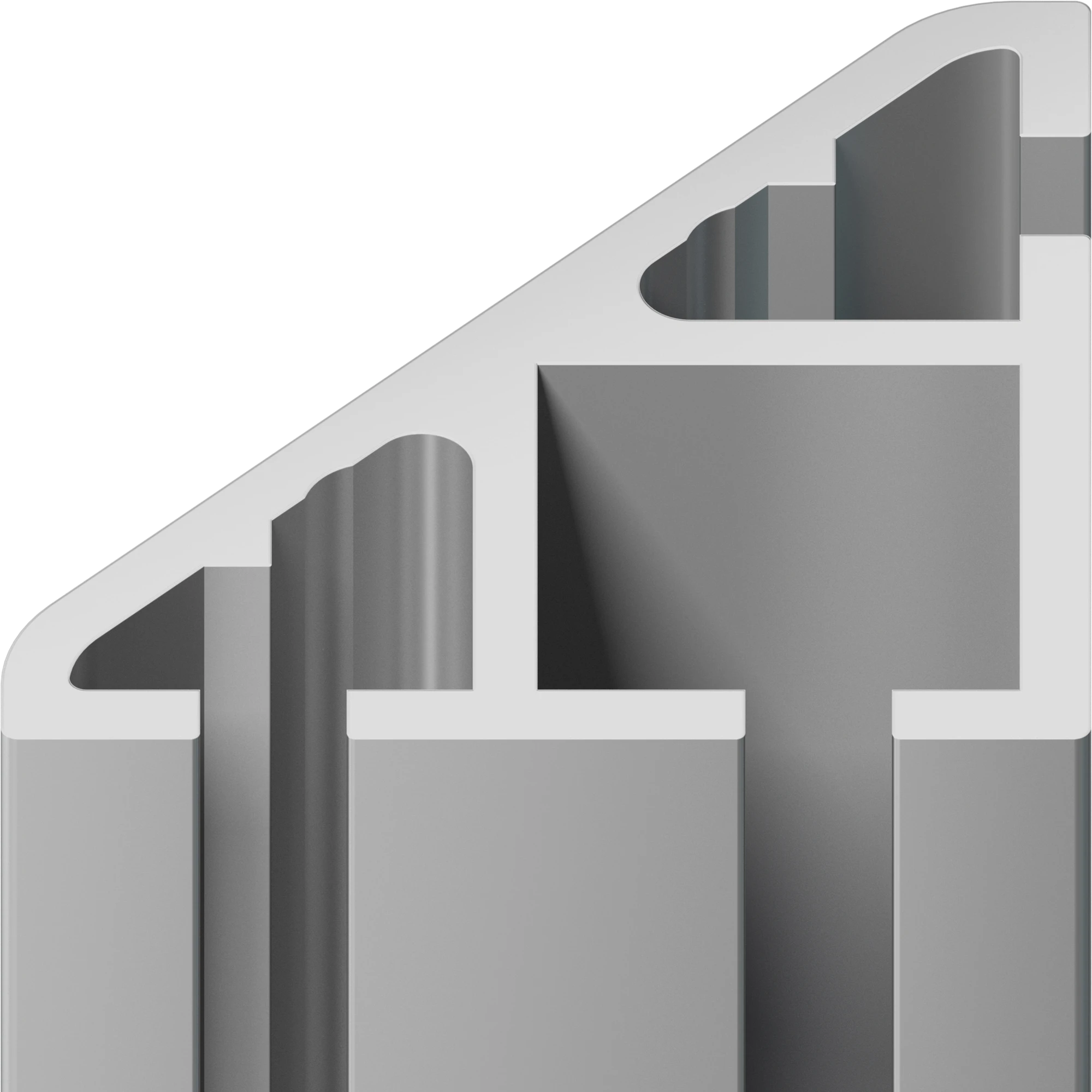

S 1303.01Double triangular3 system groovesL 5000 × W 32 × H 32 mm

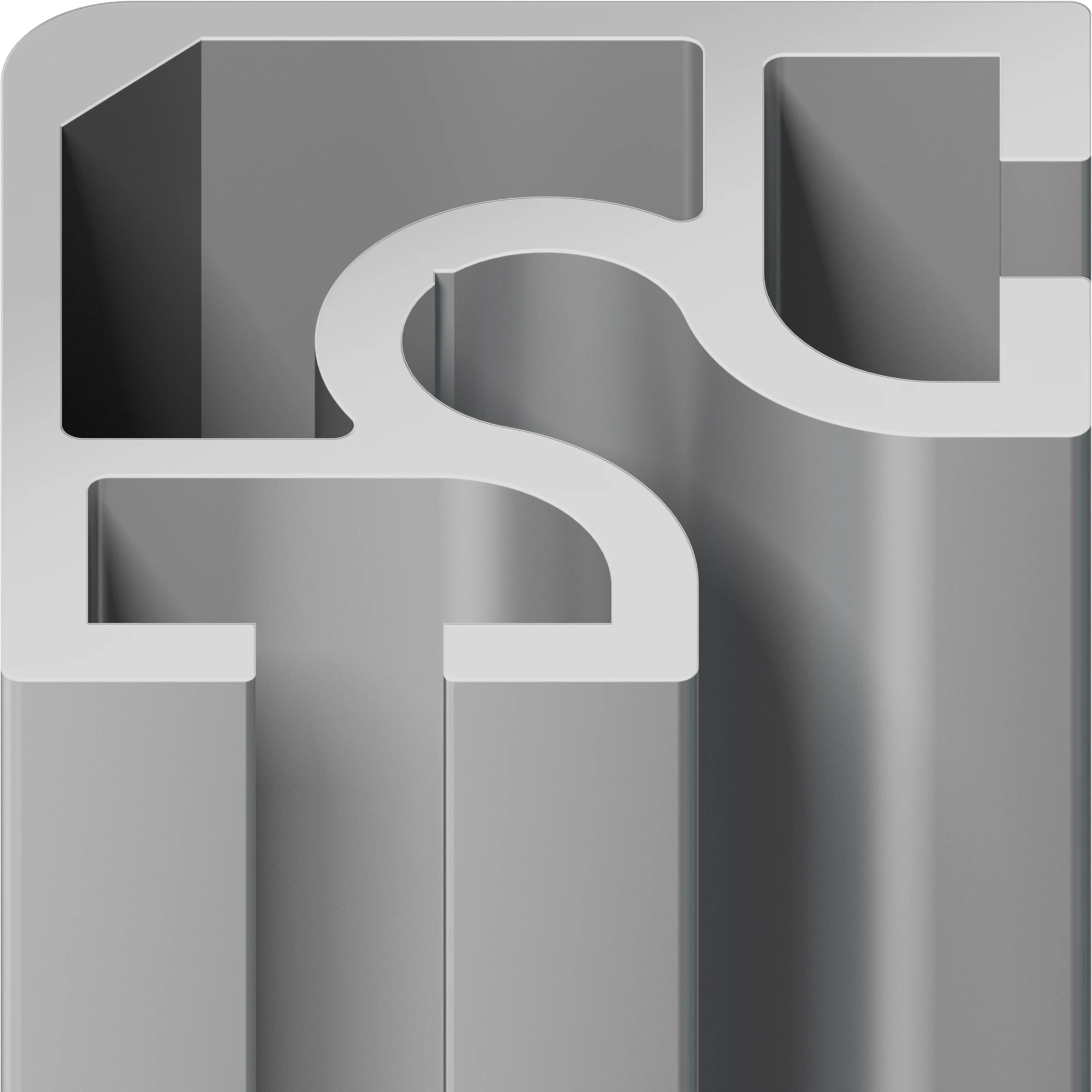

V 2000.01Square extrusion2 system groovesL 5000 × W 25 × H 25 mm

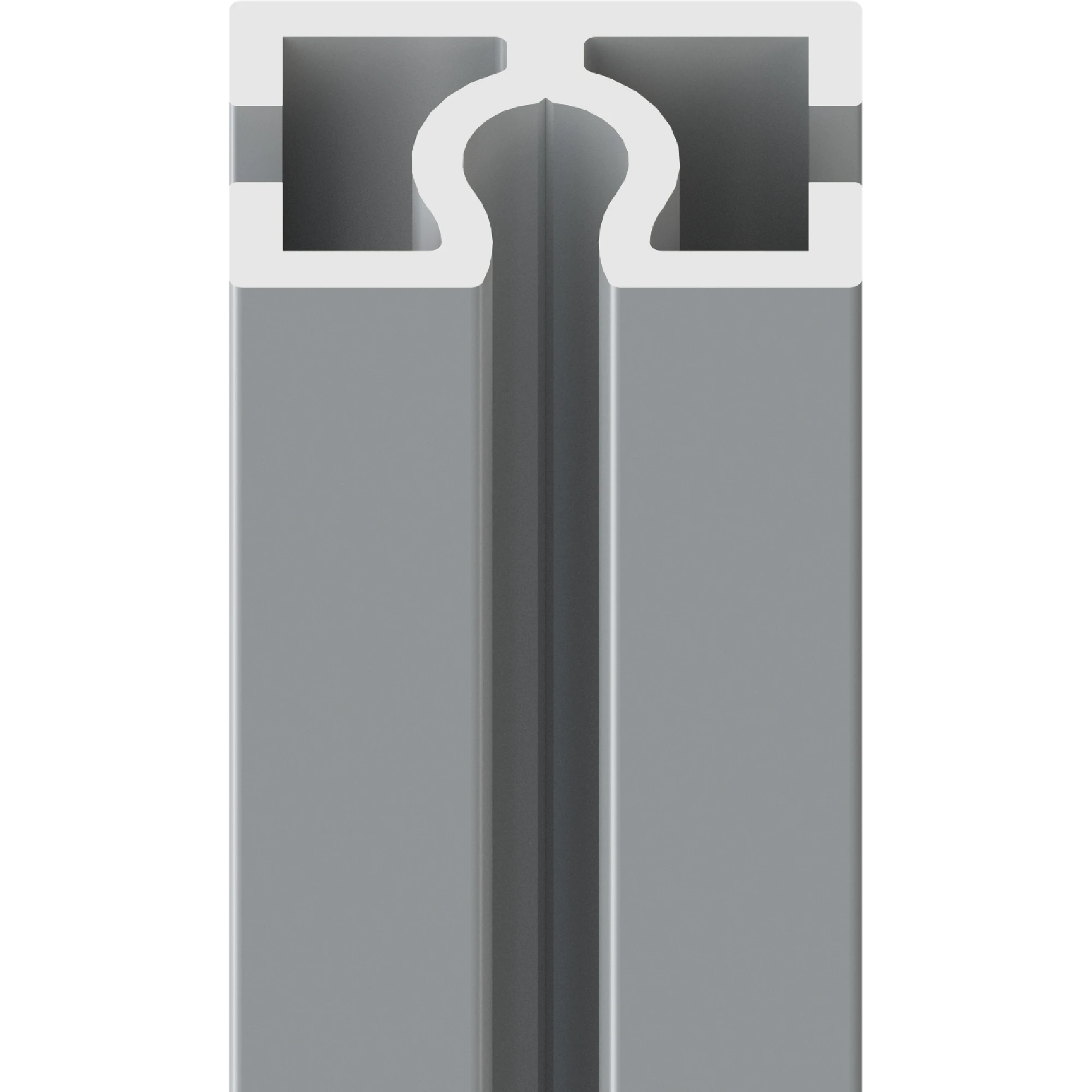

V 2040.01Upright extrusionL 5000 × W 25 × H 16 mm

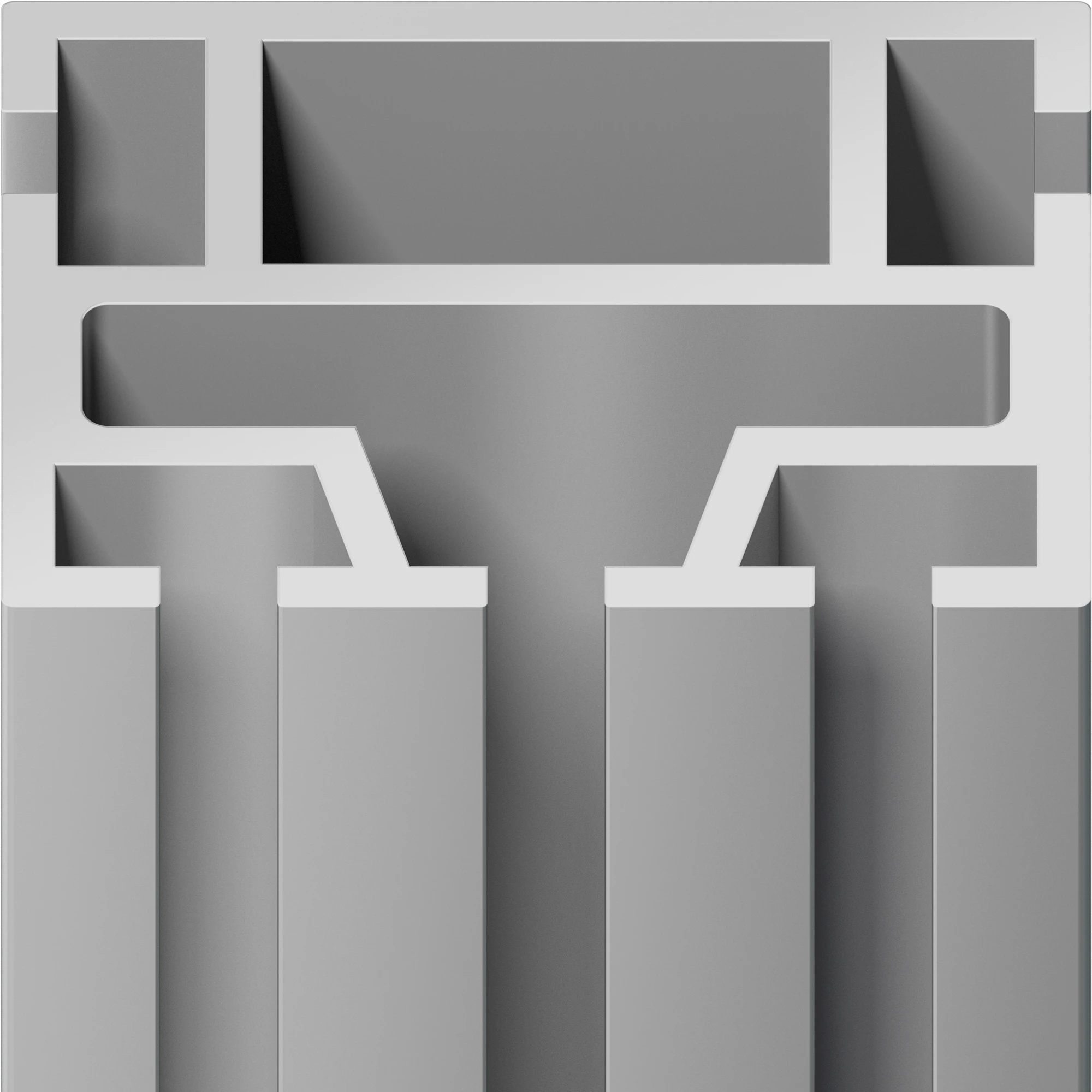

Z 2100.01Beam extrusion4 system groovesL 5000 × W 40 × H 32 mm
Accessories
19
M 1149.39End capL 24 × W 24 × H 23 mm

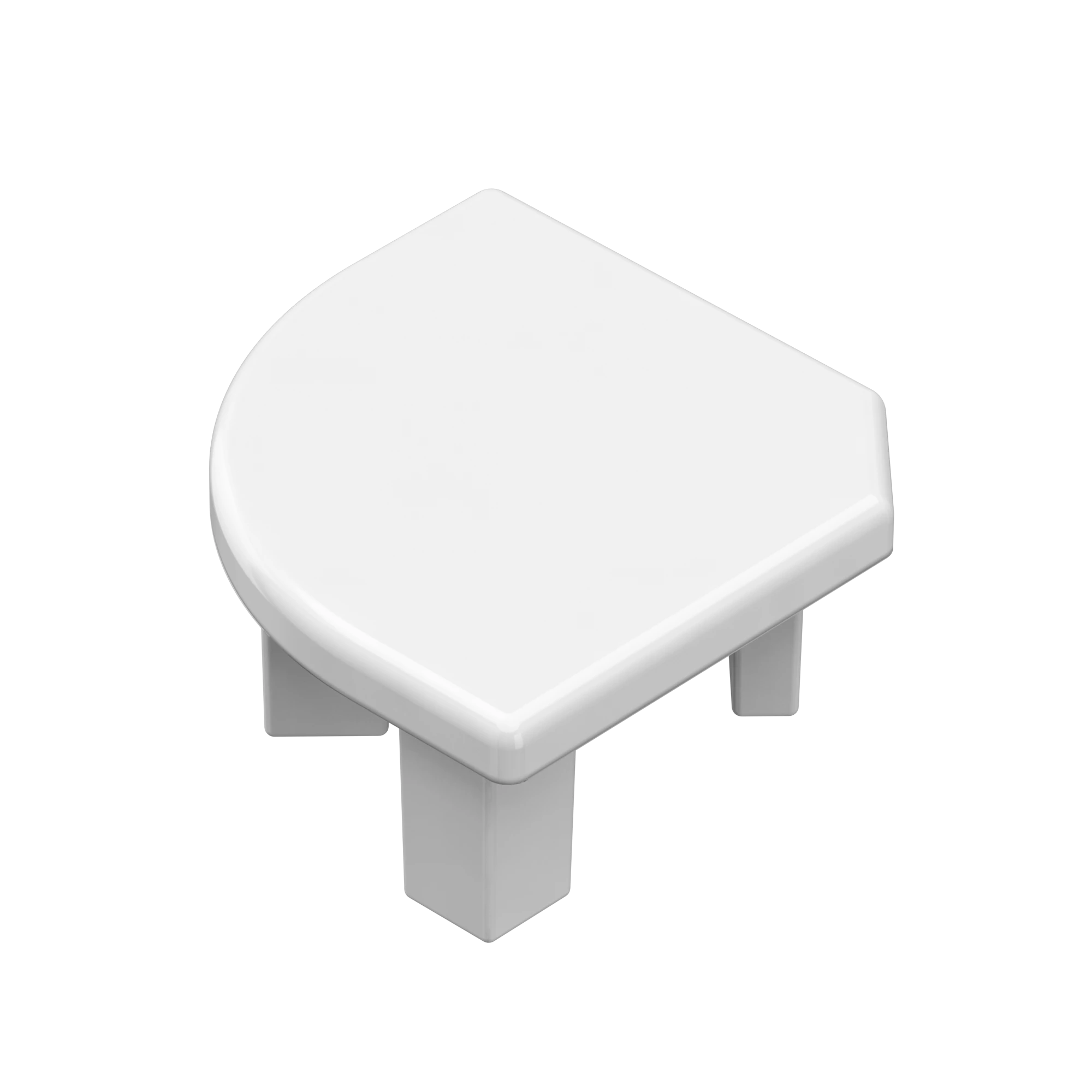

M 1630.35End capfor M 1600L 21 × W 21 × H 10 mm

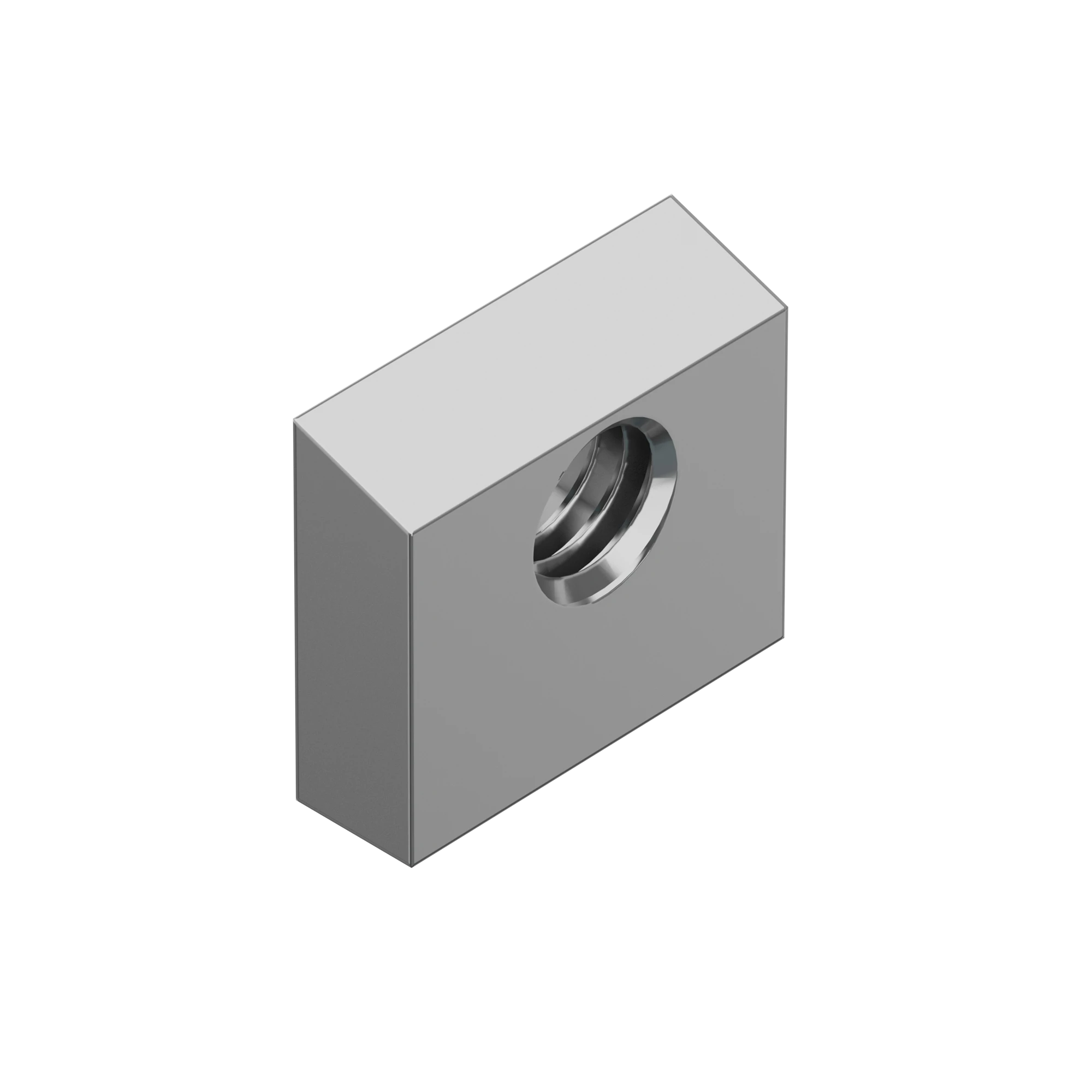

M 1636.37Threaded platefor extrusions 20/22 mmL 10 × W 8 × H 3 mm

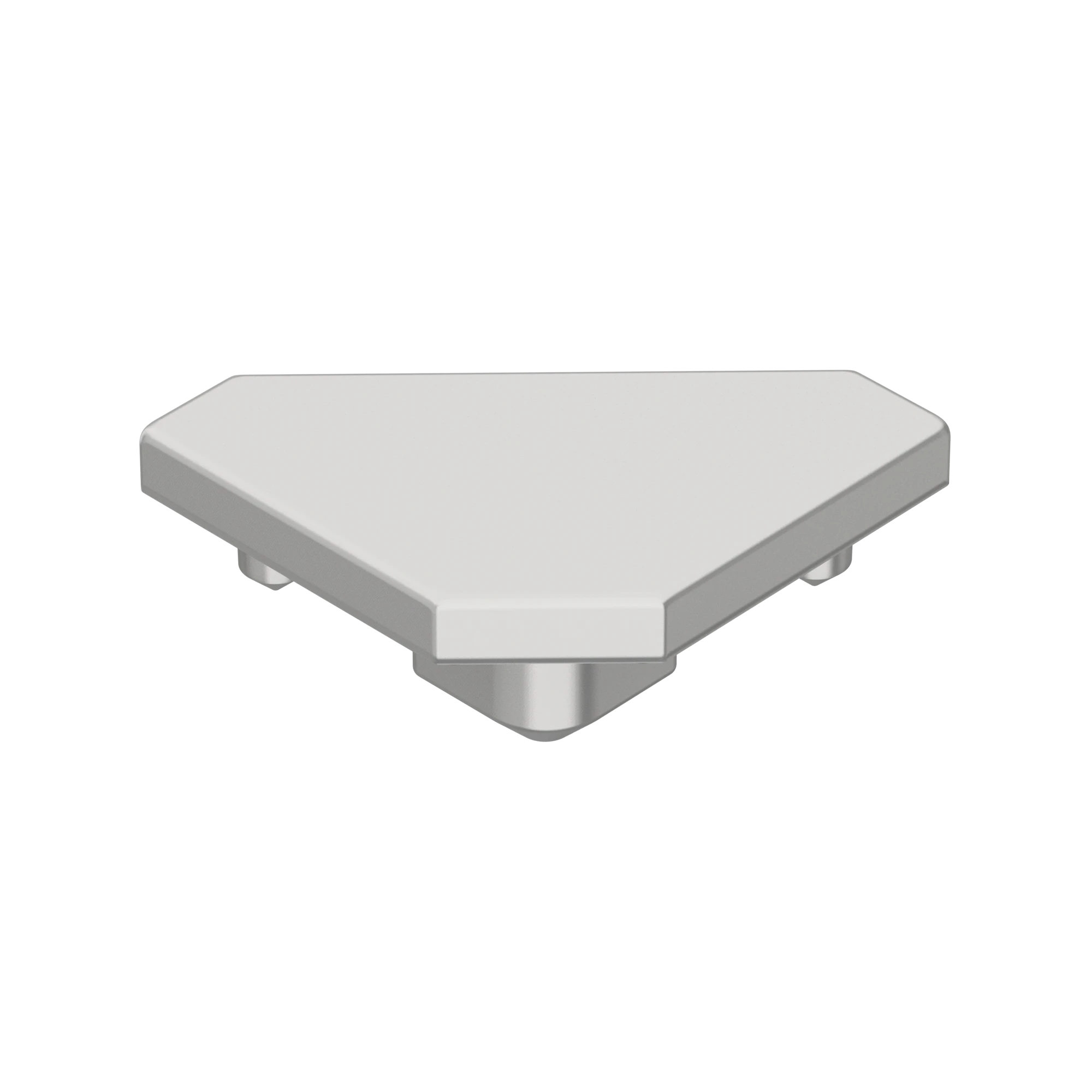

M 1650.39End platefor M 1622L 22 × W 22 × H 15 mm
M 1650.41End platefor M 1622L 22 × W 22 × H 15 mm

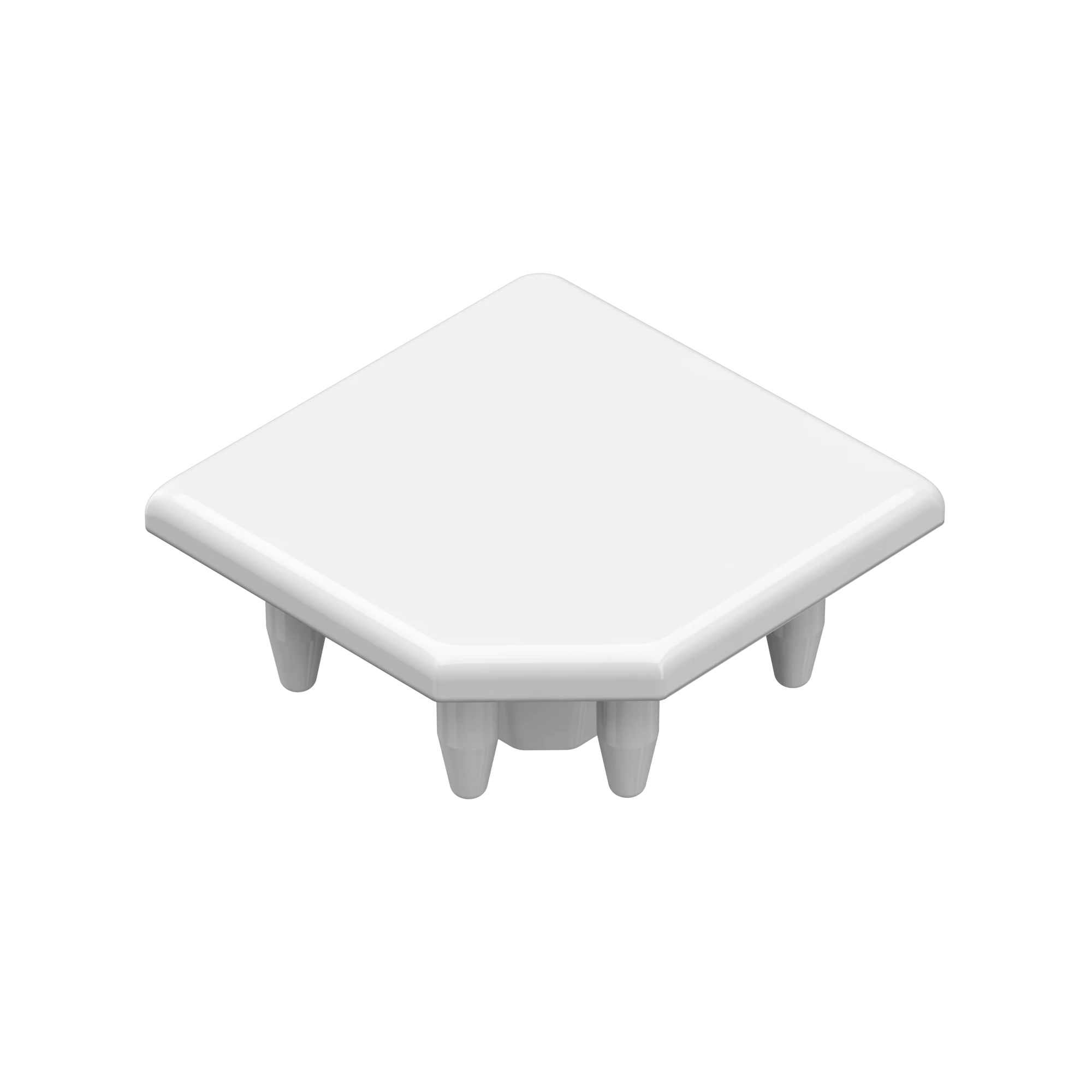

M 1665.35End capfor M 1625L 22 × W 22 × H 12 mm

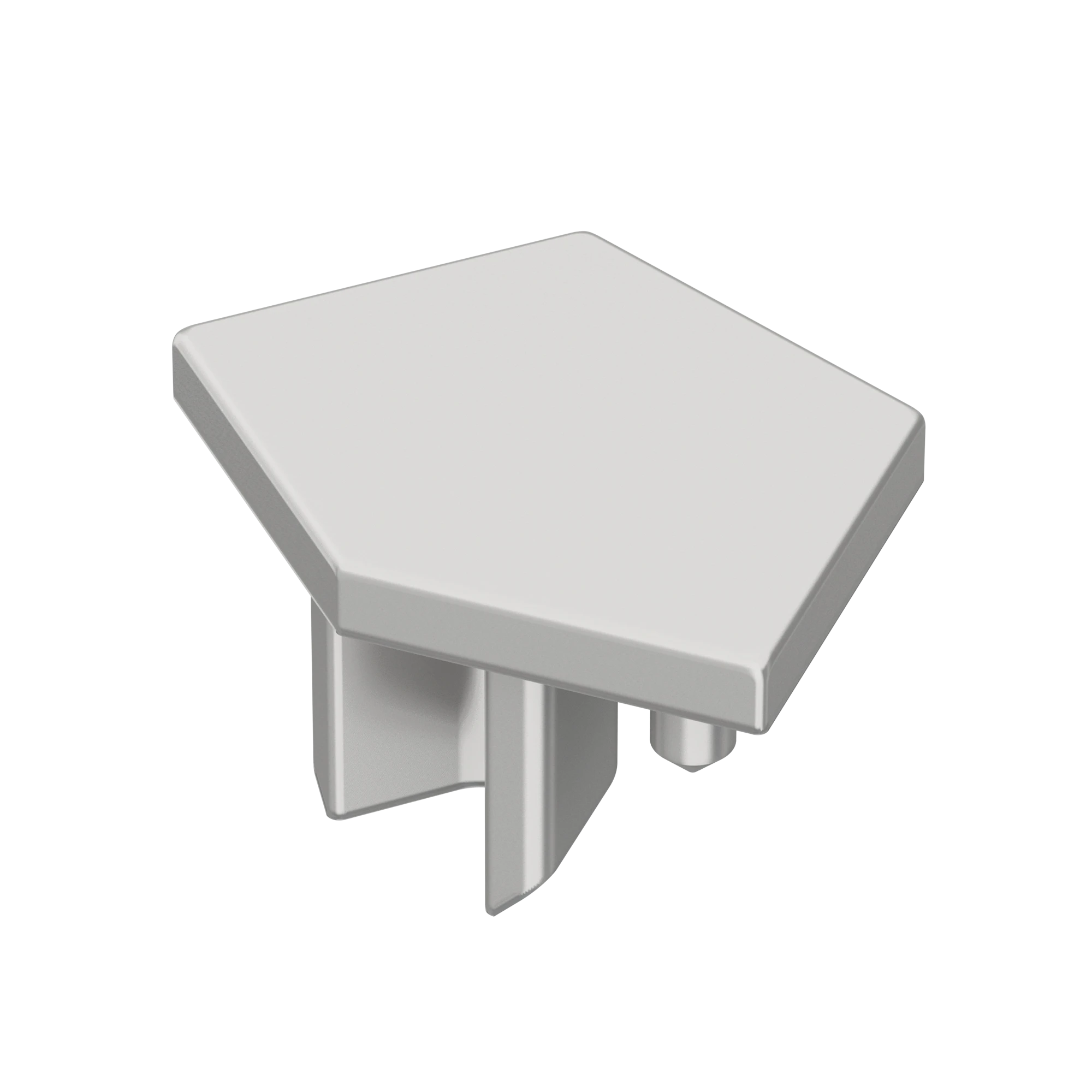

M 1685.41End plate135°for M 1629L 29 × W 21 × H 15 mm

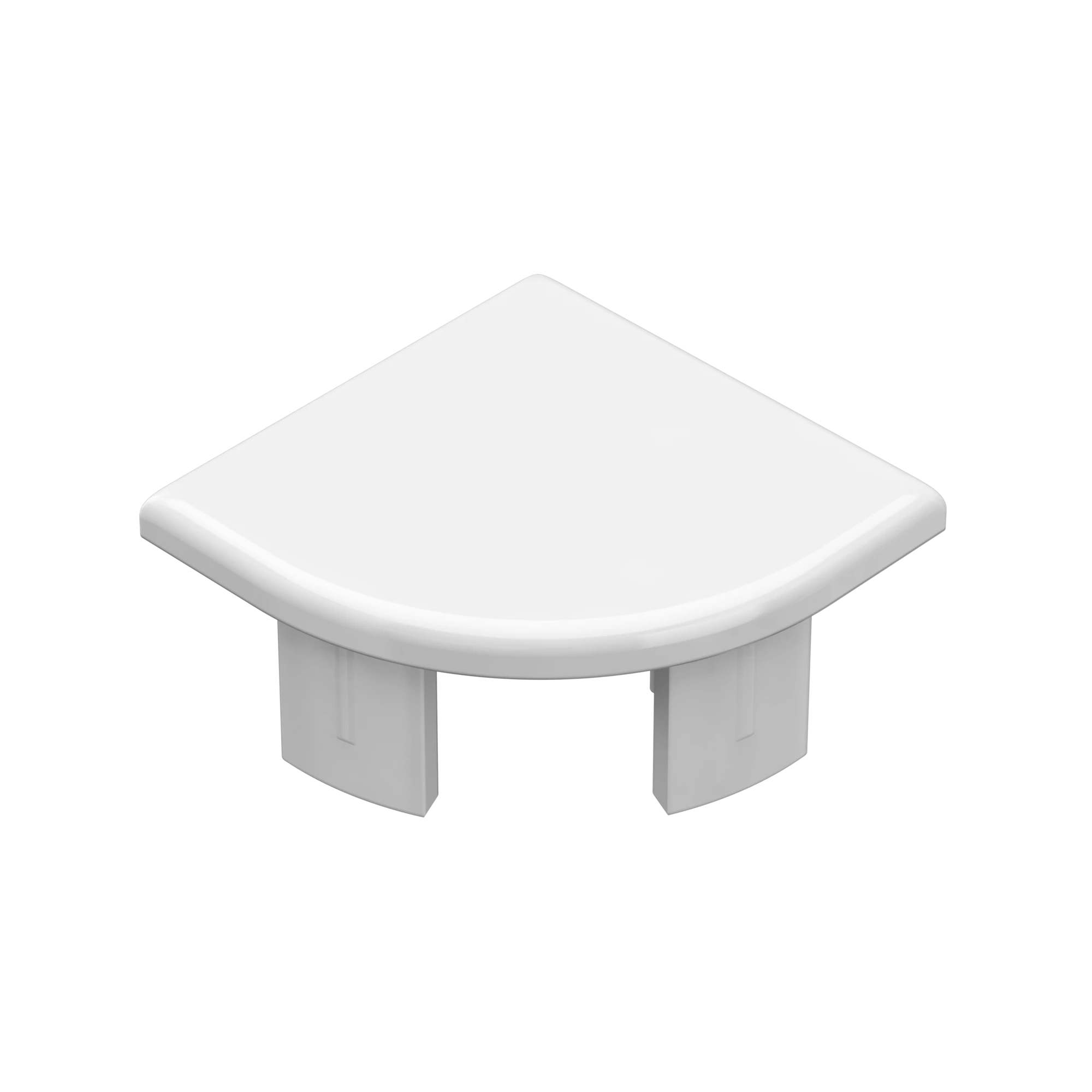

S 1130.35End capfor S 1100/S 1105L 32 × W 32 × H 14 mm

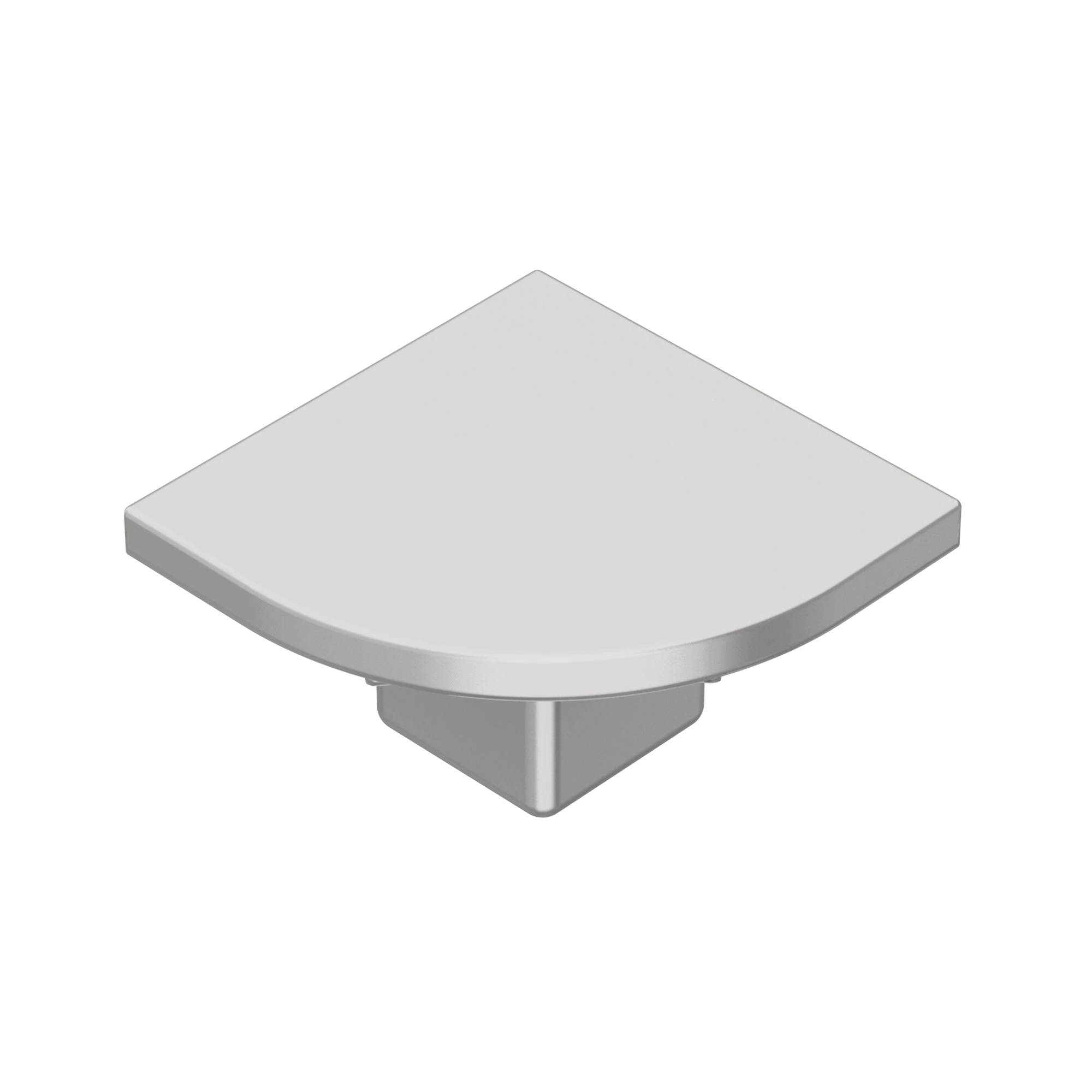

S 1131.39End platefor S 1100/S 1105L 32 × W 32 × H 23 mm

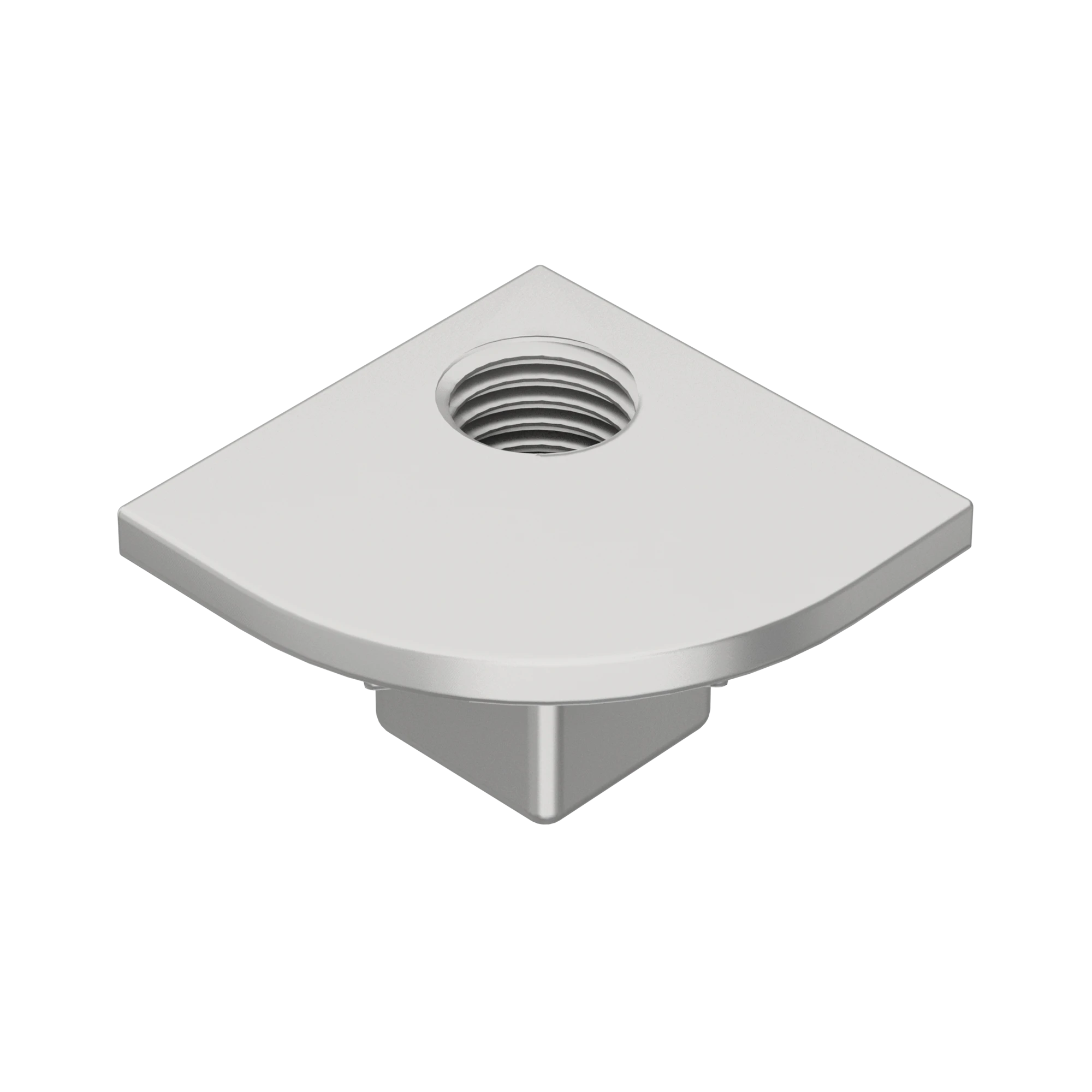

S 1132.00Threaded plugM10for S 1100/S 1105L 14 × W 14 × H 36 mm

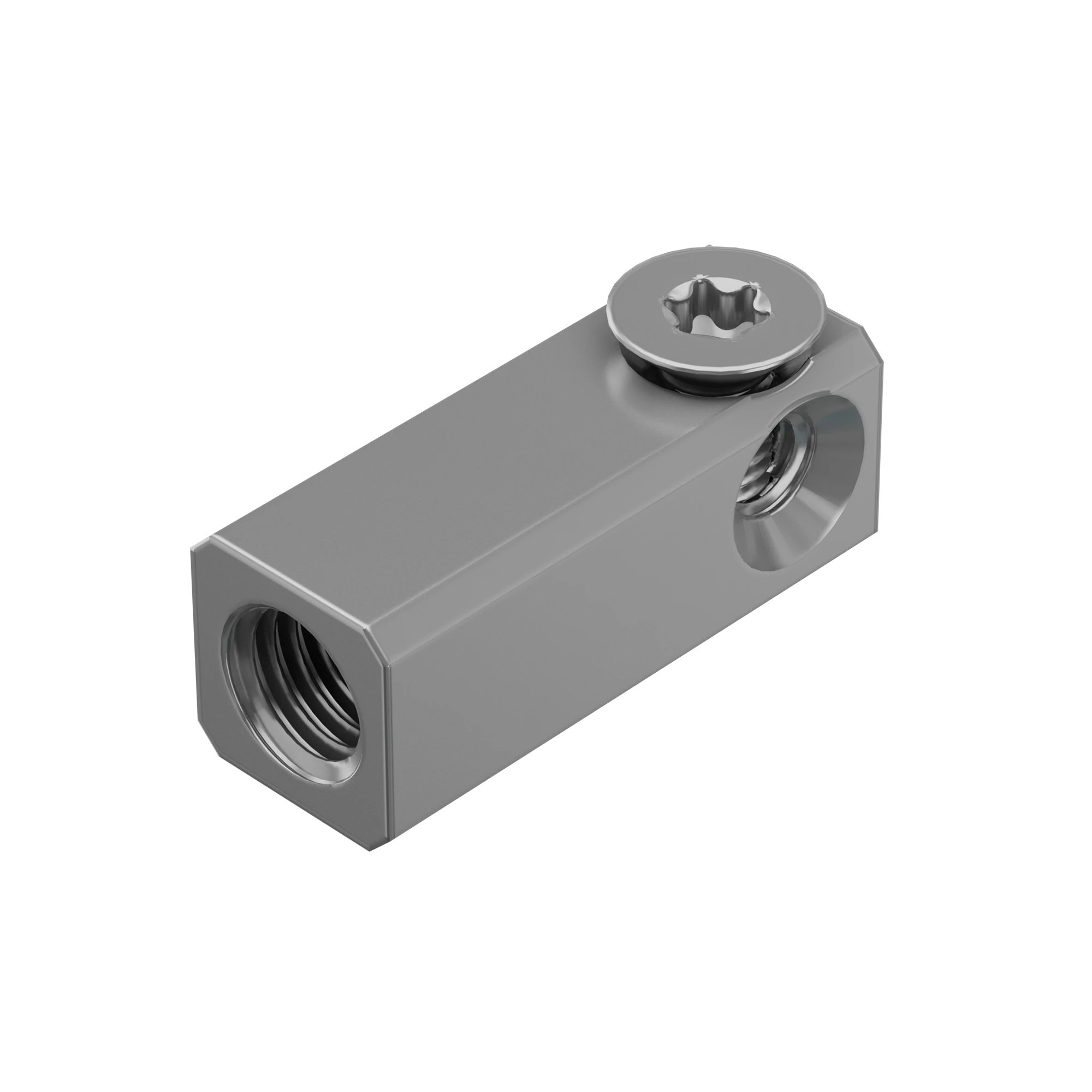

S 1133.37Threaded plugM10L 36 × W 14 × H 14 mm

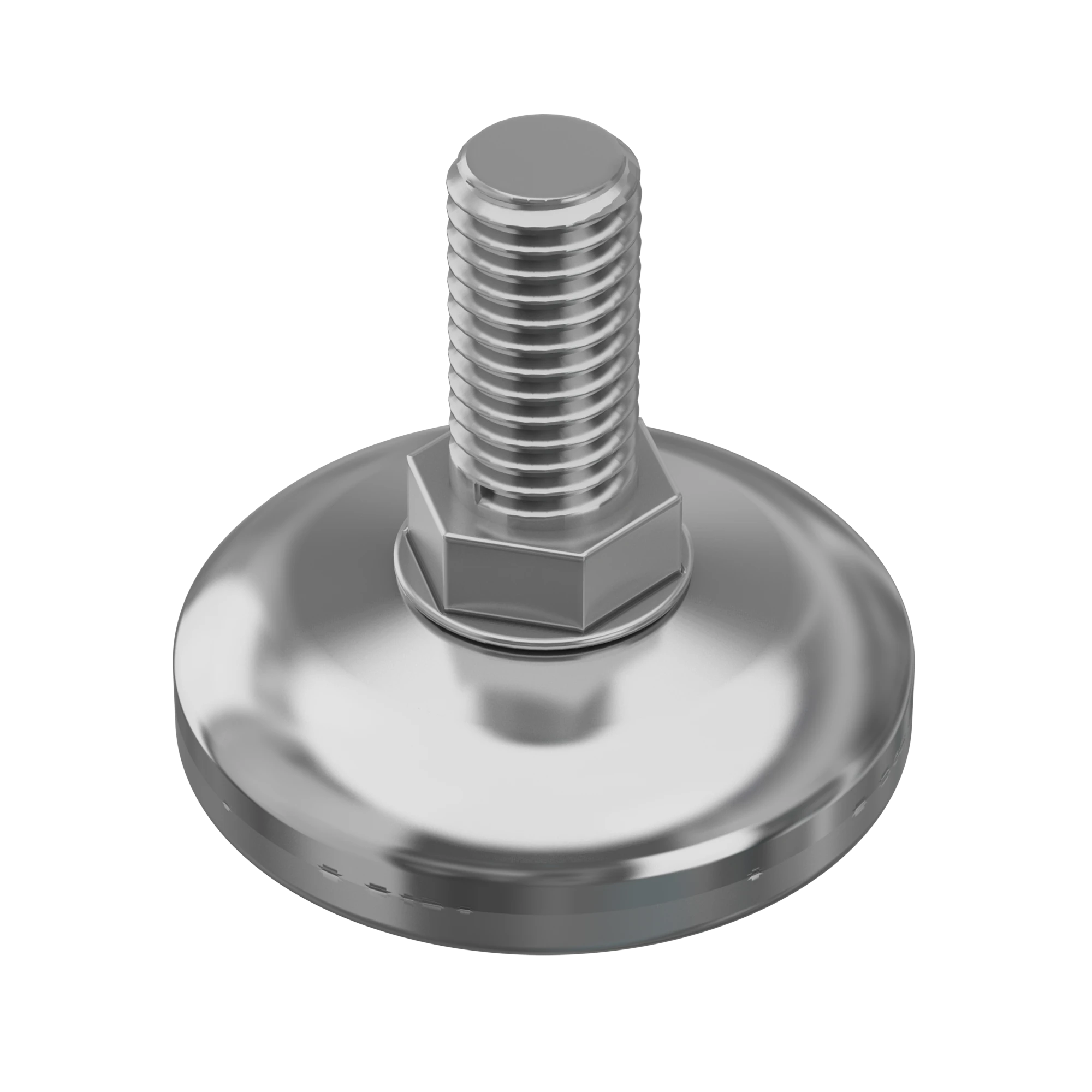

S 1140.41Adjustable foot20-28 mmL 40 × W 40 × H 39 mm

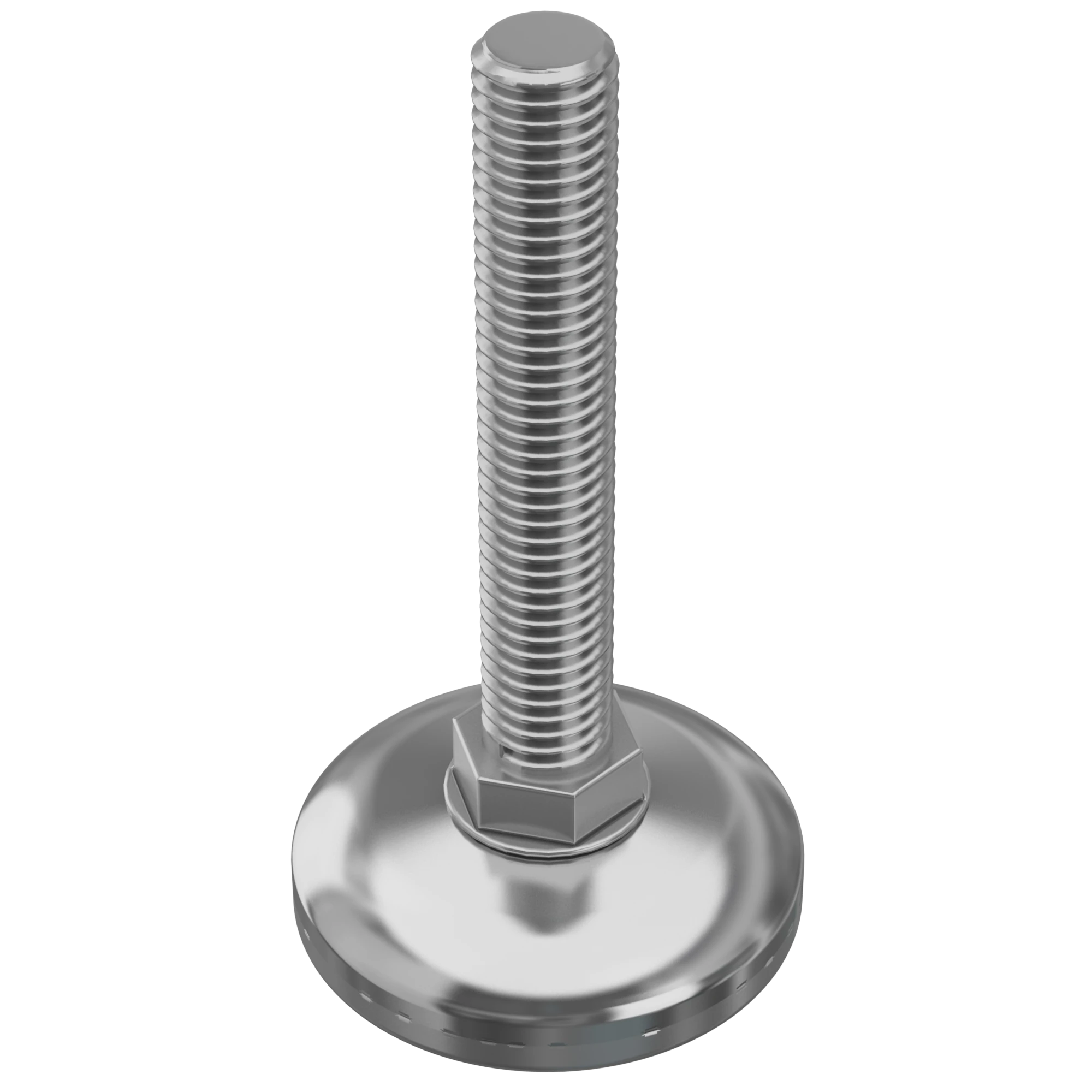

S 1141.41Adjustable foot20-45 mmL 40 × W 40 × H 78 mm

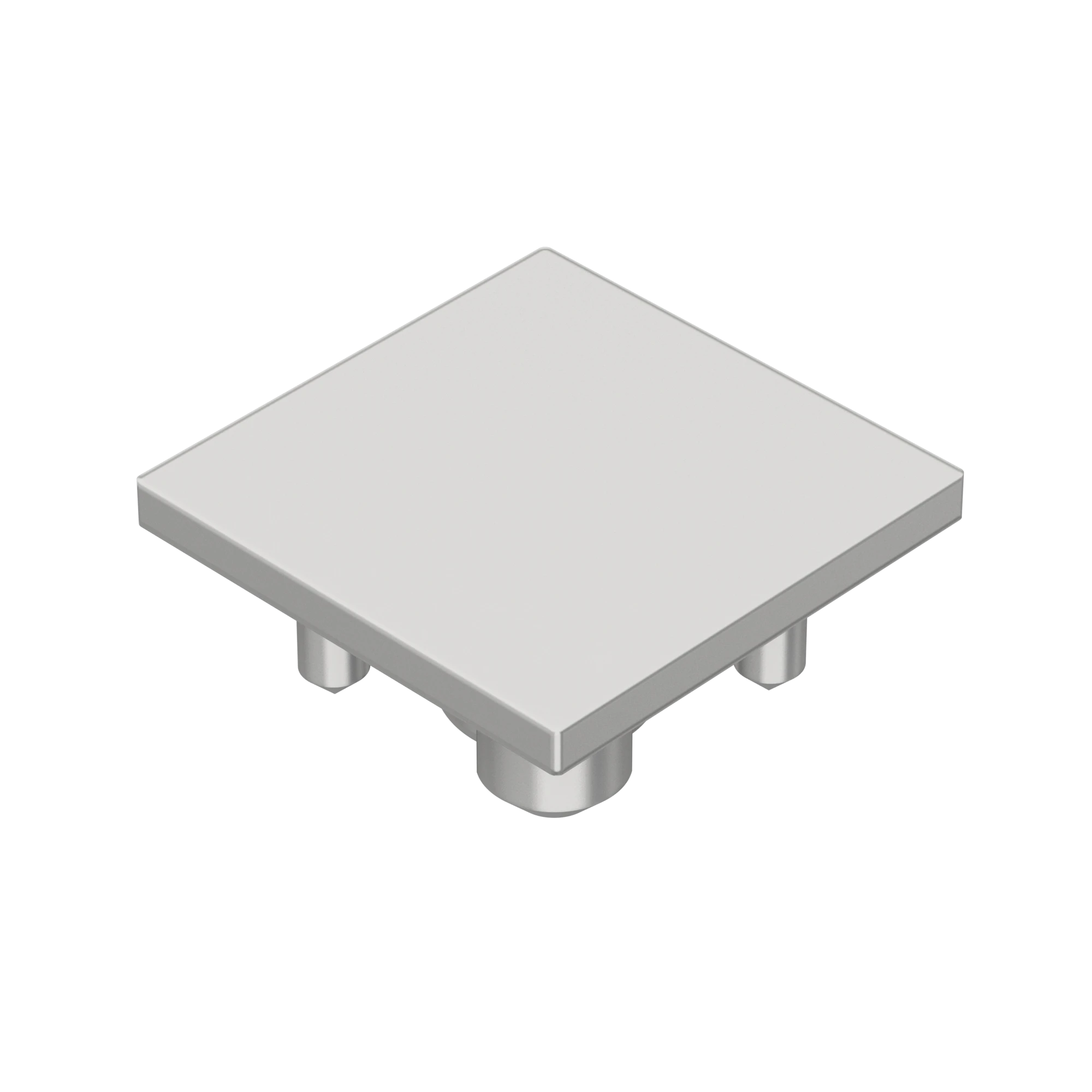

S 1142.39End platefor S 1125L 32 × W 32 × H 23 mm

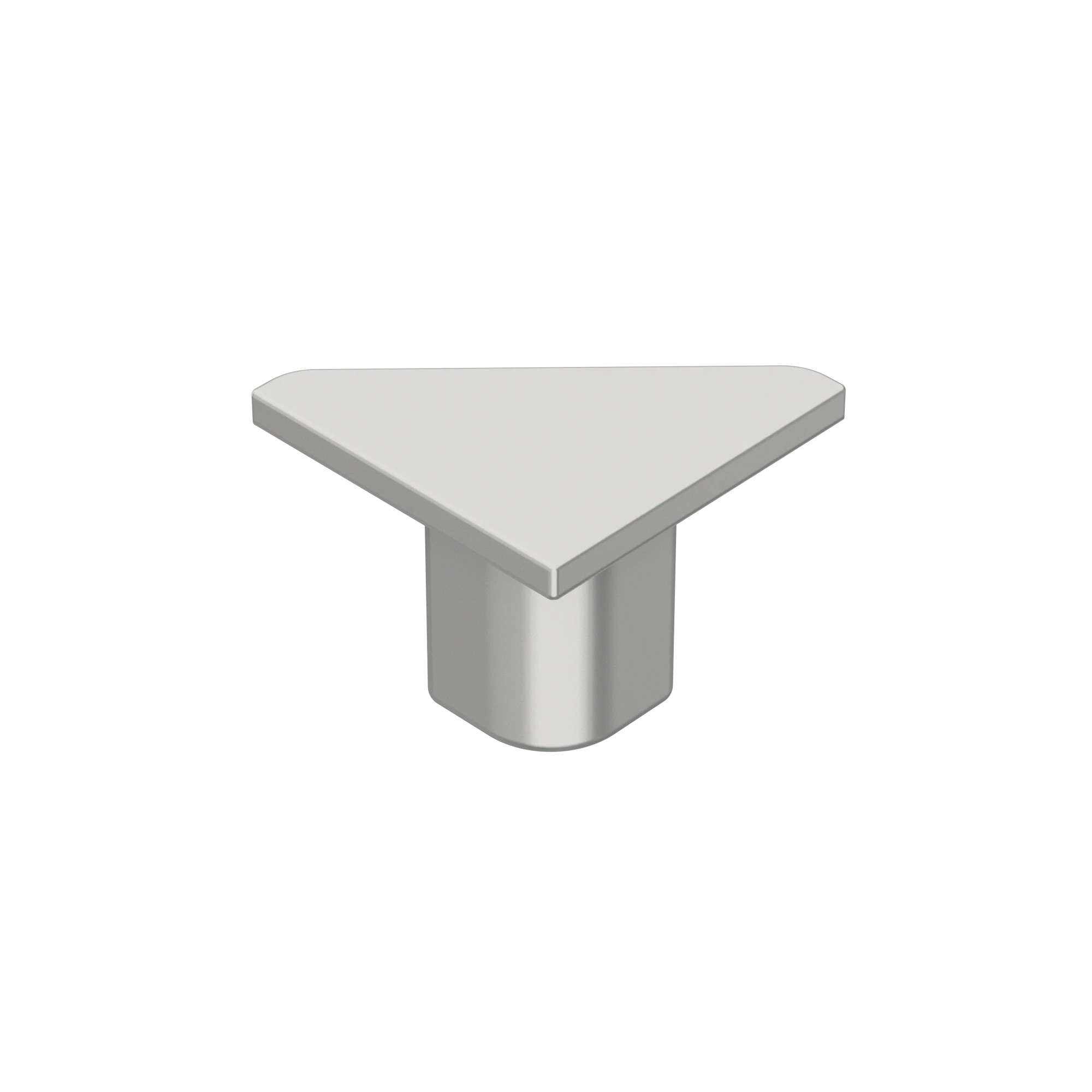

S 1334.39End platefor S 1303L 33 × W 33 × H 23 mm
S 1334.41End platefor S 1303L 33 × W 33 × H 23 mm
Doors
26

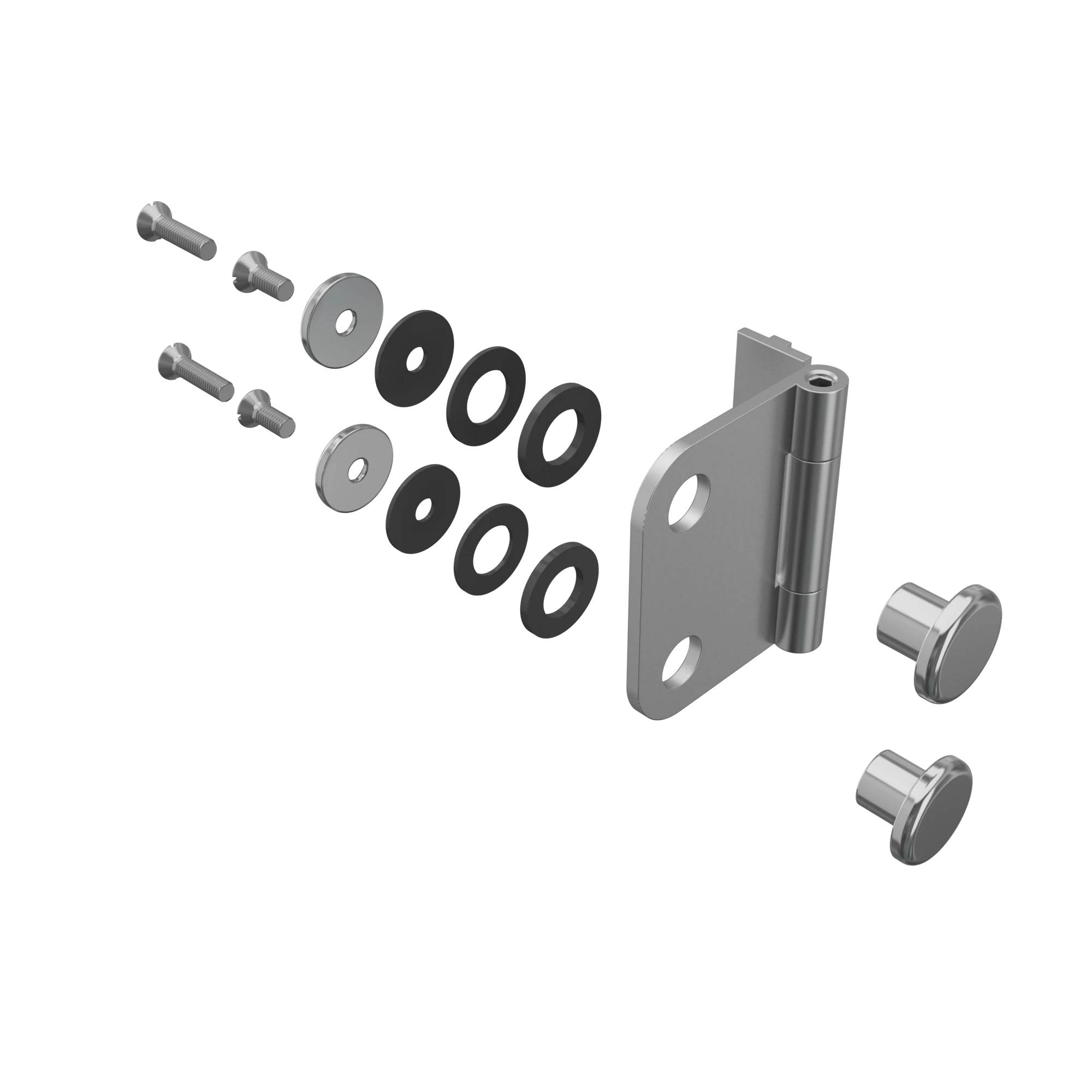

E 290.01Door hingefor hinged doorsL 60 × W 50 × H 4 mm

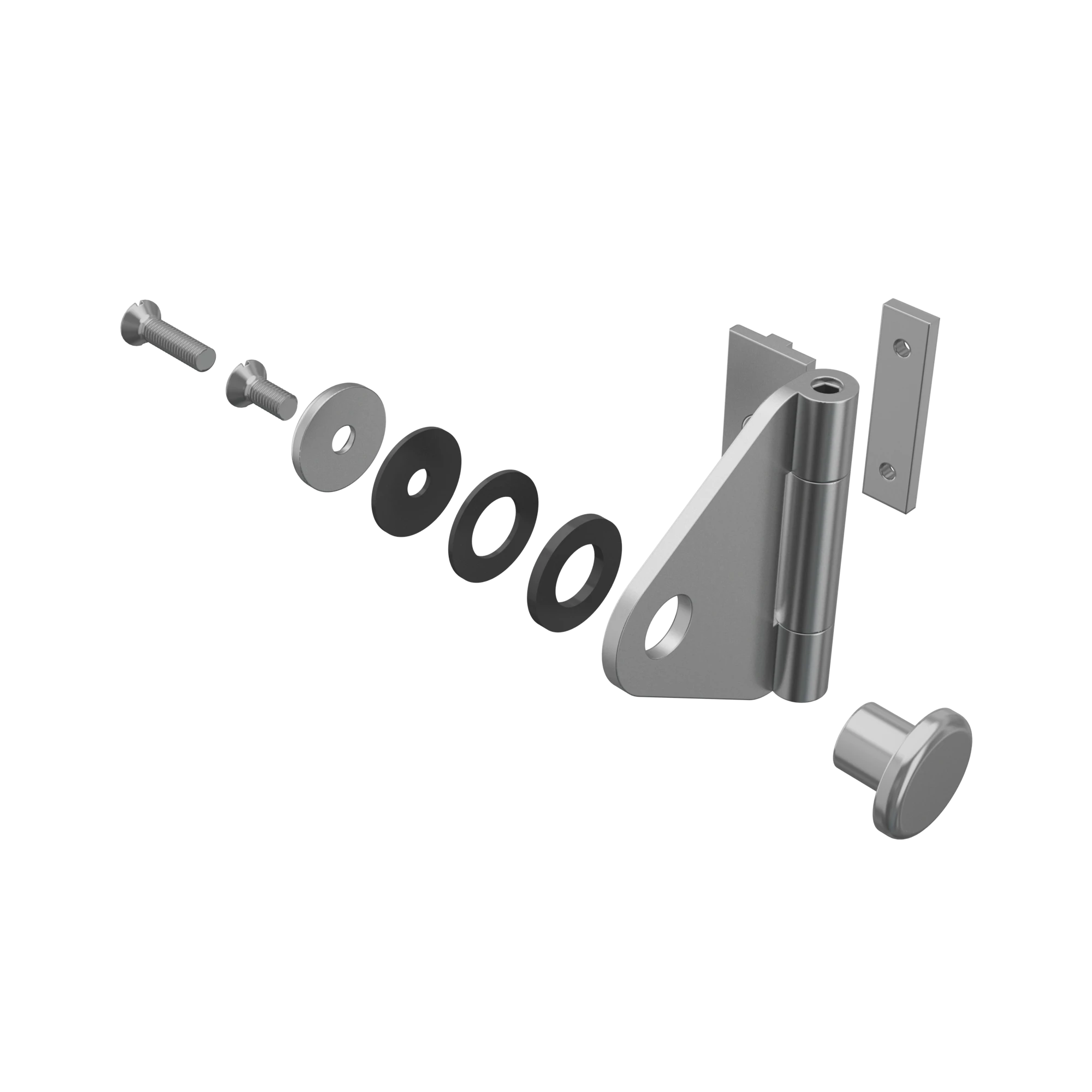

E 290/D.01Door hingefor hinged doorsL 140 × W 80 × H 11 mm
E 291.38Hingedfor hinged wooden doorsL 25 × W 15 × H 40 mm
E 292.38Hingedfor hinged glass doorsL 30 × W 50 × H 25 mm
E 295/N.33Sliding door lockfor panel 4-6 mmL 140 × W 80 × H 35 mm

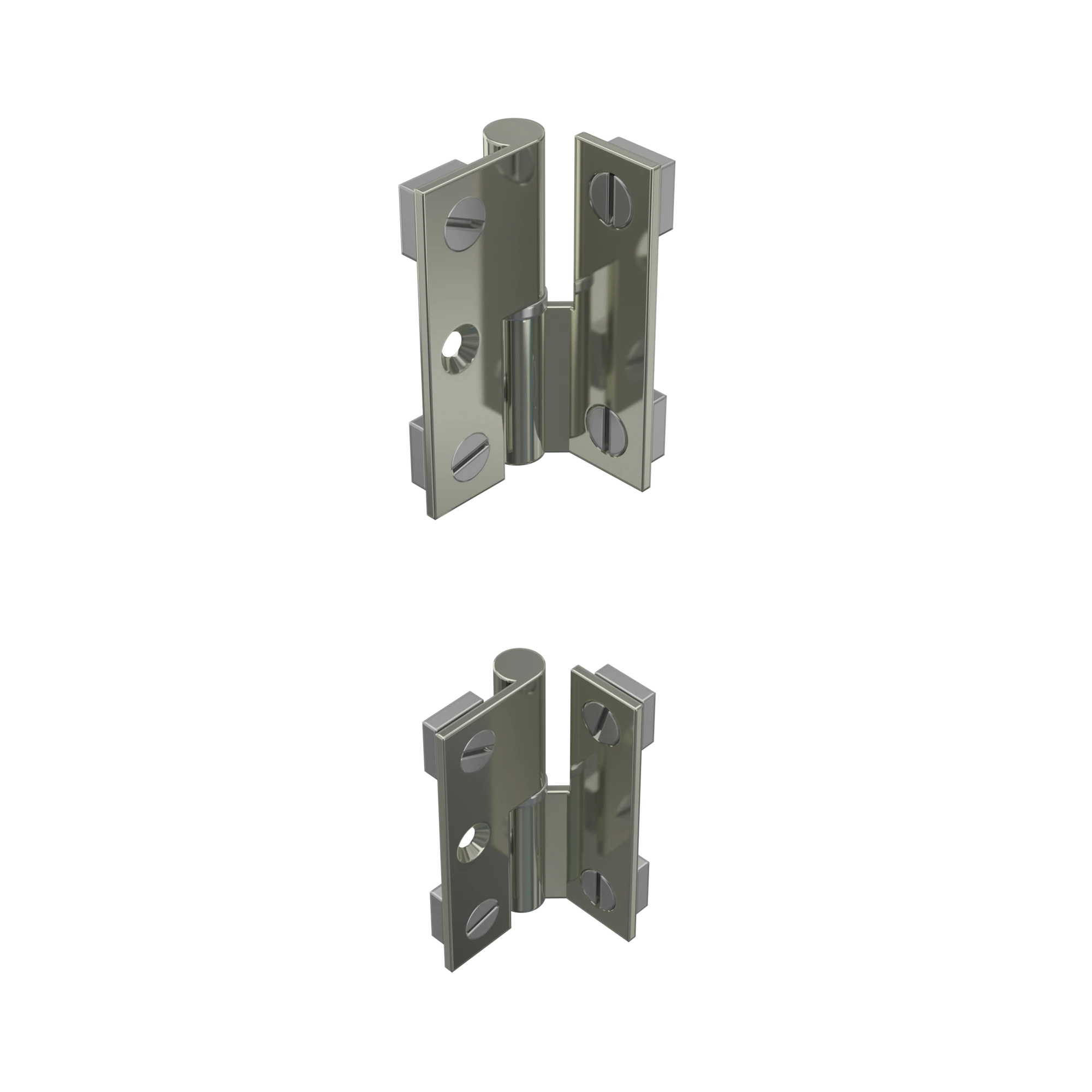

E 296/L.38Door hingeleftfor hinged wooden doorsL 140 × W 80 × H 11 mm

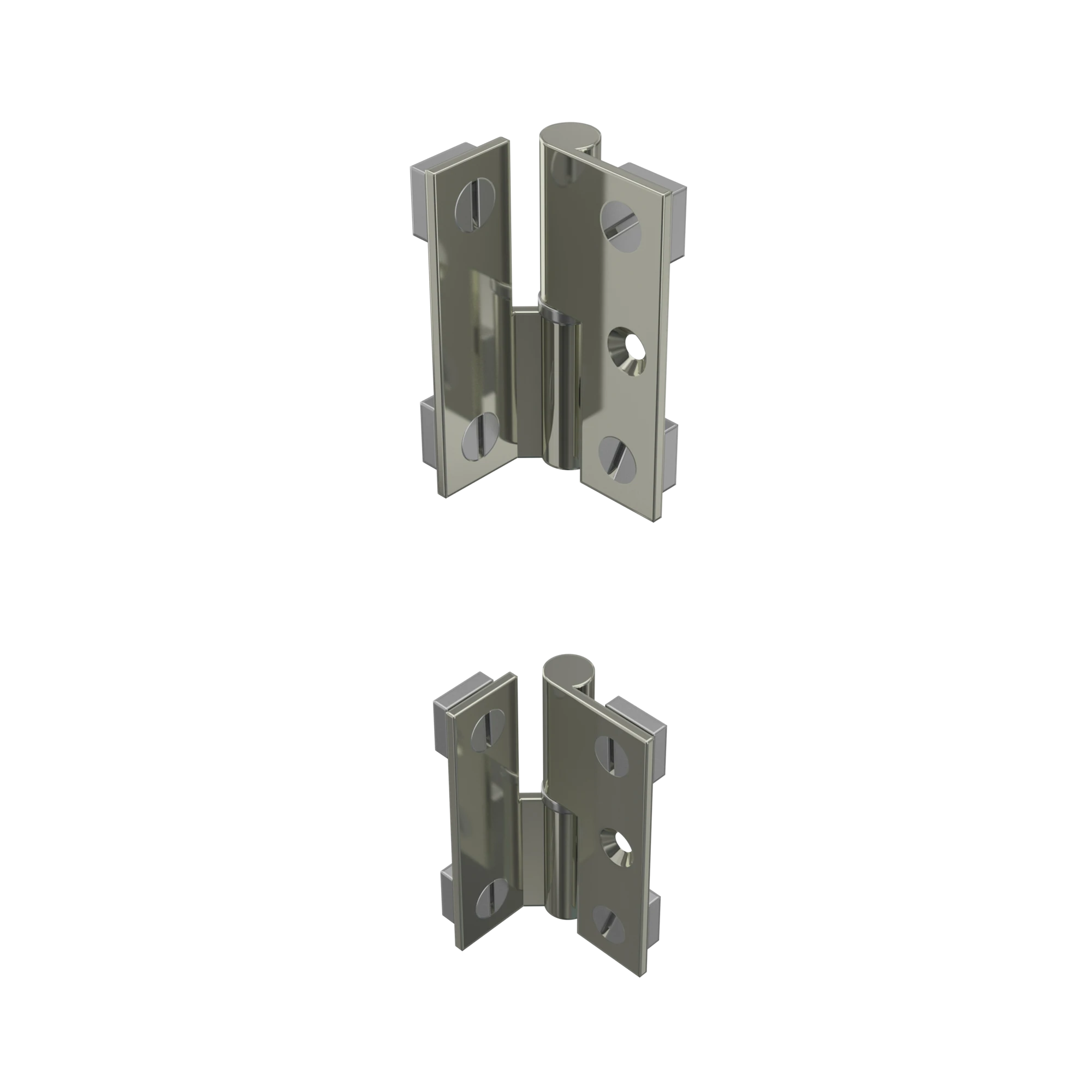

E 296/R.38Door hingerightfor hinged wooden doorsL 140 × W 80 × H 11 mm

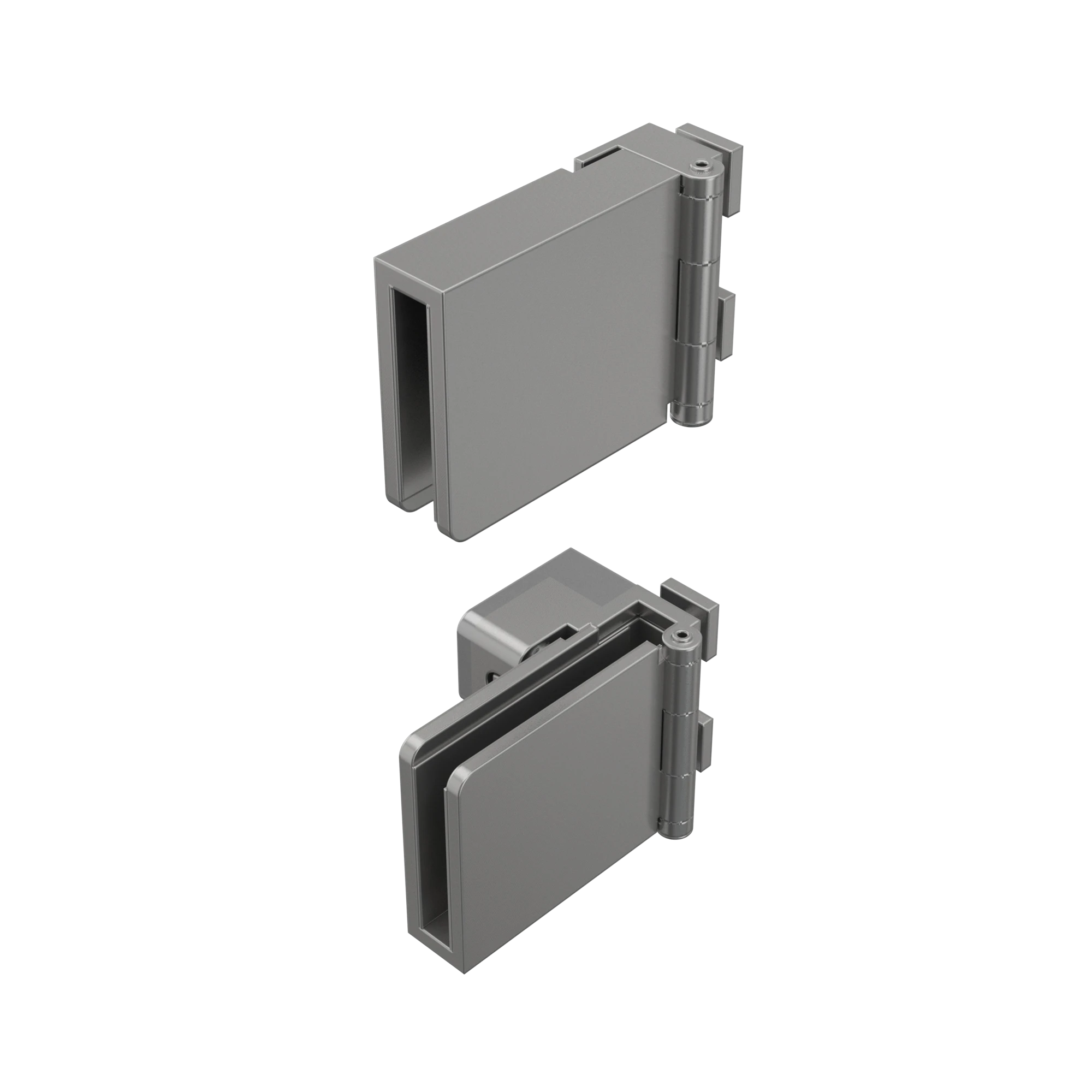

E 297.39Glassfor glass 5-6 mmL 80 × W 52 × H 32 mm

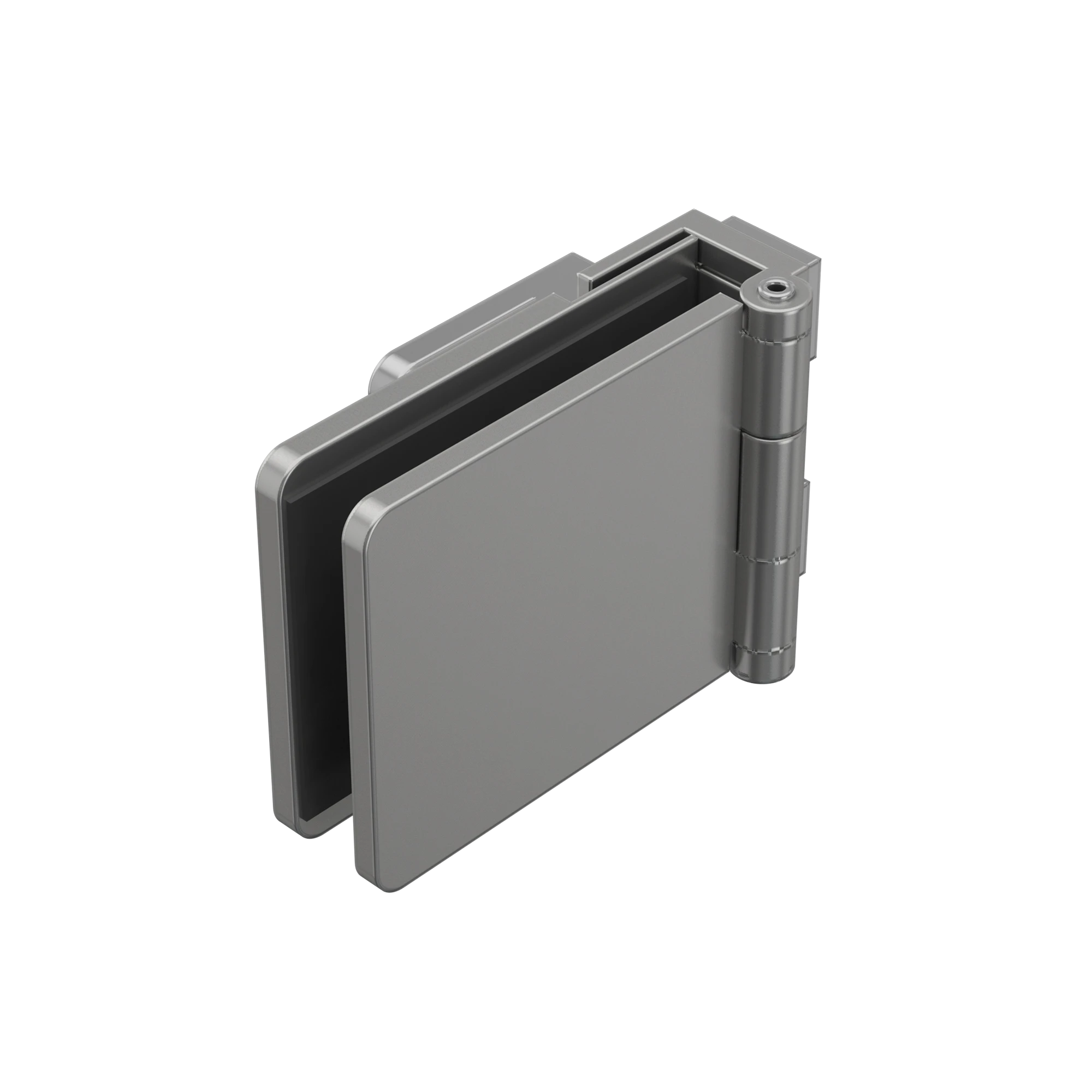

E 297/M.39Glasscenterfor glass 5-6 mmL 50 × W 38 × H 32 mm

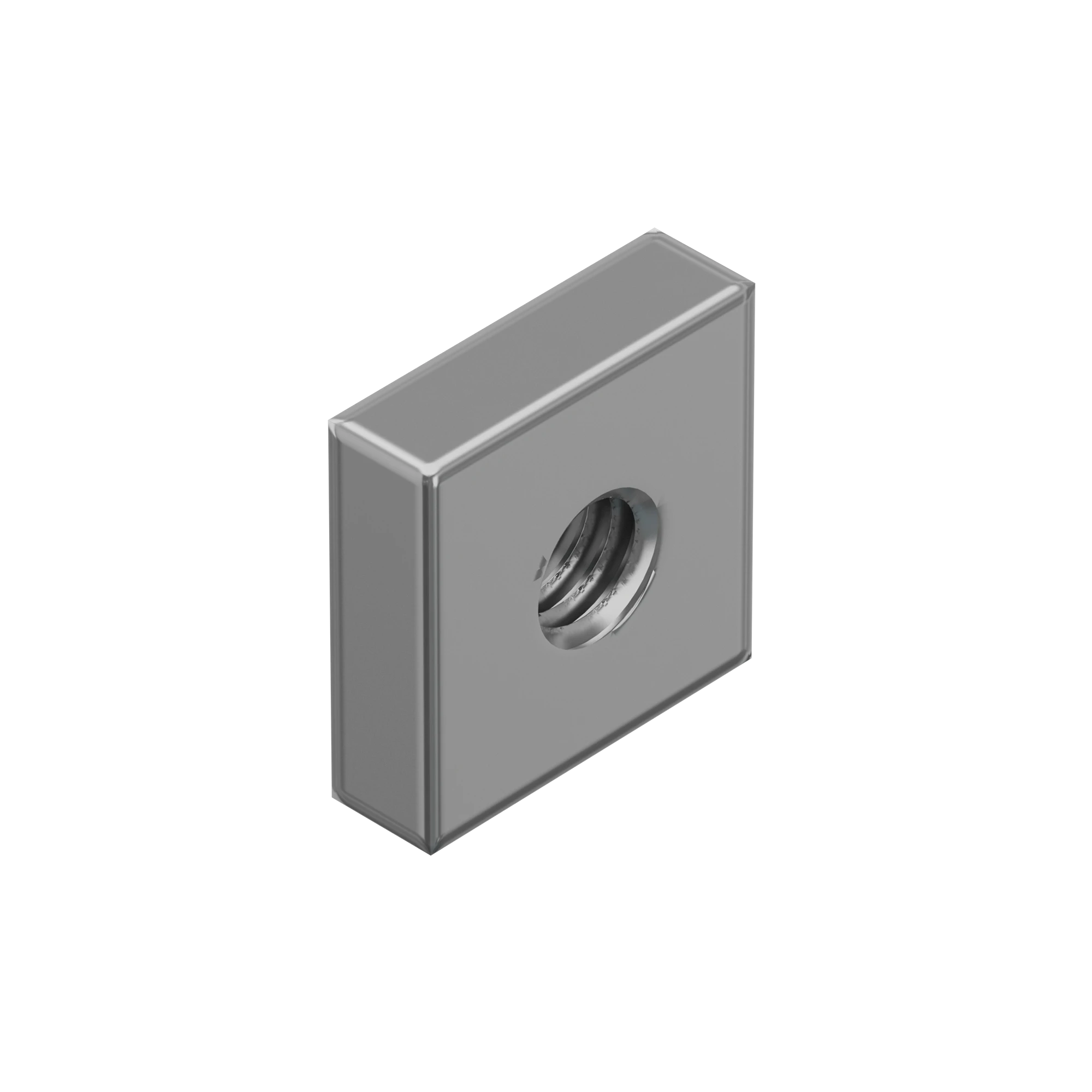

E 470/E.37Threaded platefemale thread M4L 10 × W 10 × H 3 mm

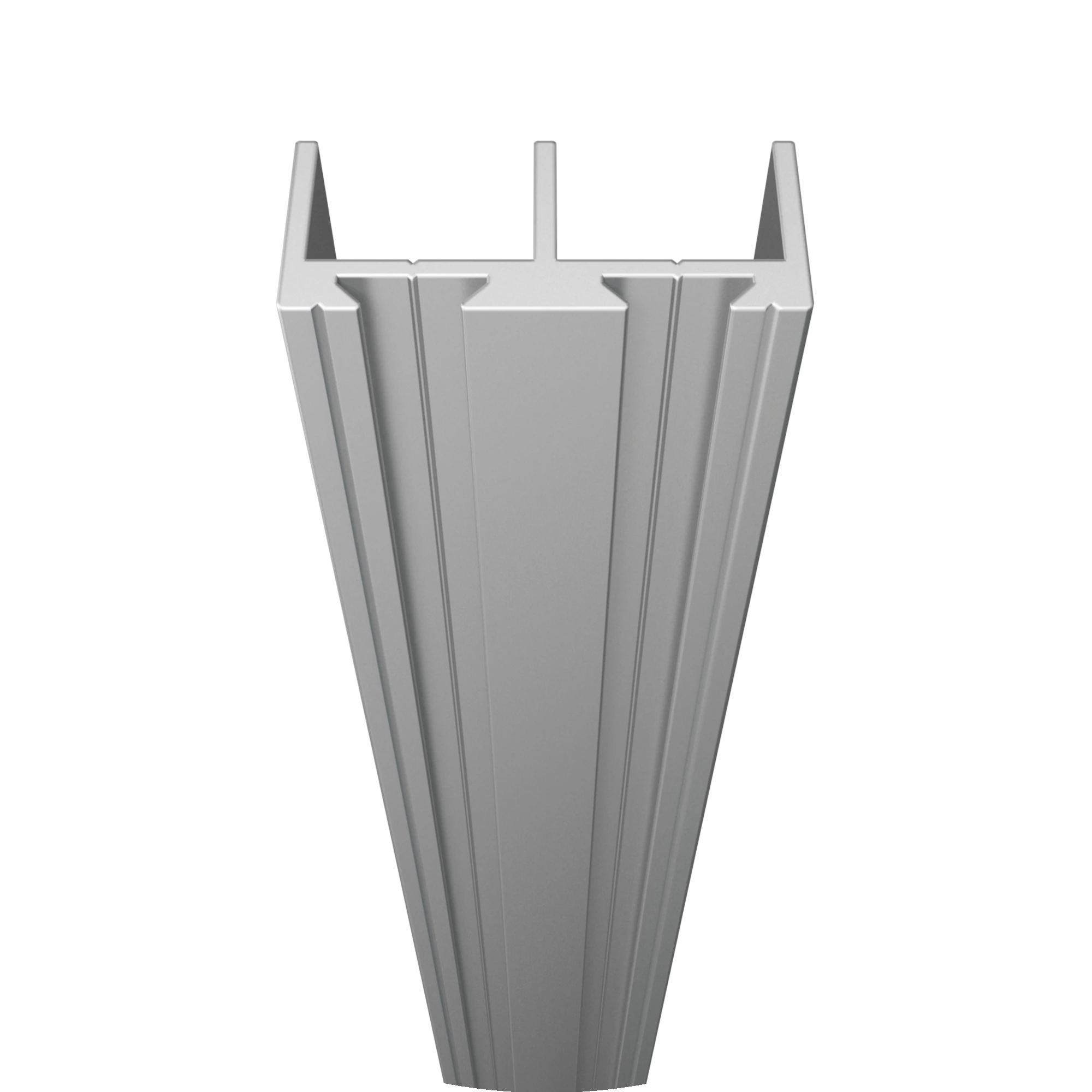

E 470/N.01door slide fittingfor glass sliding doorsL 5000 × W 32 × H 14 mm

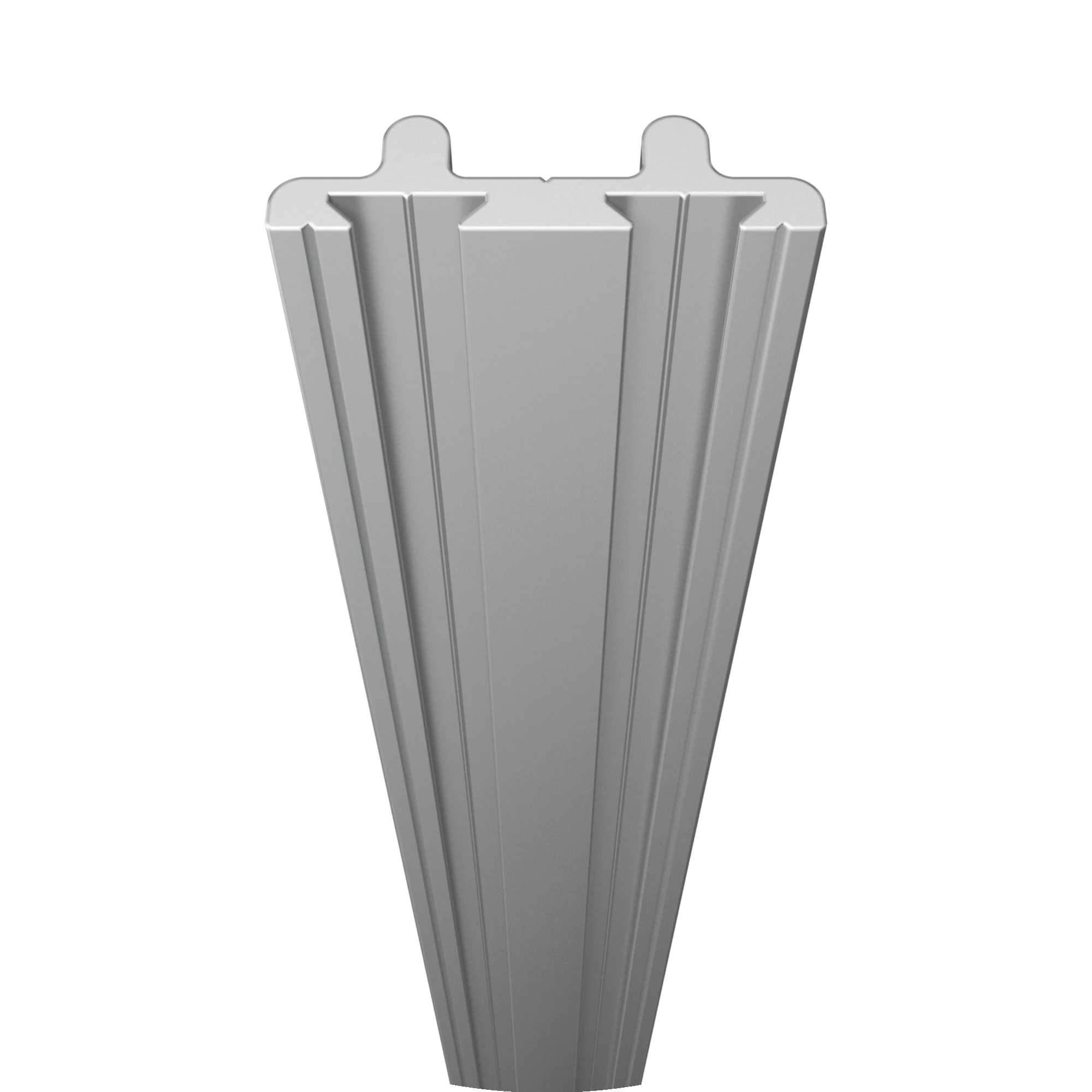

E 471/N.01door slide fittingfor E 472L 5000 × W 32 × H 9 mm

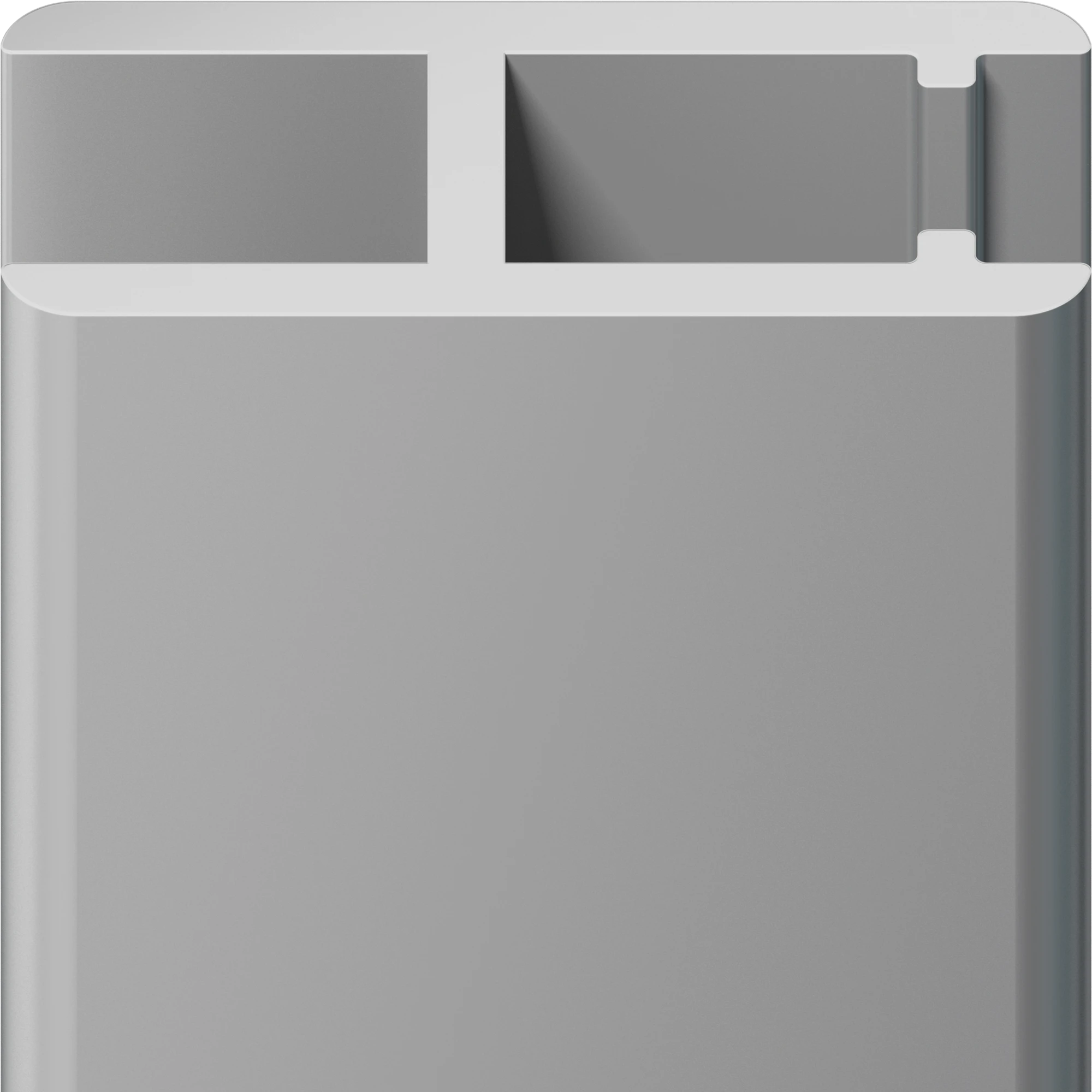

E 472.01Runner frame extrusionSliding doorfor glass 5-6 mmL 5000 × W 12 × H 28 mm

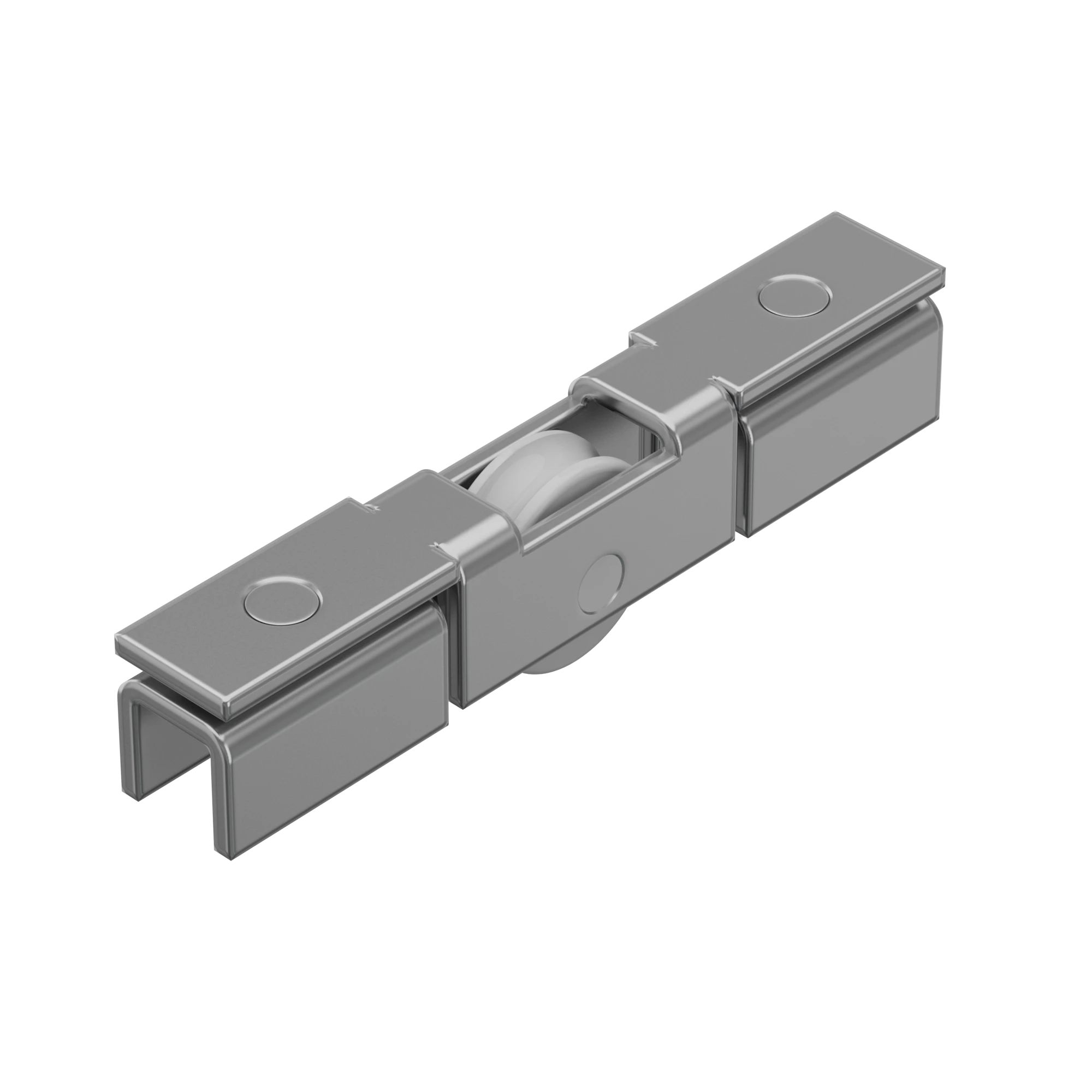

E 473.37Rollerfor E 472L 53 × W 13 × H 8 mm

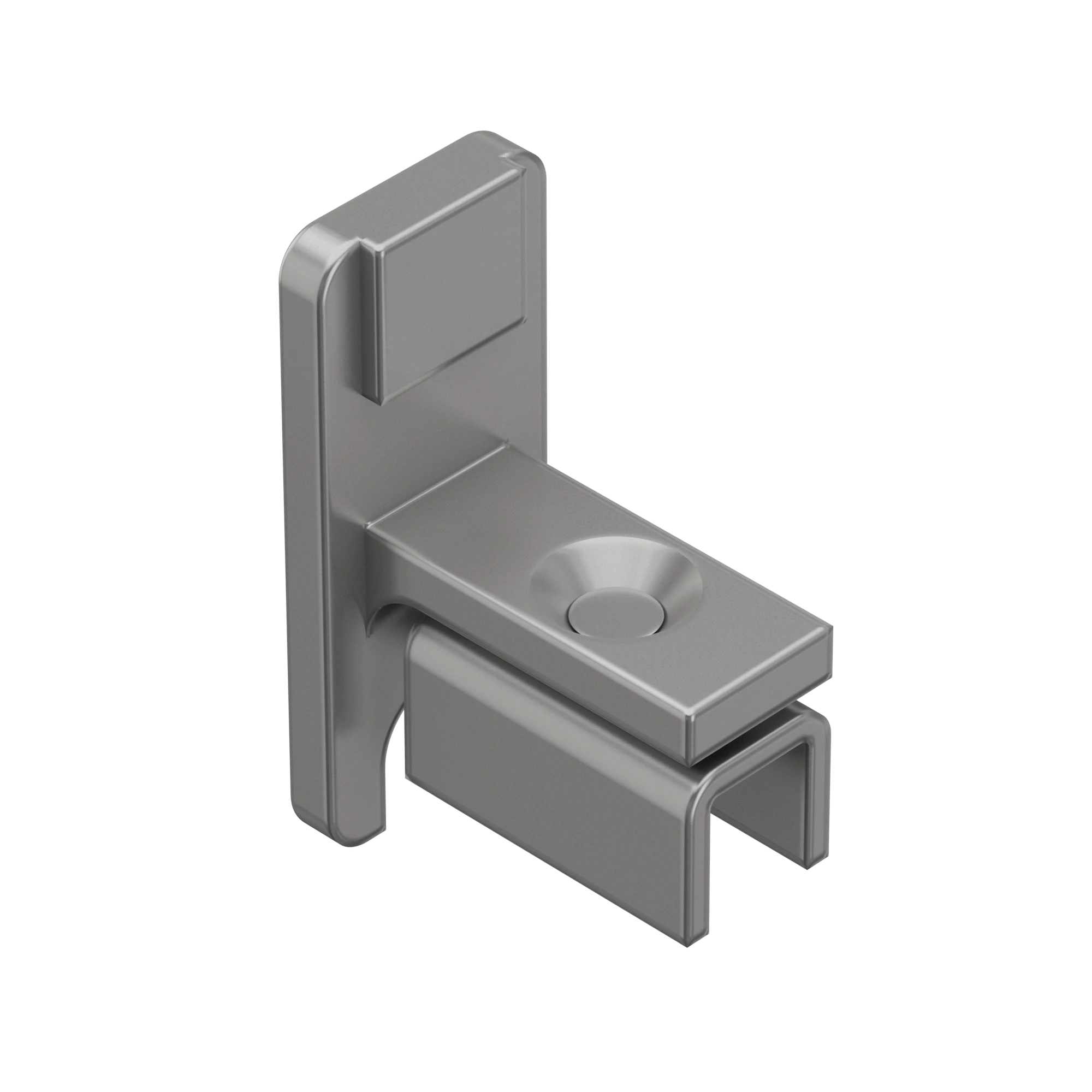

E 474.39End piecefor E 472L 28 × W 20 × H 12 mm

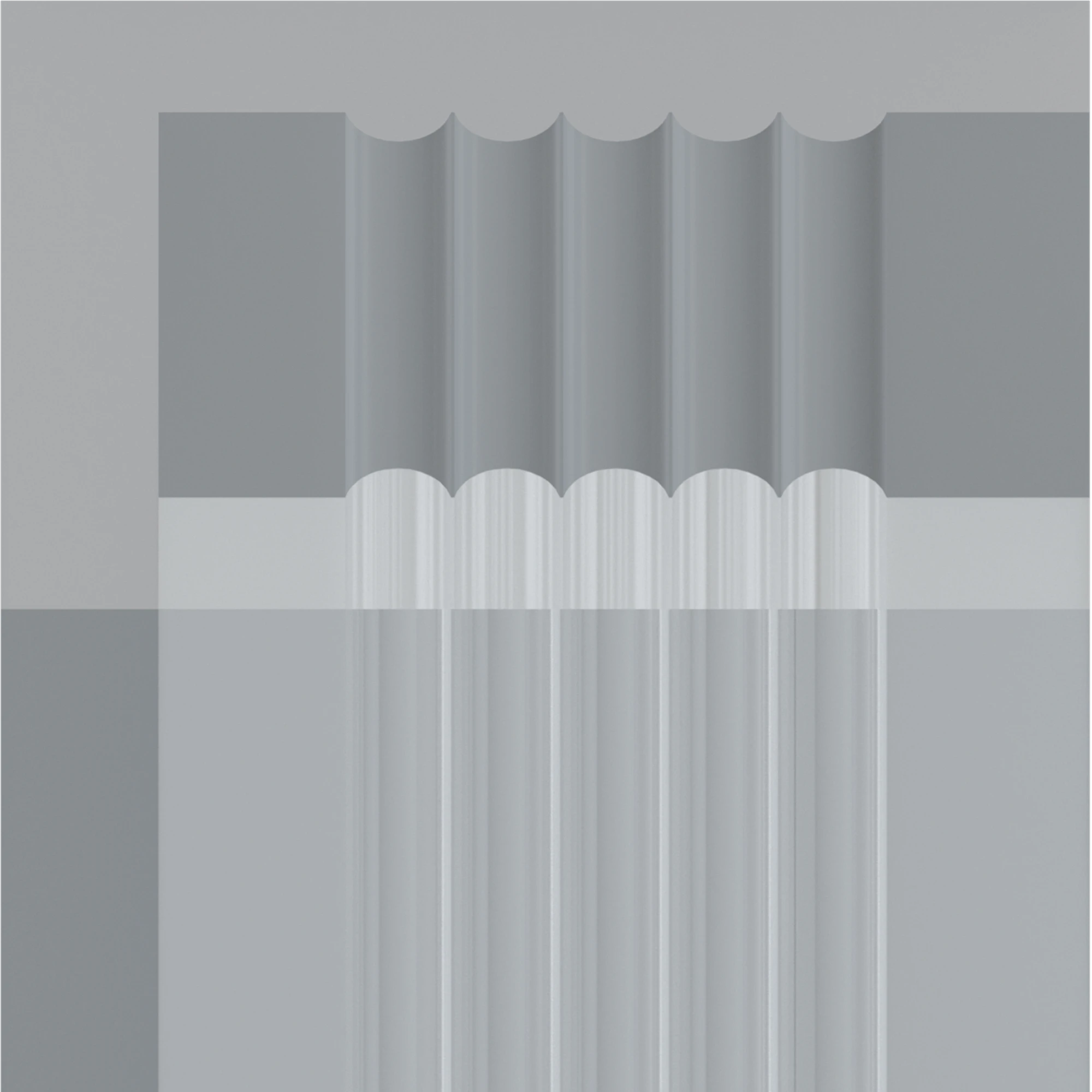

E 476.51Clamping extrusionfor glass 5 mmL 5000 × W 8 × H 10 mm
Connectors and corner pieces
33

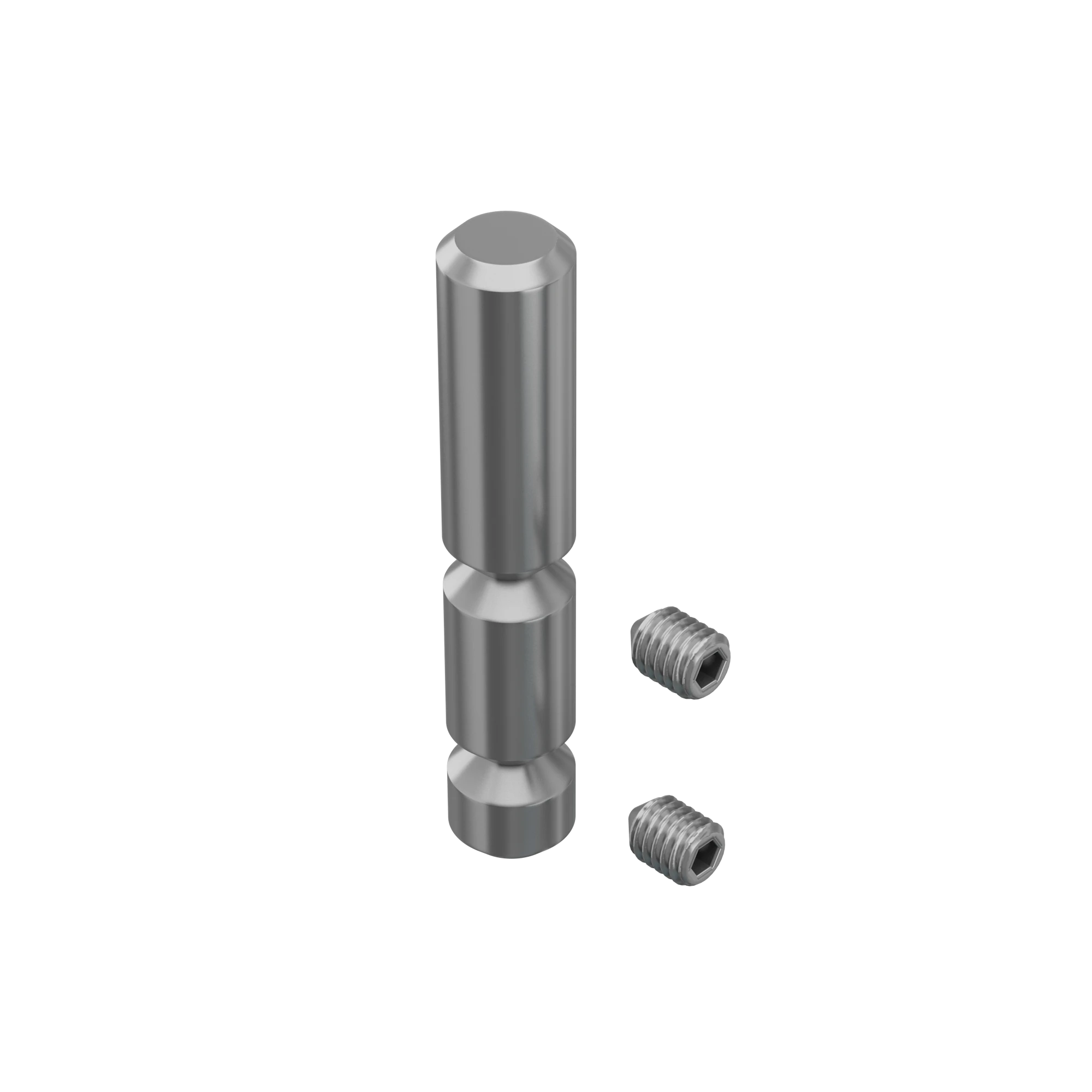

M 1144.37Internal connectorfor M 1140 + M 1457L 60 × W 11 × H 11 mm
M 1653.39Knuckle90°for 3 × M 1622L 48 × W 48 × H 48 mm

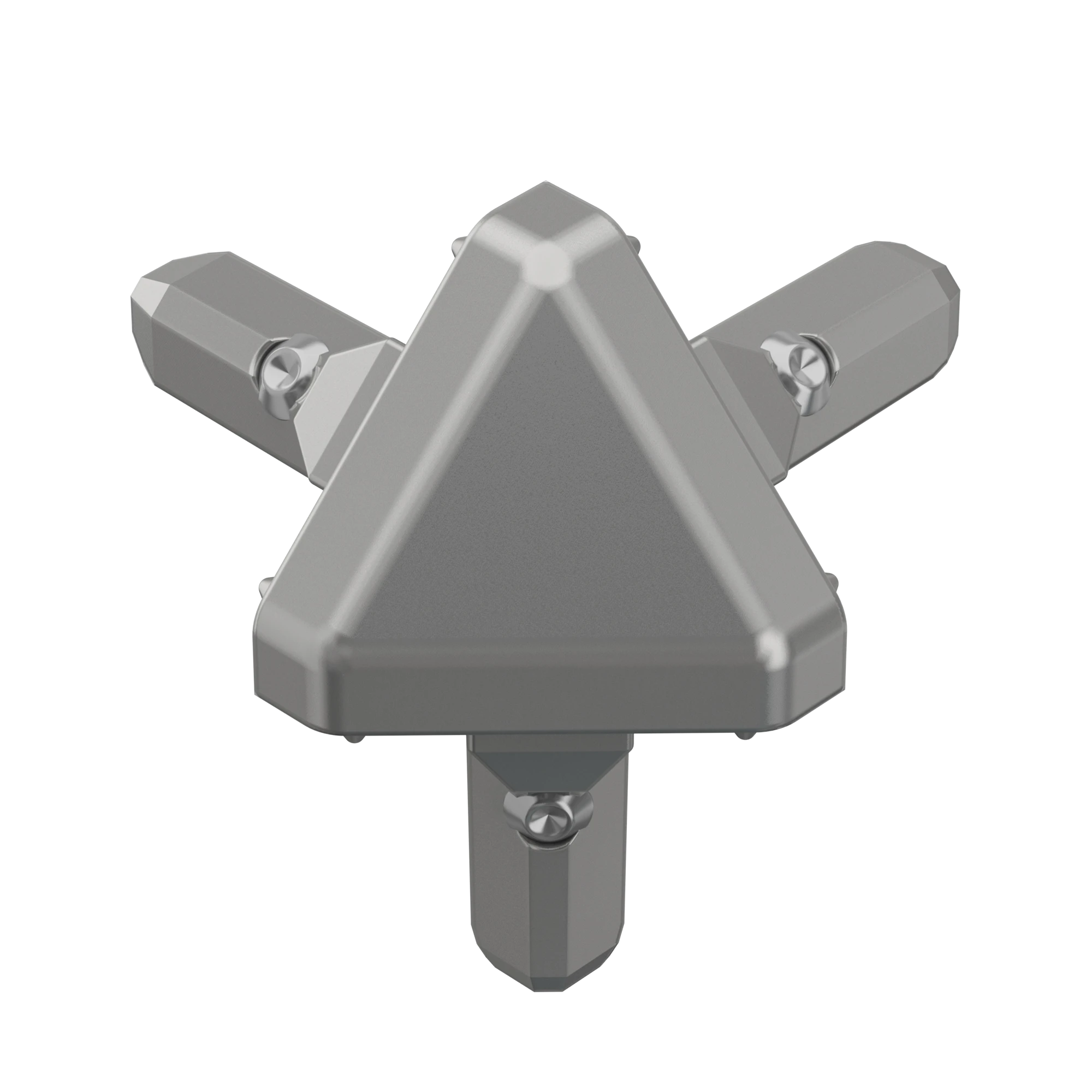

M 1653.41Knuckle90°for 3 × M 1622L 48 × W 48 × H 48 mm
M 1662.39Knuckle90°for 2 × M 1606L 46 × W 46 × H 40 mm

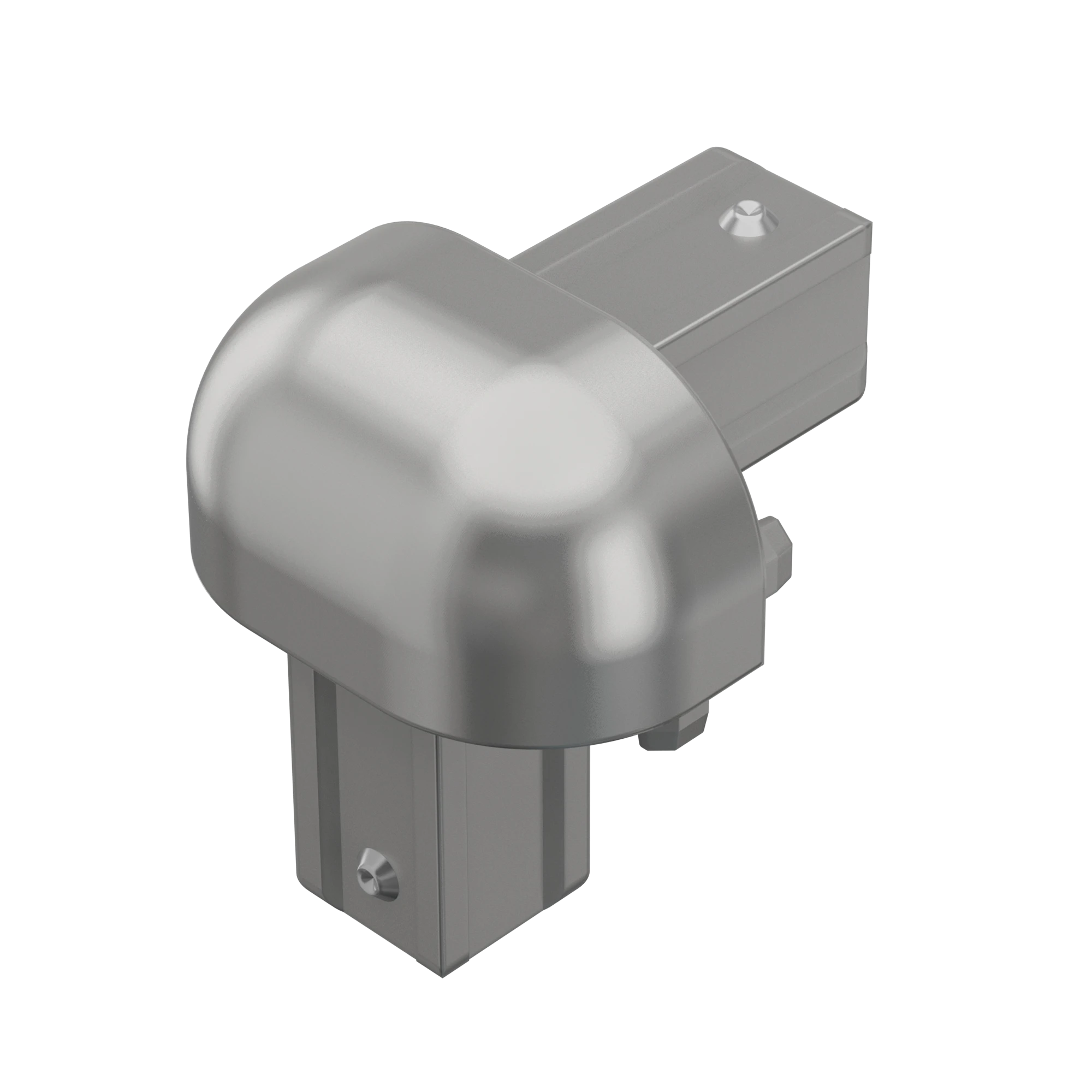

M 1662.41Knuckle90°for 2 × M 1606L 46 × W 46 × H 40 mm

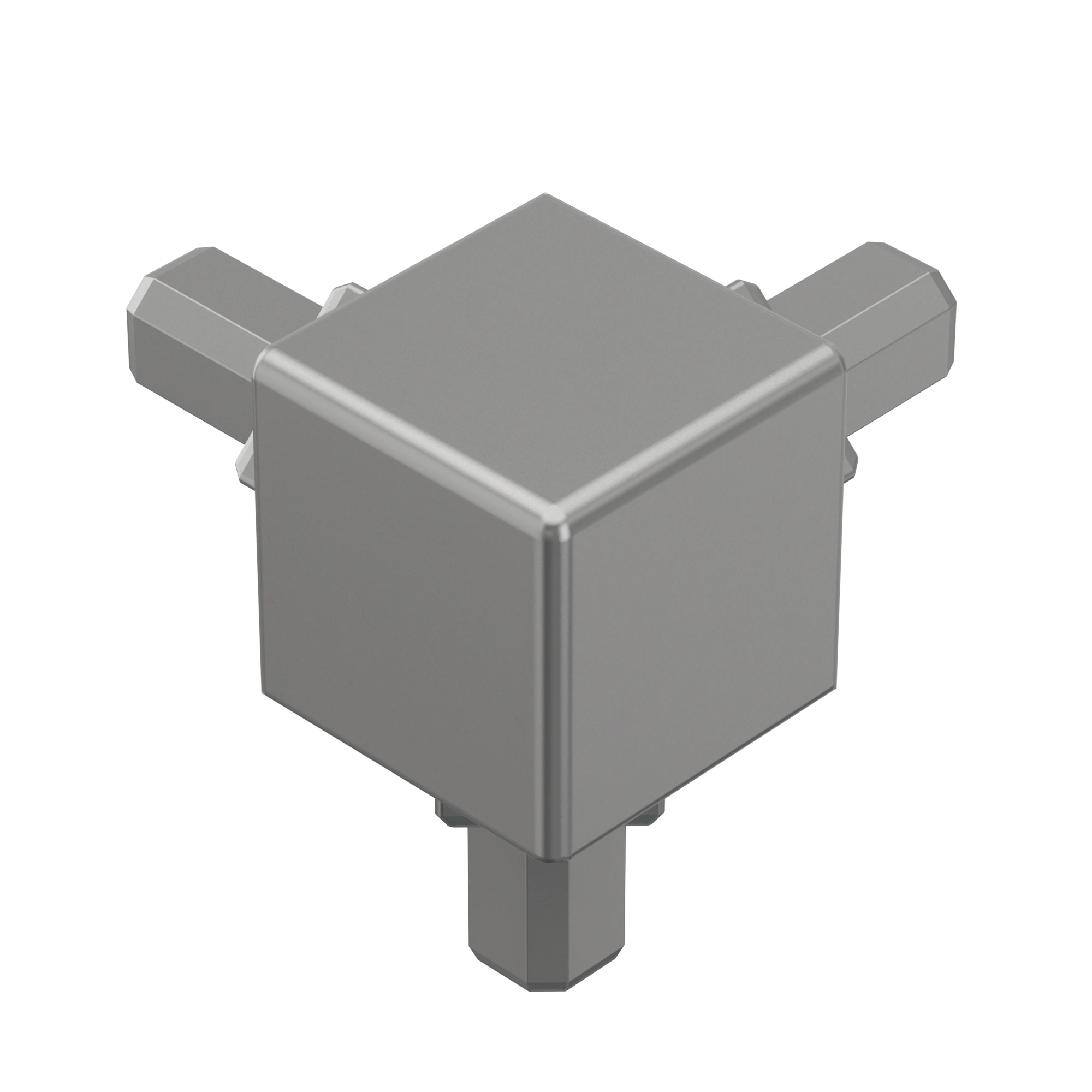

M 1683.39Knuckle90°for 3 × M 1625L 48 × W 48 × H 48 mm
M 1689.39Knuckle135°for M 1622/M 1629L 65 × W 48 × H 30 mm

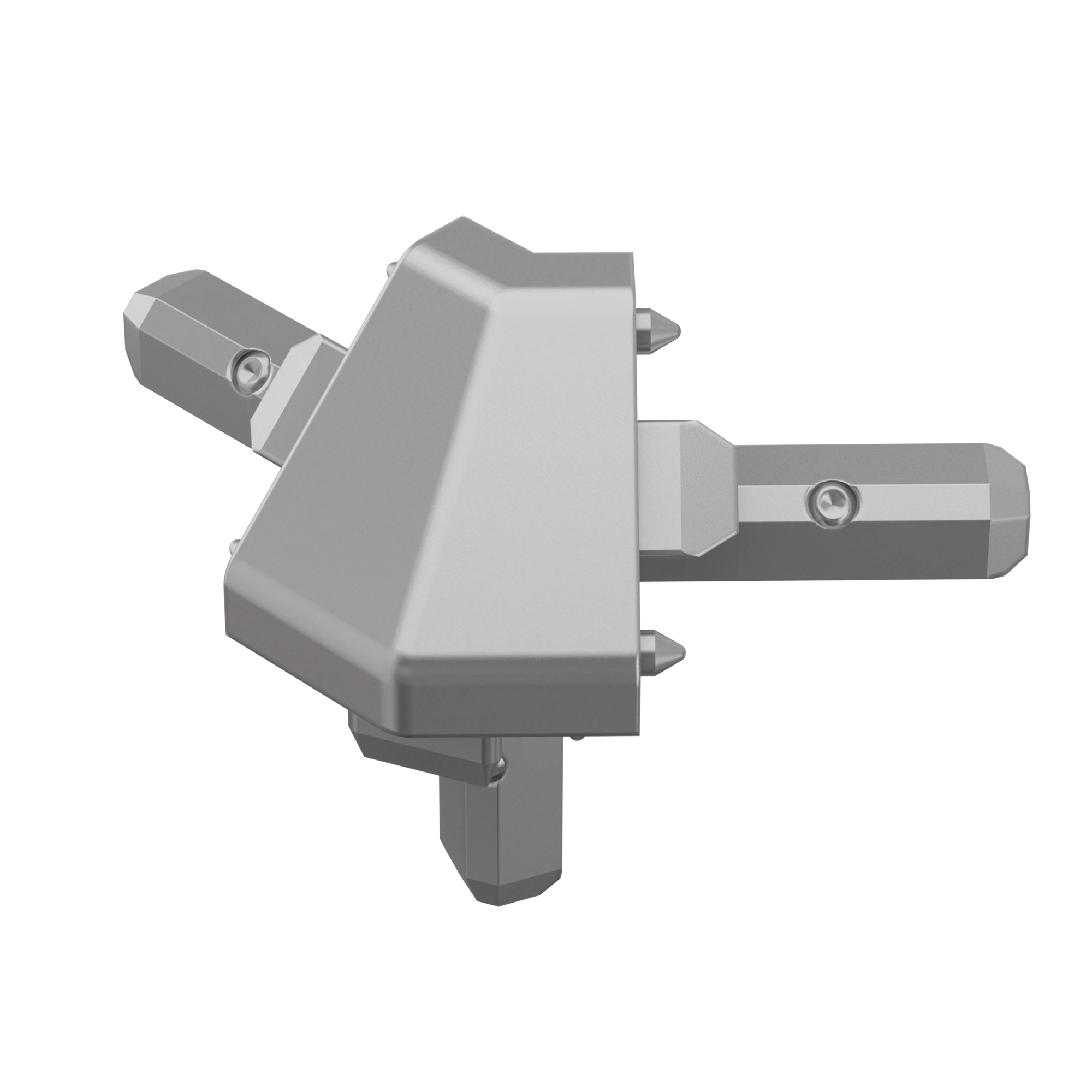

M 1689.41Knuckle135°for M 1622/M 1629L 65 × W 48 × H 30 mm

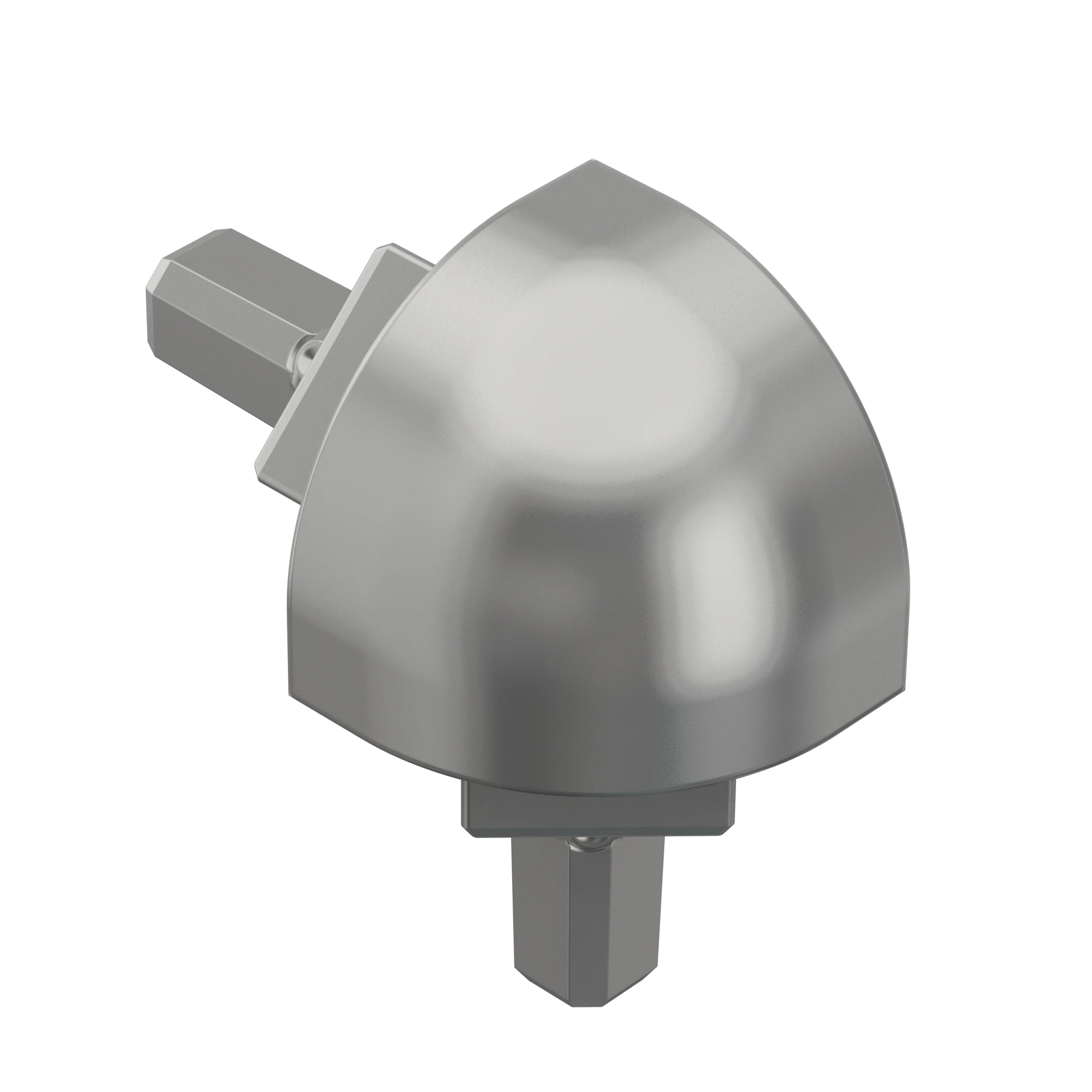

M 1692.39Knuckle90°for 2 × M 1620L 48 × W 48 × H 22 mm

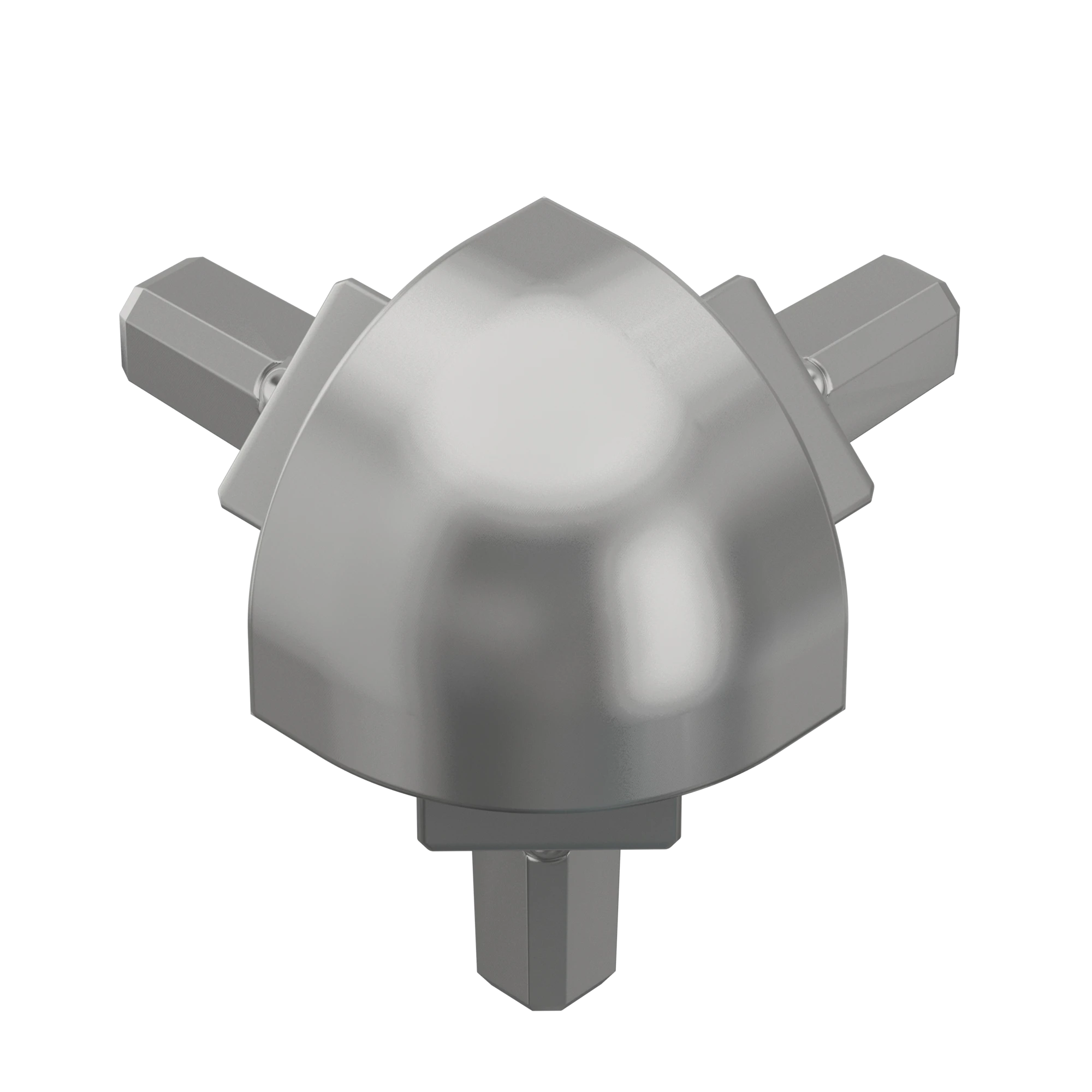

M 1693.39Knuckle90°for 3 × M 1620L 48 × W 48 × H 48 mm

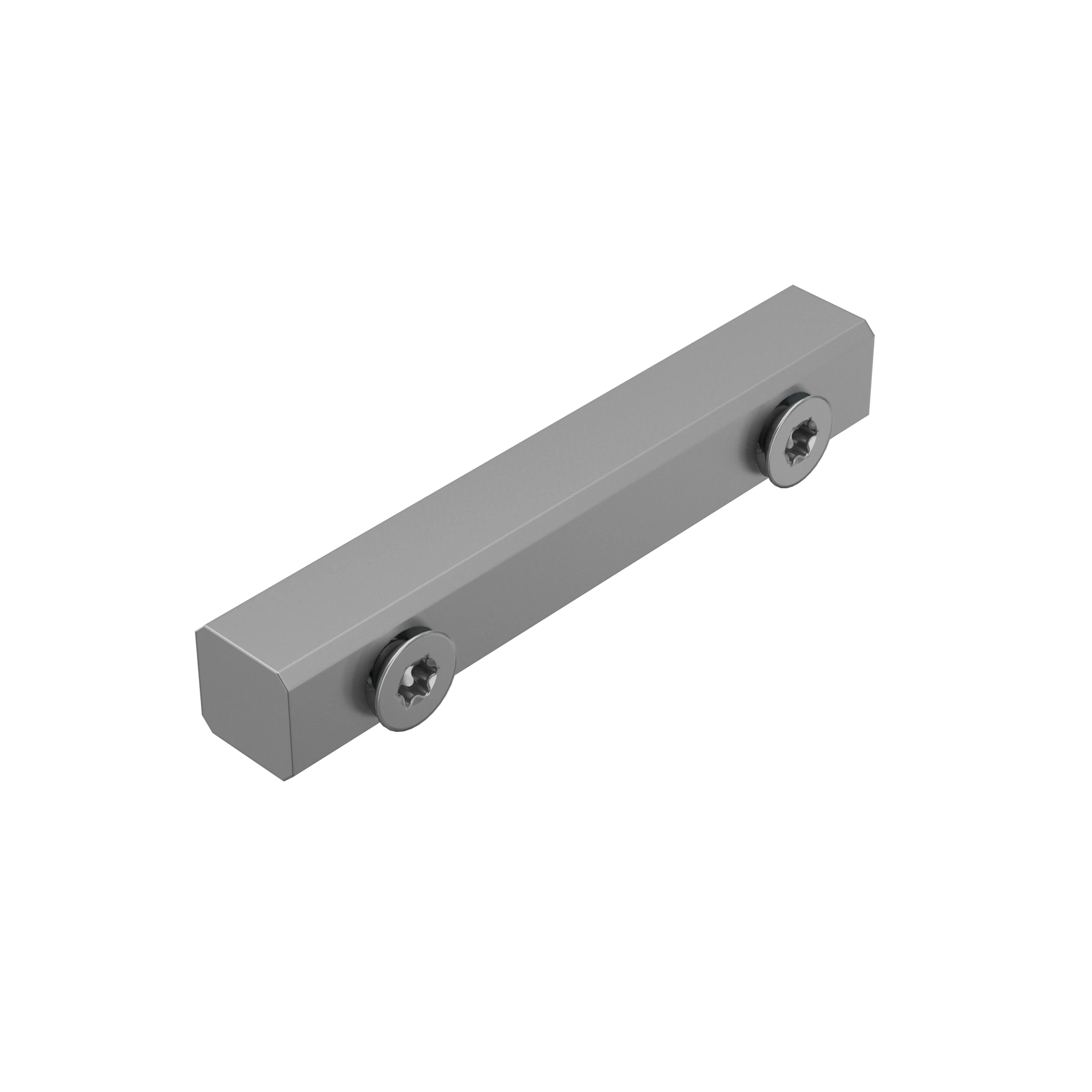

S 1155.00Internal connectorstraightfor extrusions 32 mmL 90 × W 14 × H 14 mm

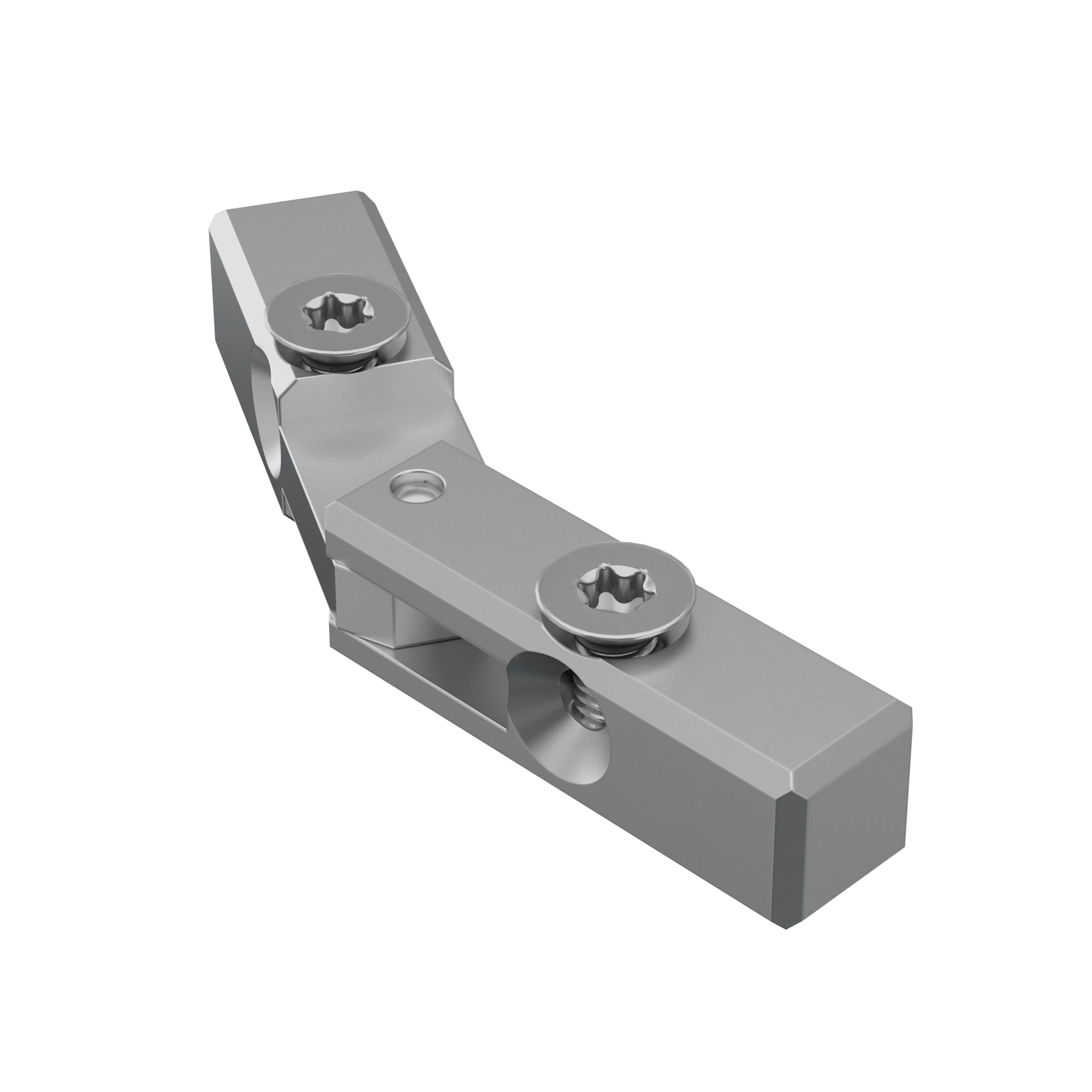

S 1156.00Internal corner connector90°-270°for extrusions 32 mmL 86 × W 14 × H 14 mm

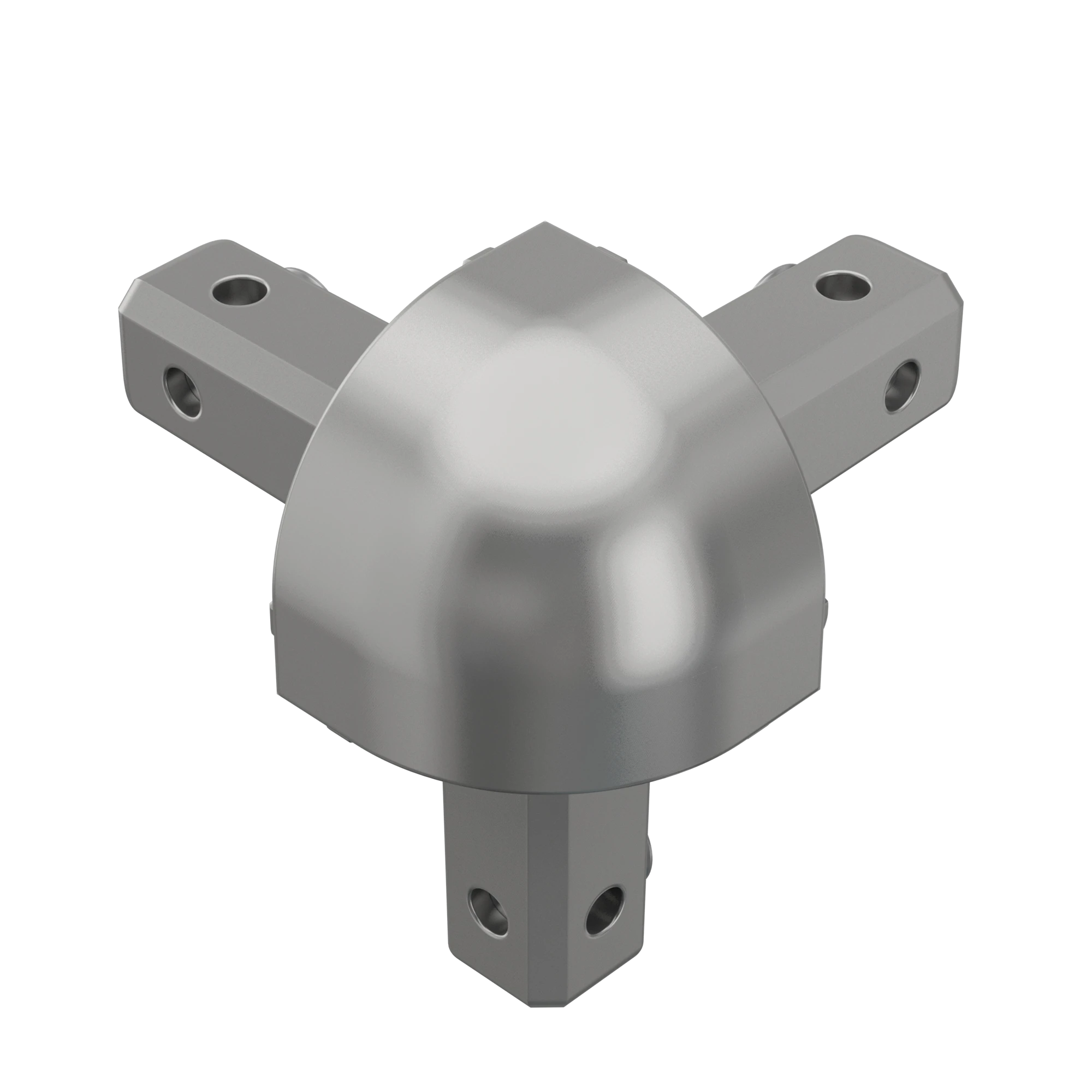

S 1170.39Knuckle90°for 3 × S 1105L 72 × W 72 × H 72 mm

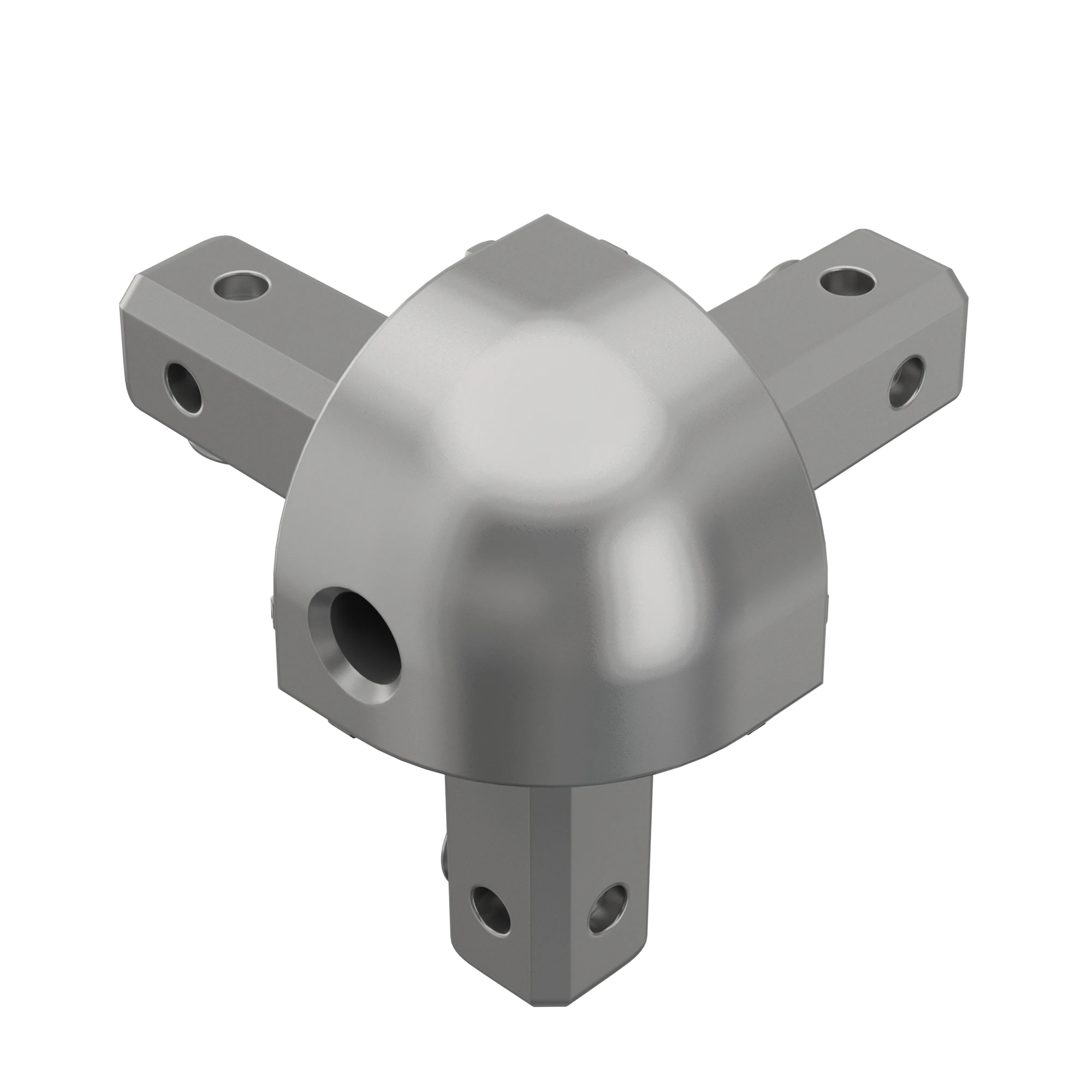

S 1171.39Knuckle90°, M10for 3 × S 1105L 72 × W 72 × H 72 mm

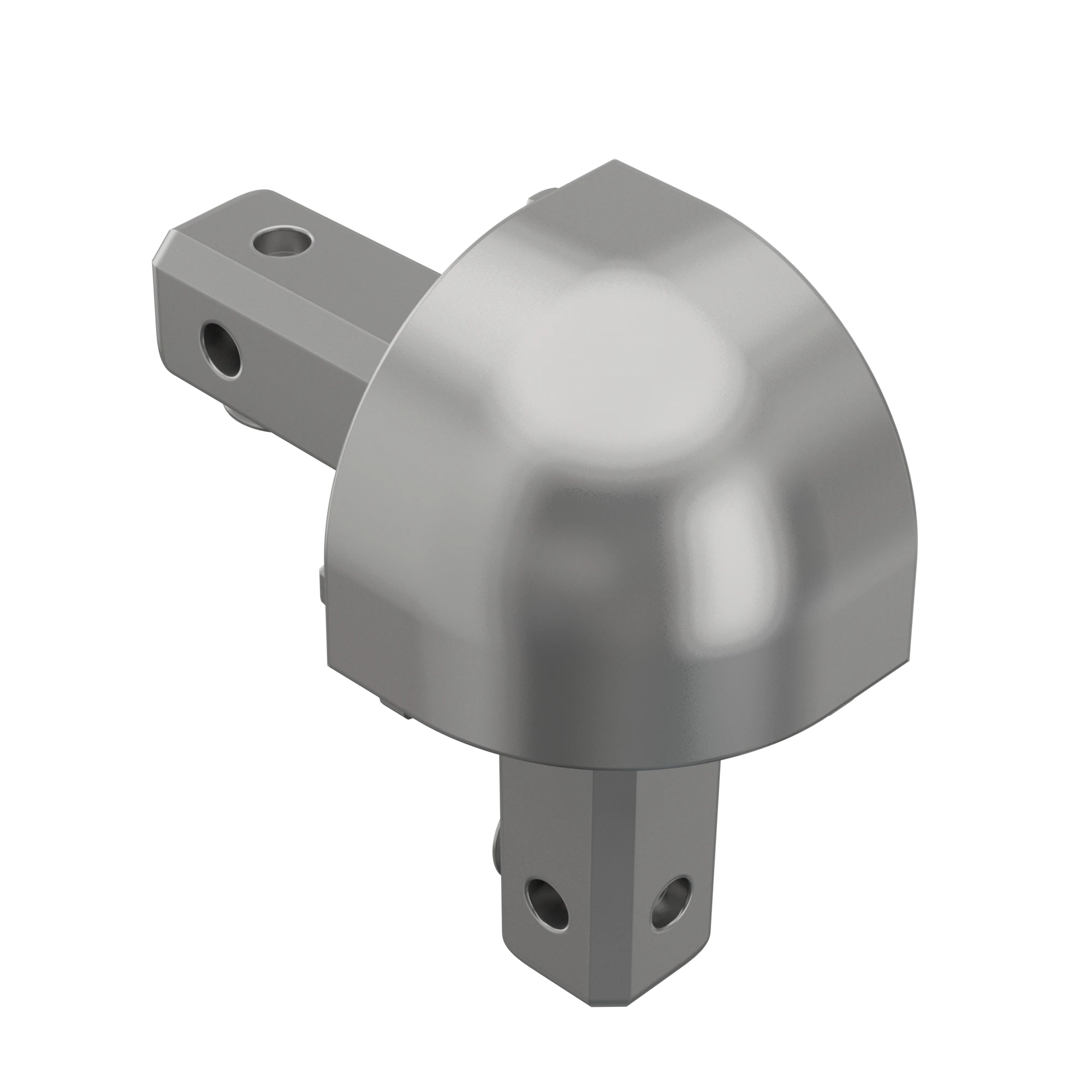

S 1173.39Knuckle90°for 2 × S 1105L 72 × W 72 × H 32 mm

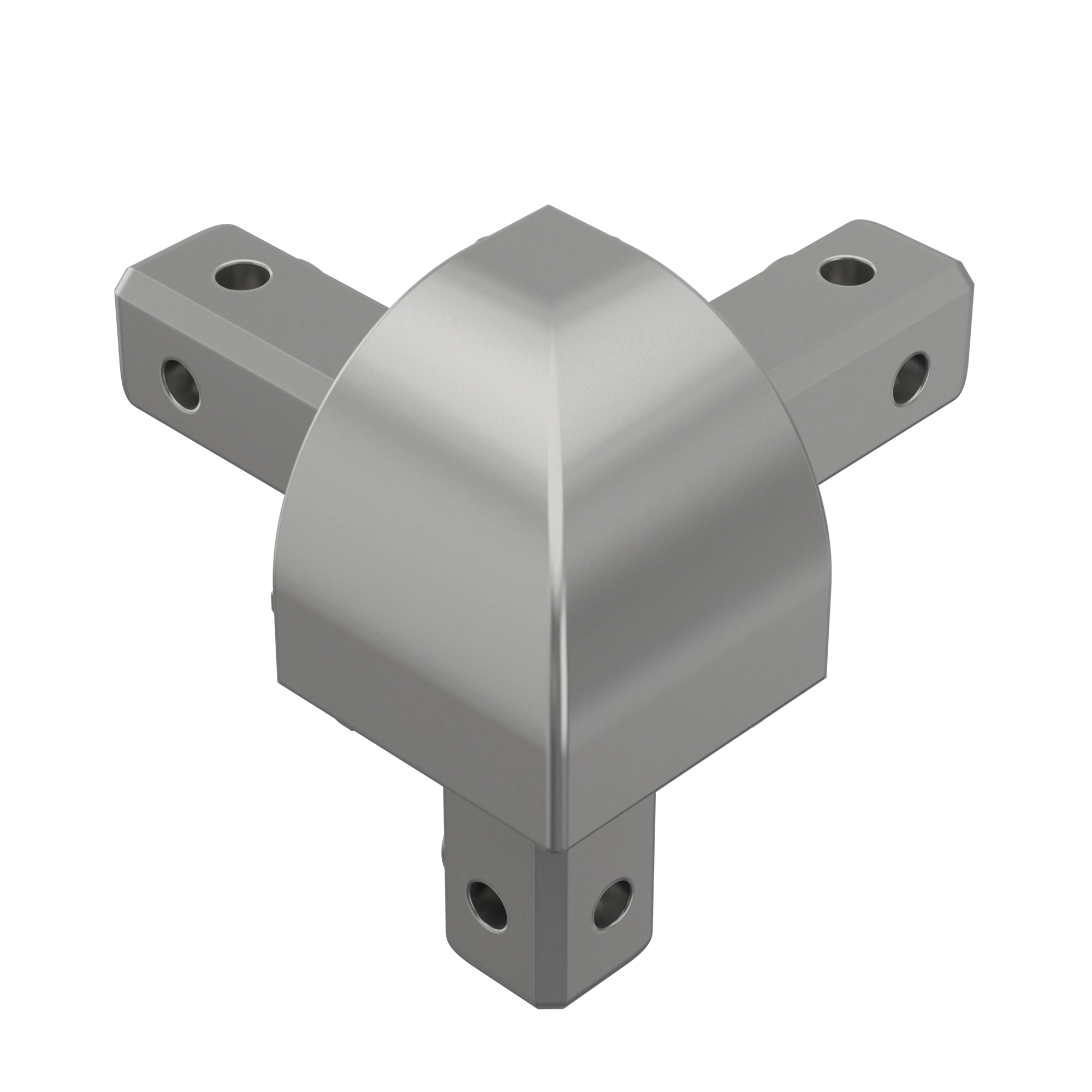

S 1175.39Knuckle90°for S 1105/S 1125L 72 × W 72 × H 72 mm
Holders and screws
9

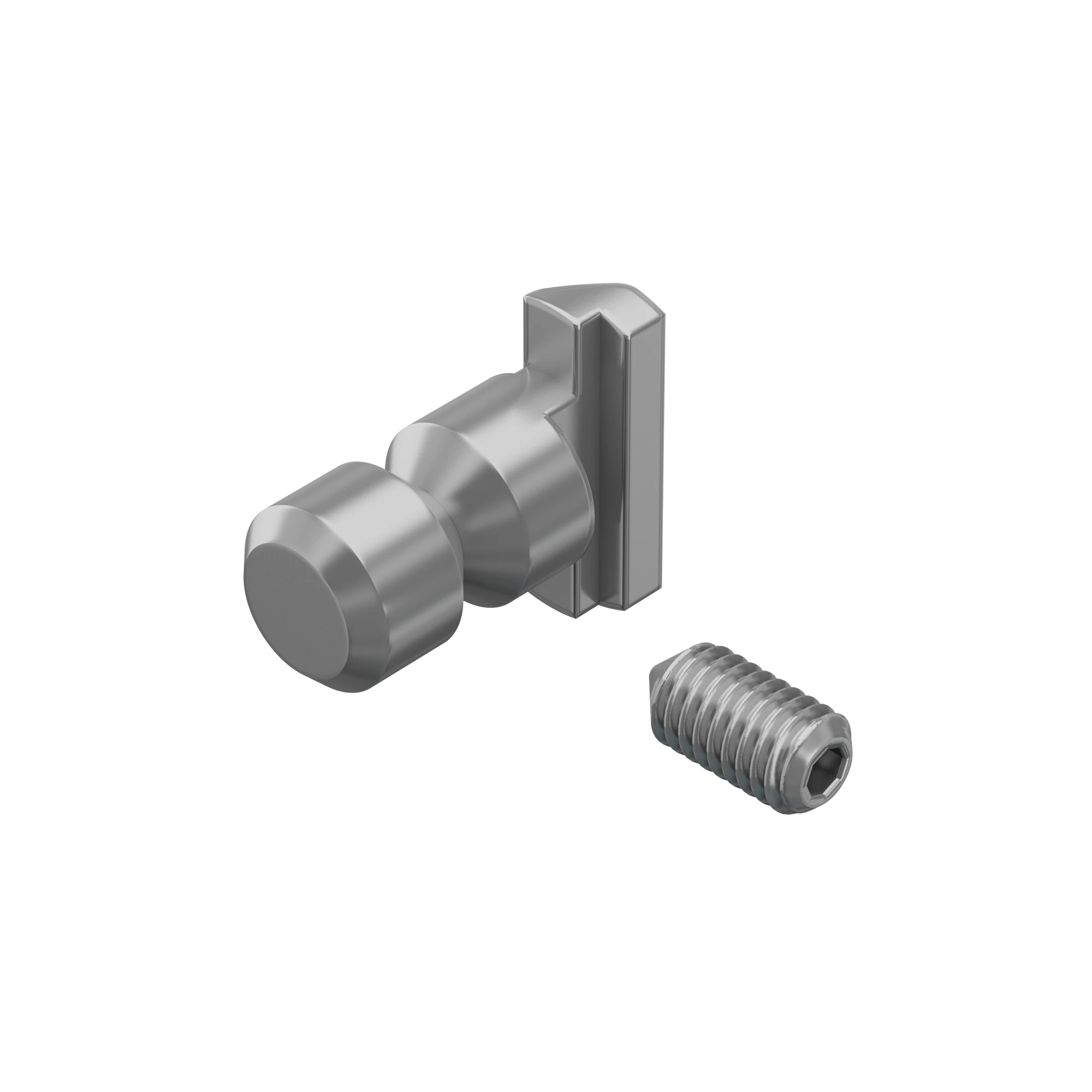

M 1142.37Hammerhead boltfor M 1140L 24 × W 20 × H 11 mm

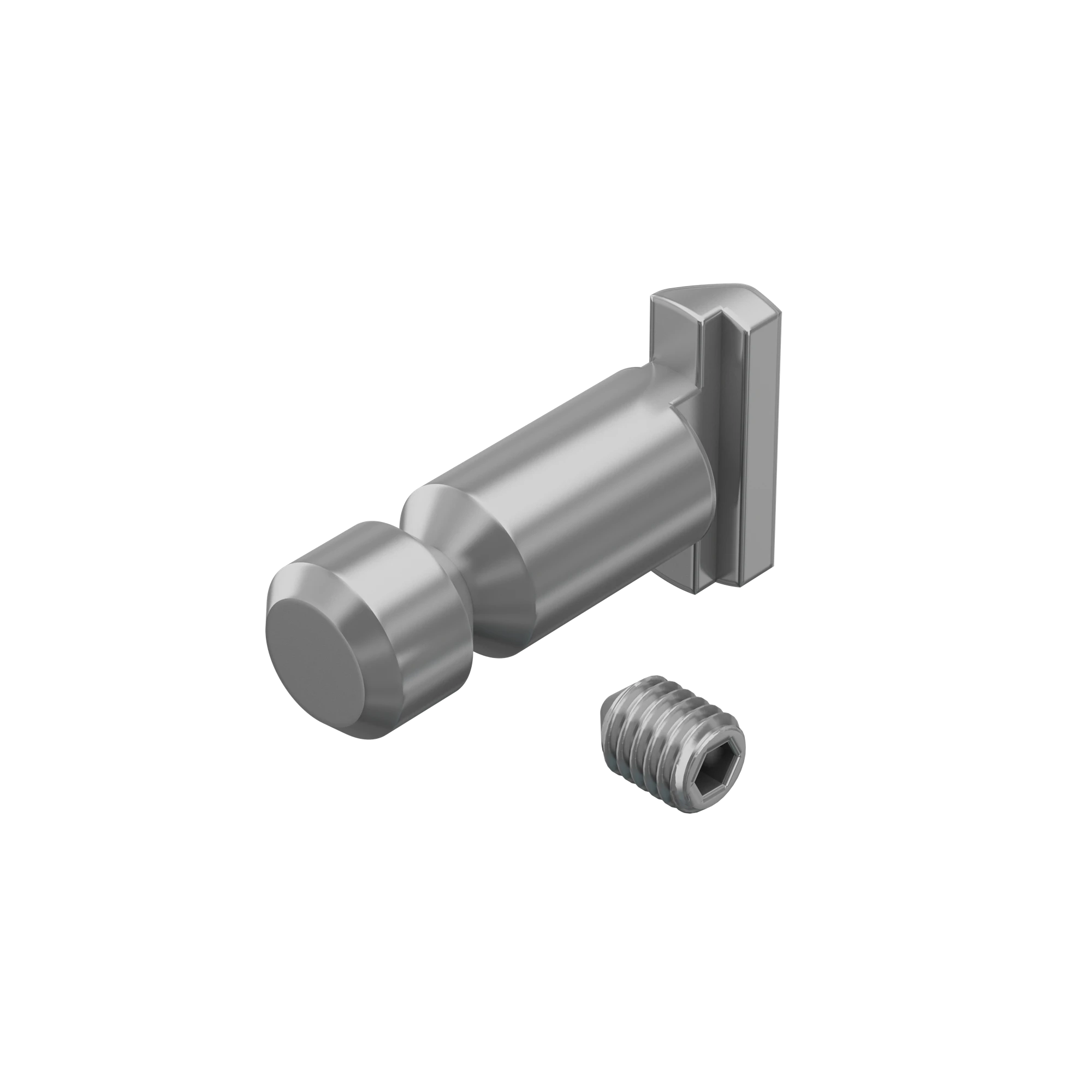

M 1145.37Hammerhead boltfor M 1140L 31 × W 20 × H 11 mm

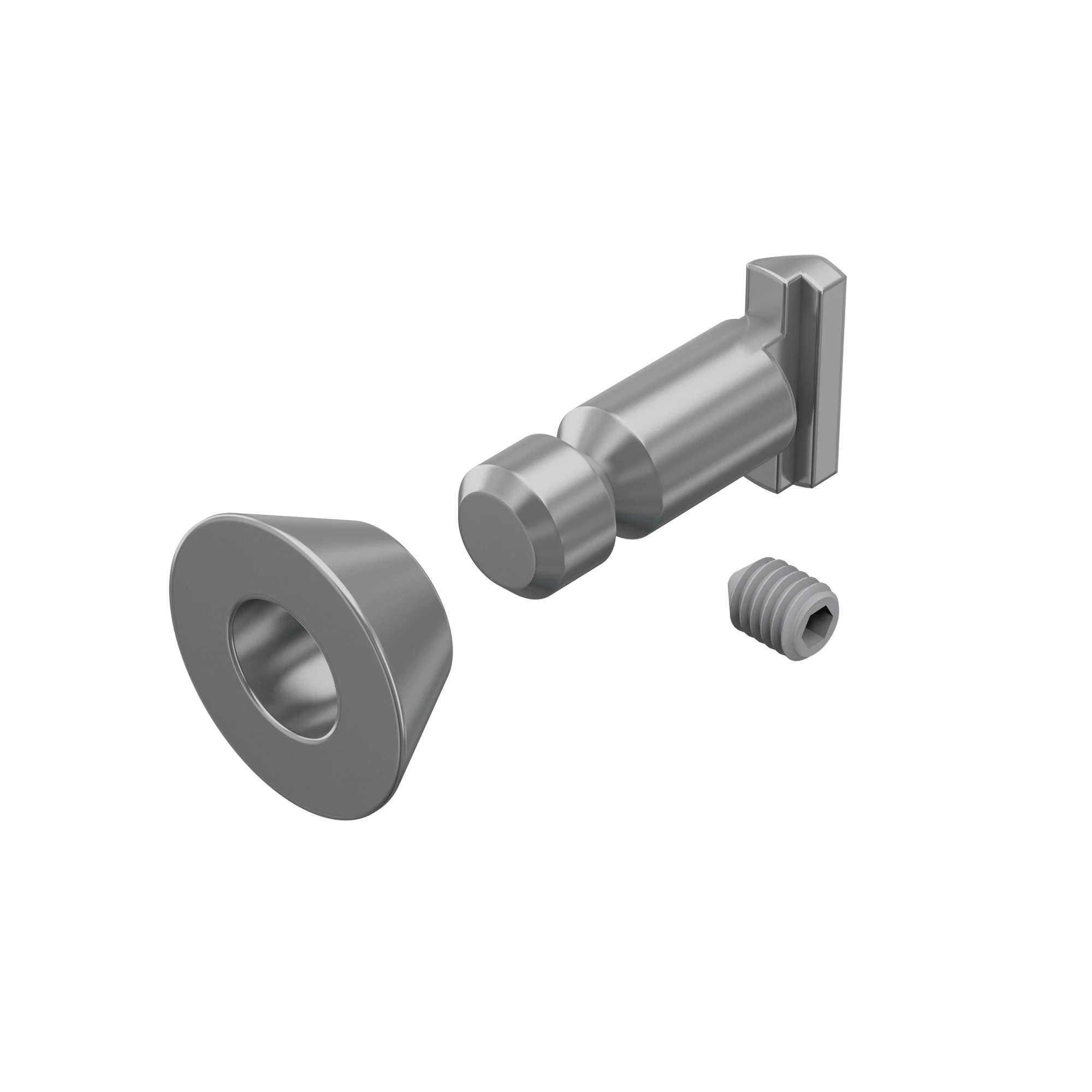

M 1147.37Fixing setfor M 1140L 31 × W 24 × H 10 mm

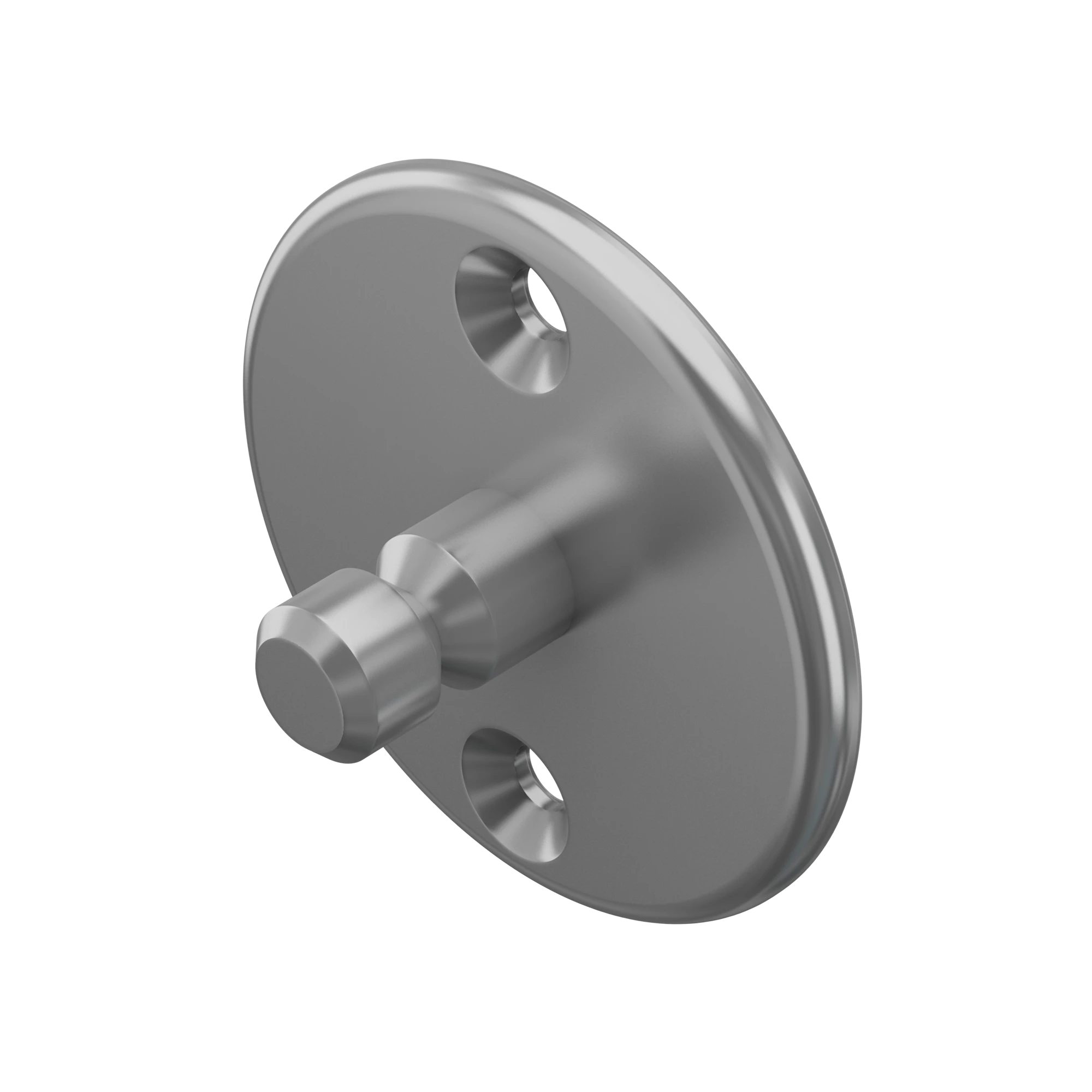

M 1148.37Wall retainerwall fixingfor M 1140L 29 × W 54 × H 54 mm

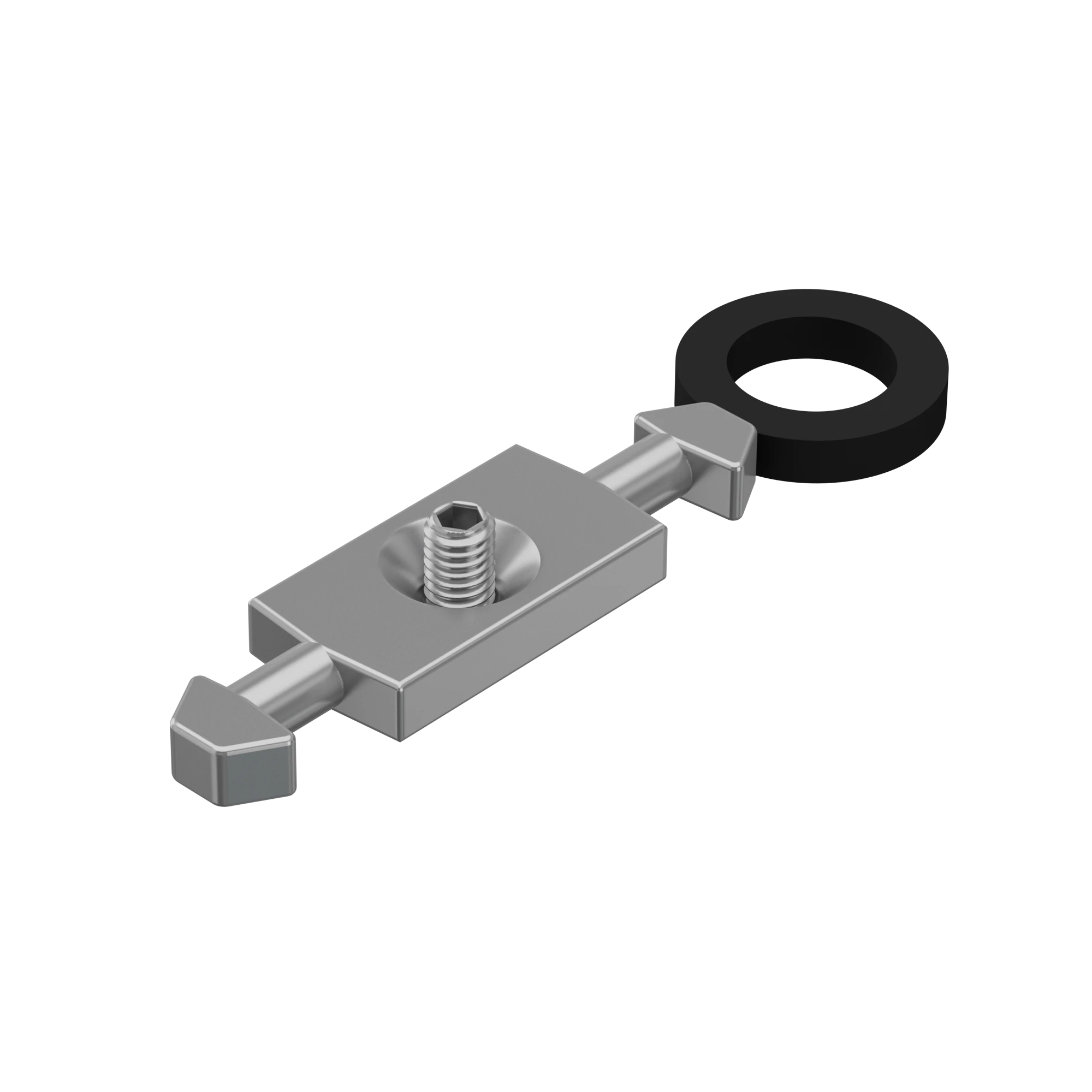

M 1610.37Clamping elementfor M 1602L 43 × W 12 × H 4 mm

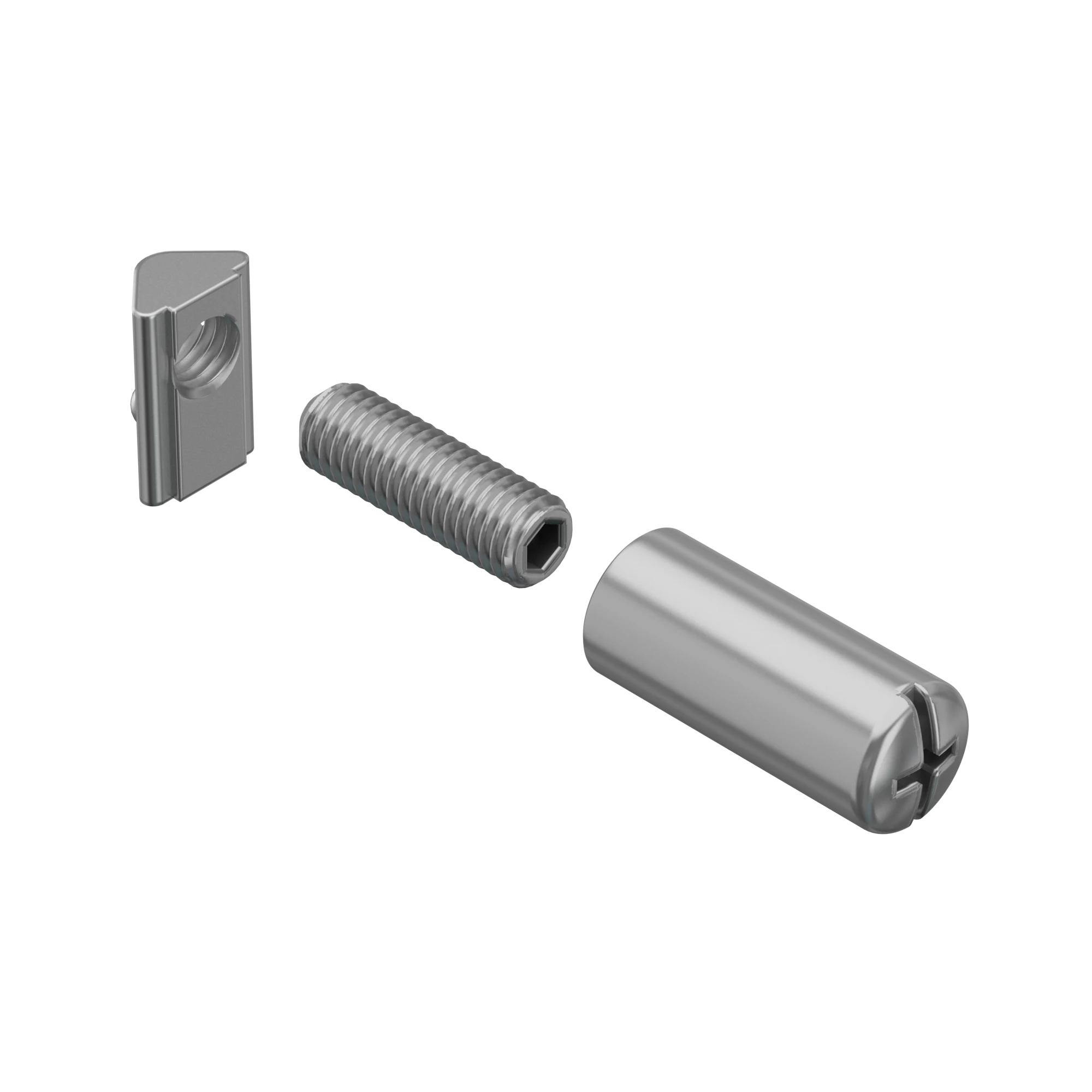

M 1671.37Bracketwith M 1671/G (M5)L 19 × W 8 × H 15 mm

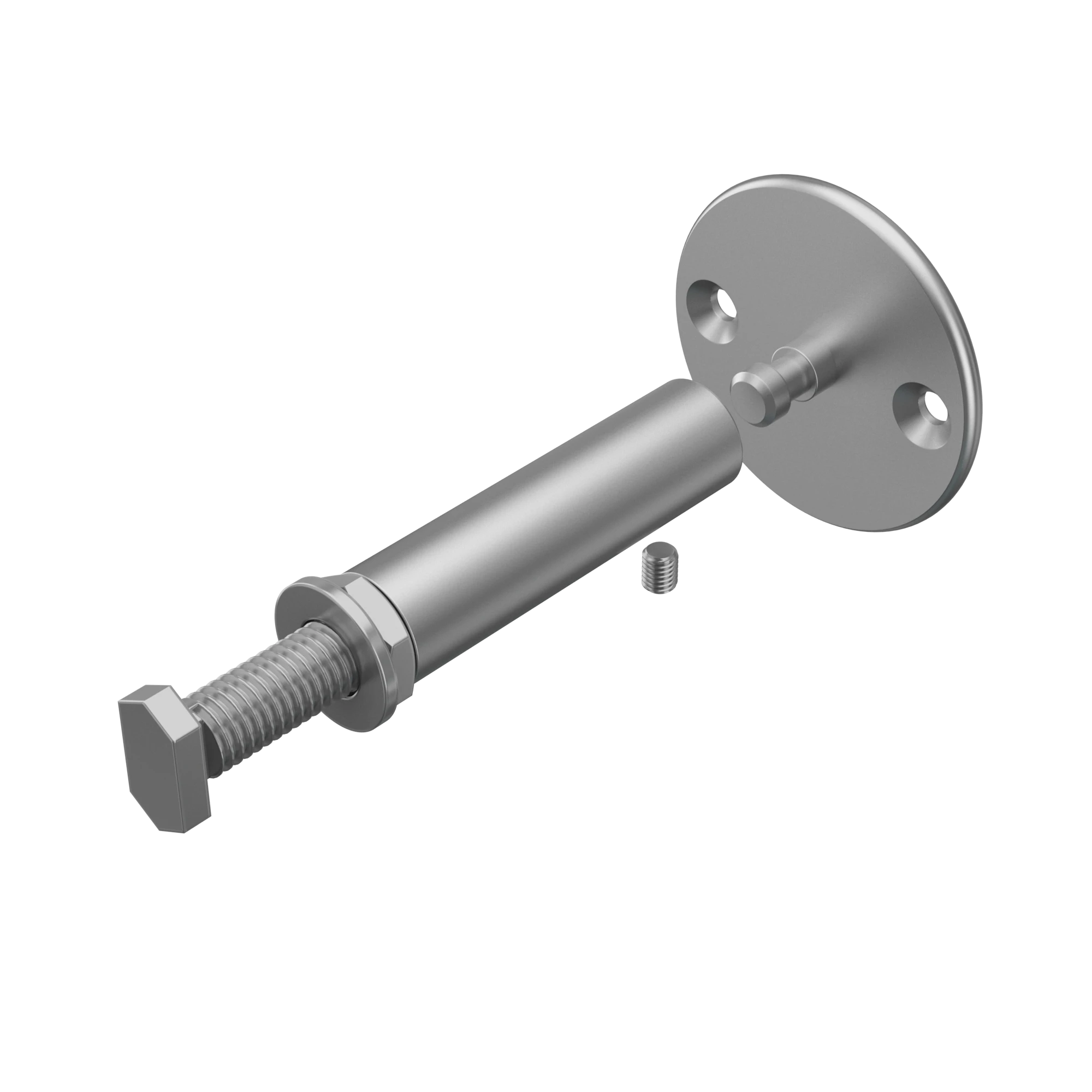

S 4330.01Distance pieceadjustableL 70 × W 54 × H 54 mm
V 2220.35Bracketwith V 2220/G (M4)L 28 × W 17 × H 12 mm

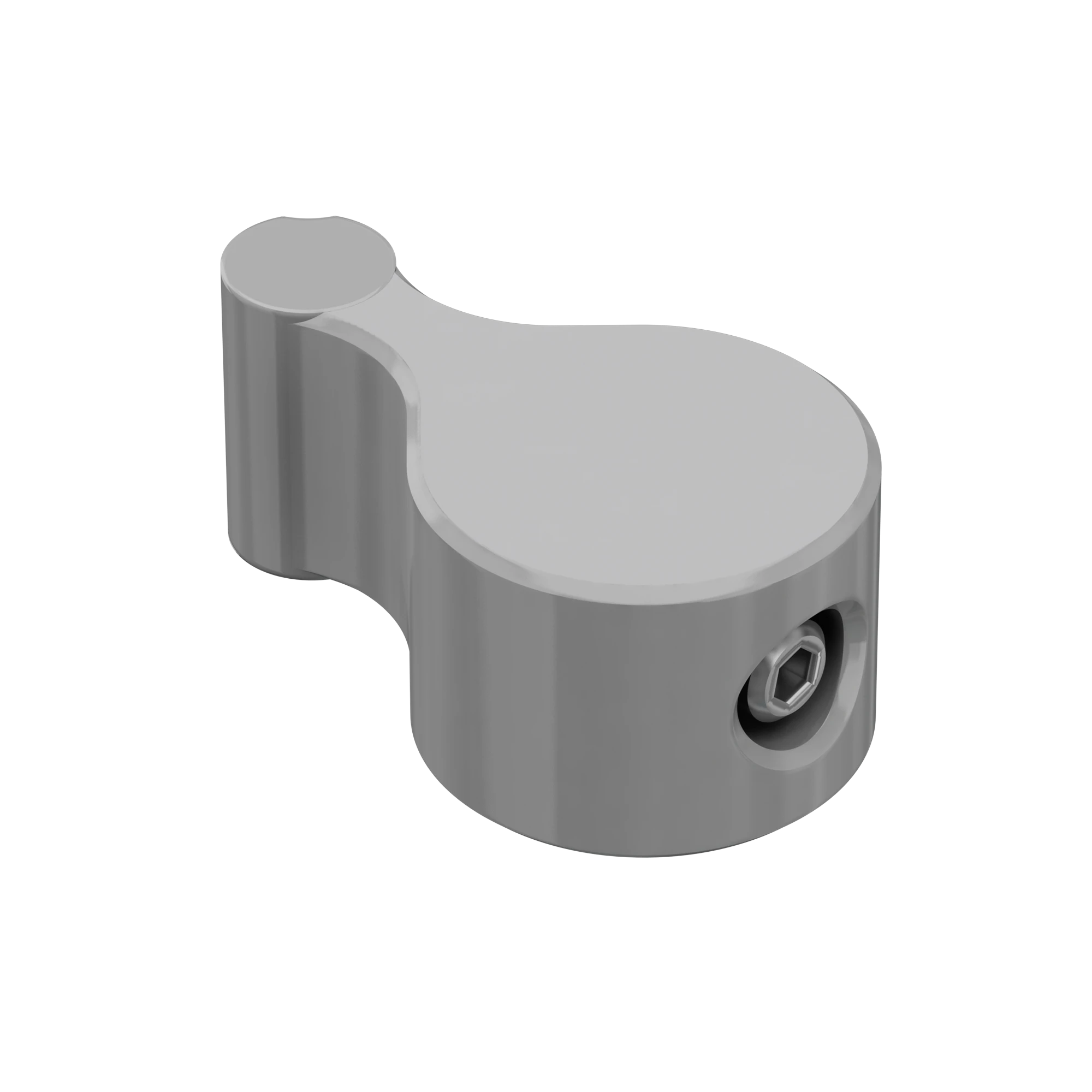

V 2220.36Bracketwith V 2220/G (M4)L 28 × W 17 × H 12 mm
Tools
2

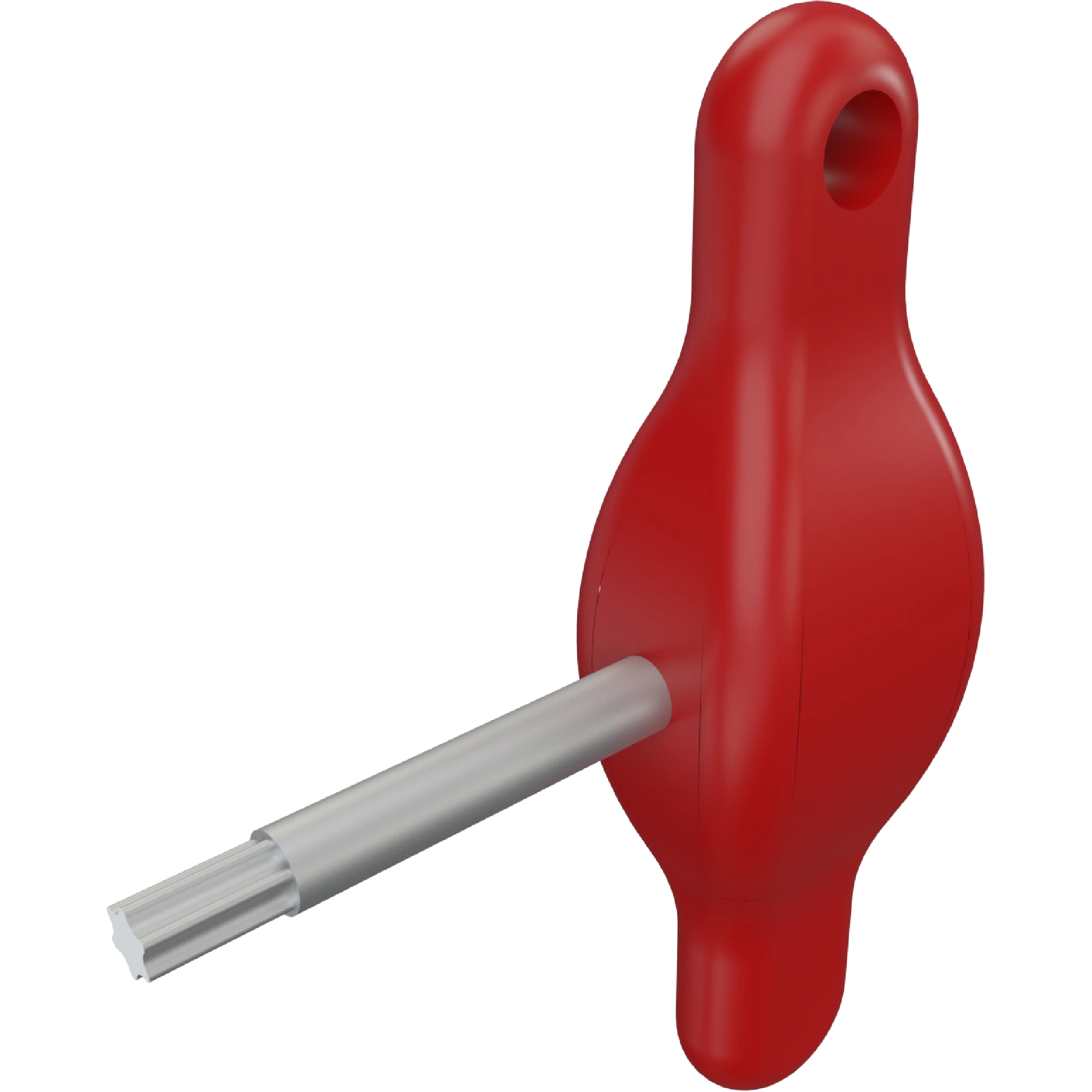

V 2505.90ScrewdriverA/F 2 mmfor V 2220L 95 × W 41 × H 8 mm

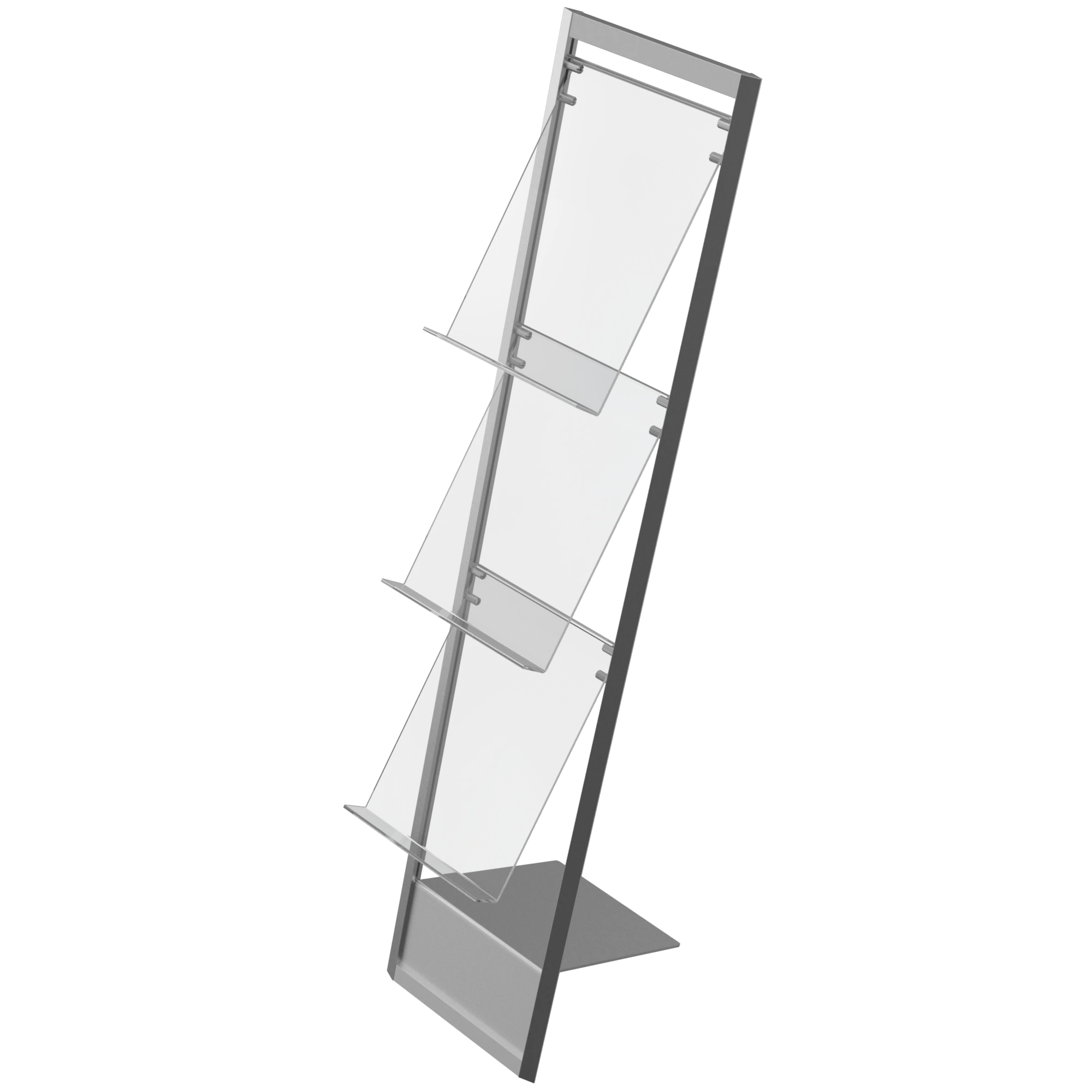

L 265 × W 280 × H 1200 mm3 × DIN A4L 265 × W 280 × H 1200 mm
Products
3

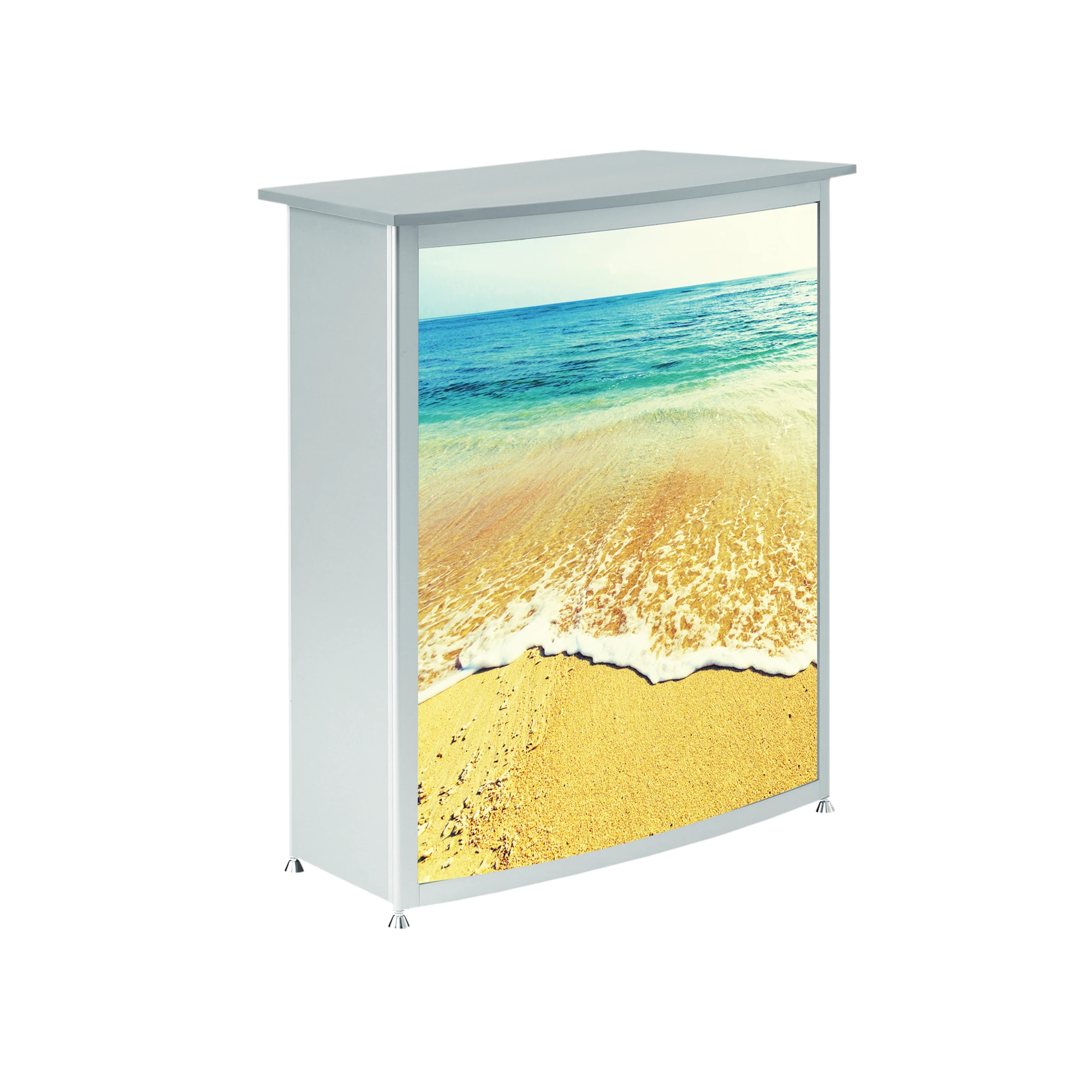

Q 400.31Counternot illuminatedW 902 × H 965 × D 379 mm

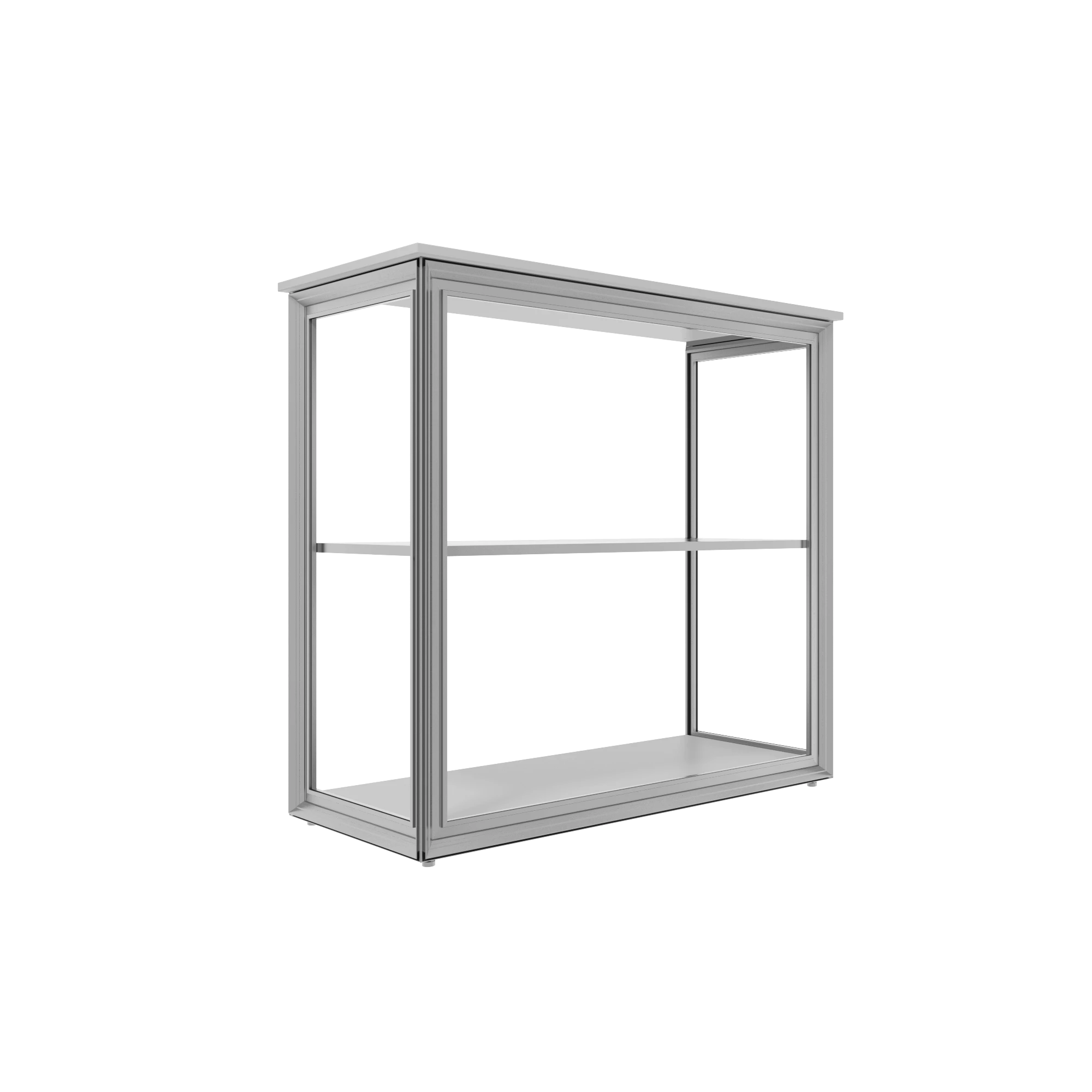

Q 800.31Counternot illuminatedW 910 × H 912 × D 446 mm

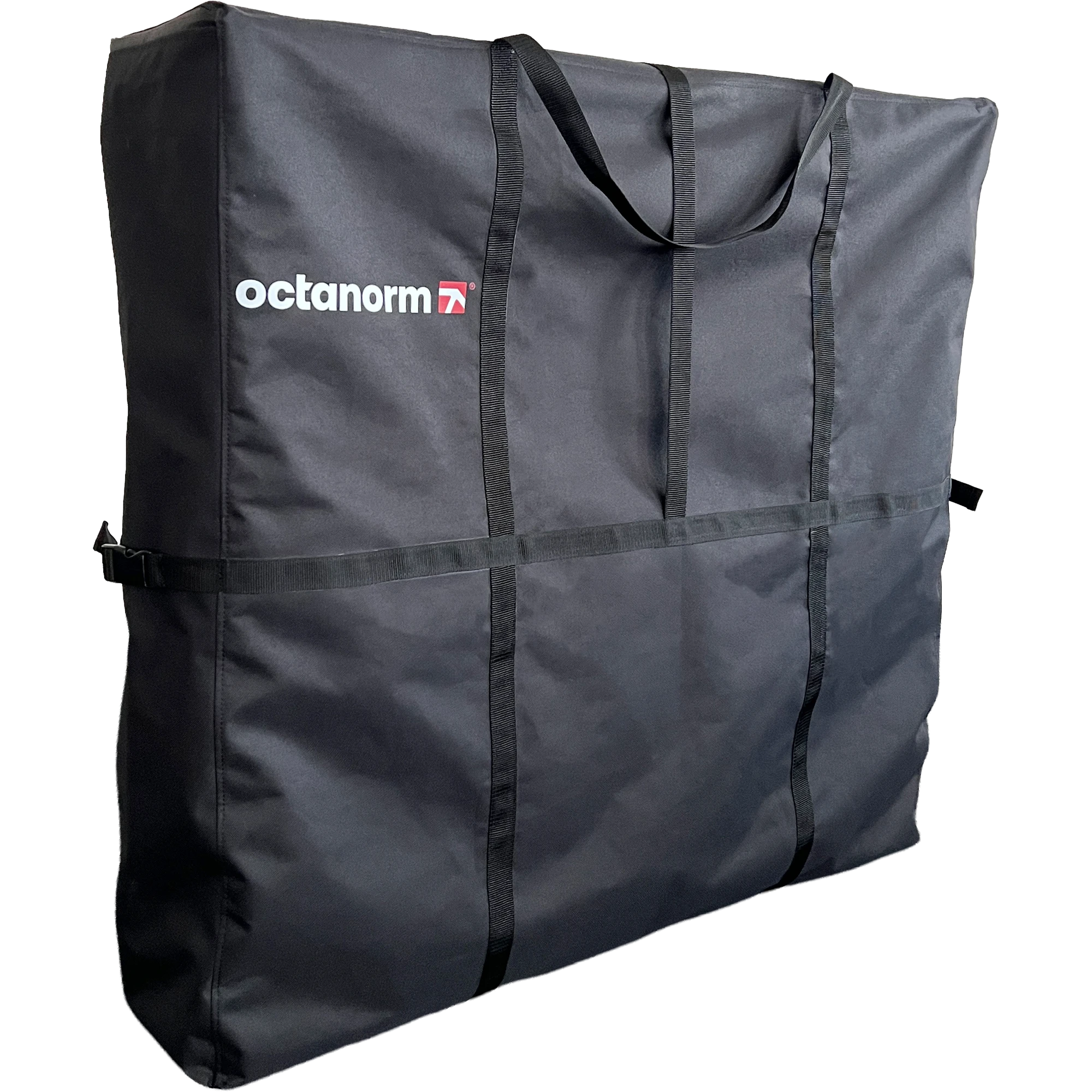

Q 899.90Transport bagfor Q 800/OL C800L 1030 × W 210 × H 990 mm
